Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Engine Cooling >> Secondary Cooling Fan Temperature Switch

Secondary Cooling Fan Temperature Switch

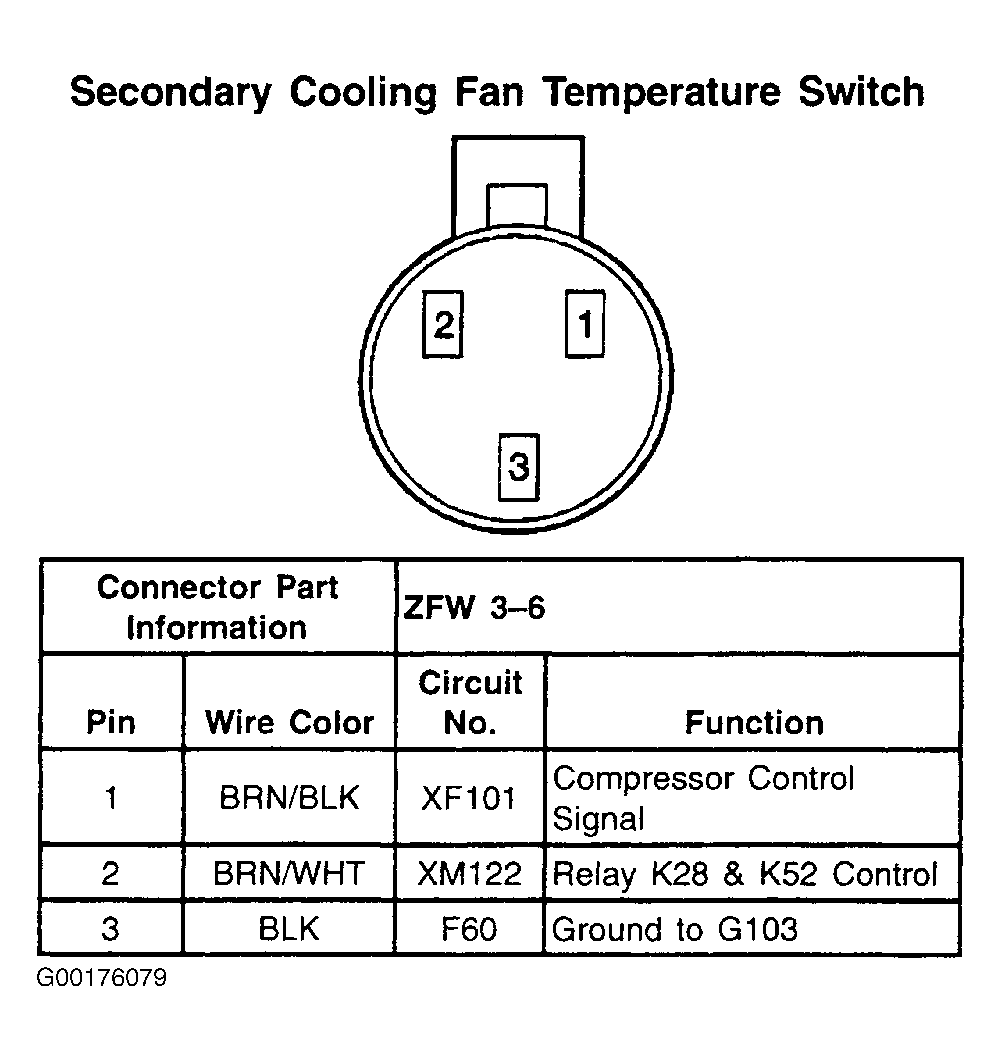

Fig 1: Secondary Cooling Fan Temperature Switch - 3-Pin Connector

G00176079

Courtesy of GENERAL MOTORS CORP.
