Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Lighting Systems >> Front Side Door Lock Switch (Left Hand)

Front Side Door Lock Switch (Left Hand)

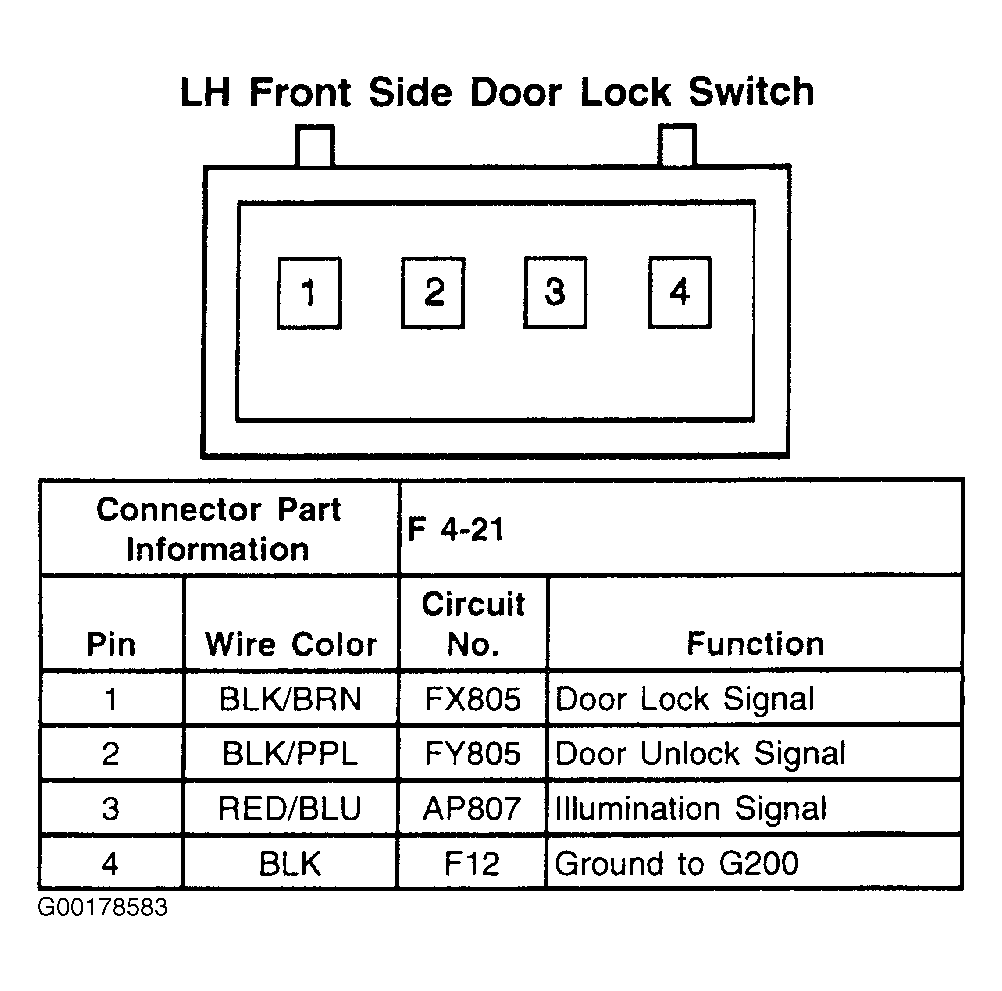

Fig 1: Front Side Door Lock Switch (Left Hand) - 4-Pin Connector

G00178583

Courtesy of GENERAL MOTORS CORP.
