Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Lighting Systems >> Headlamp Automatic Control Ambient Light Sensor

Headlamp Automatic Control Ambient Light Sensor

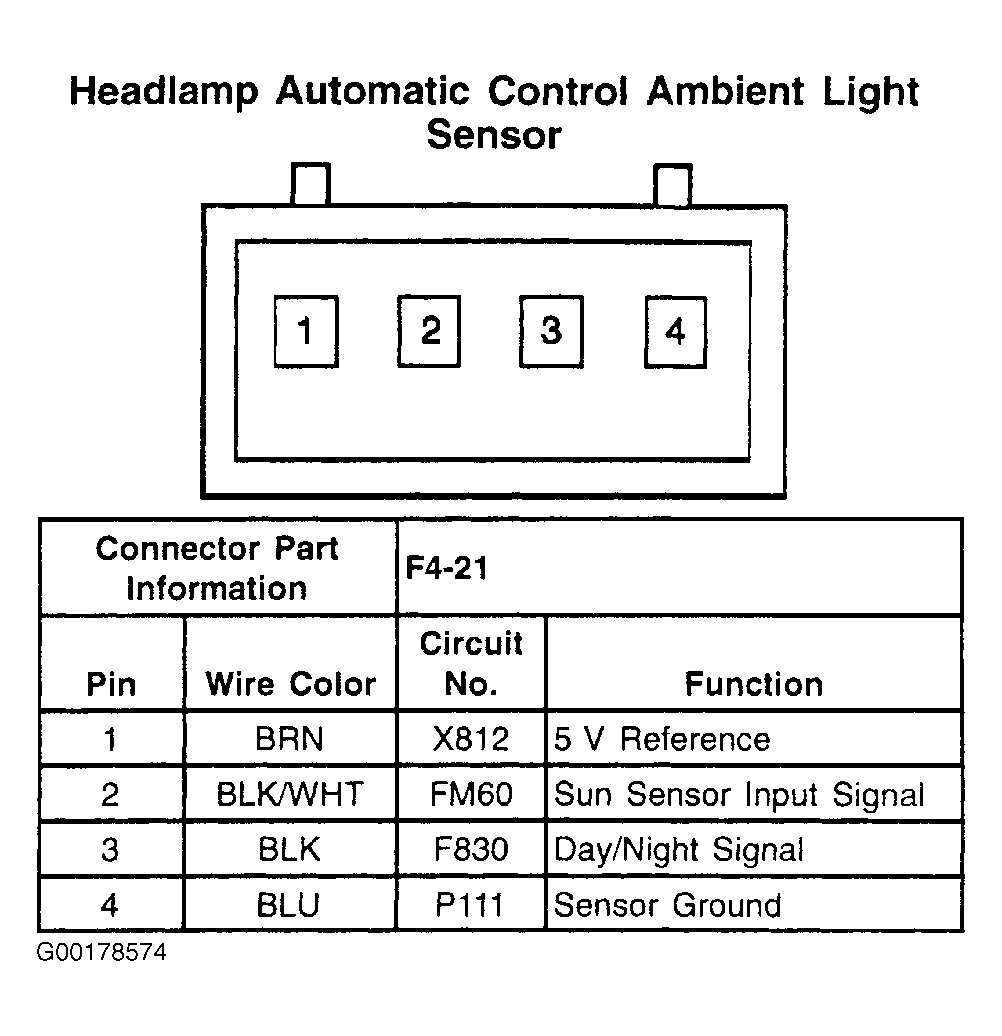

Fig 1: Headlamp Automatic Control Ambient Light Sensor - 4-Pin Connector

G00178574

Courtesy of GENERAL MOTORS CORP.
