Low Beam Relay K131
Low Beam Relay K131

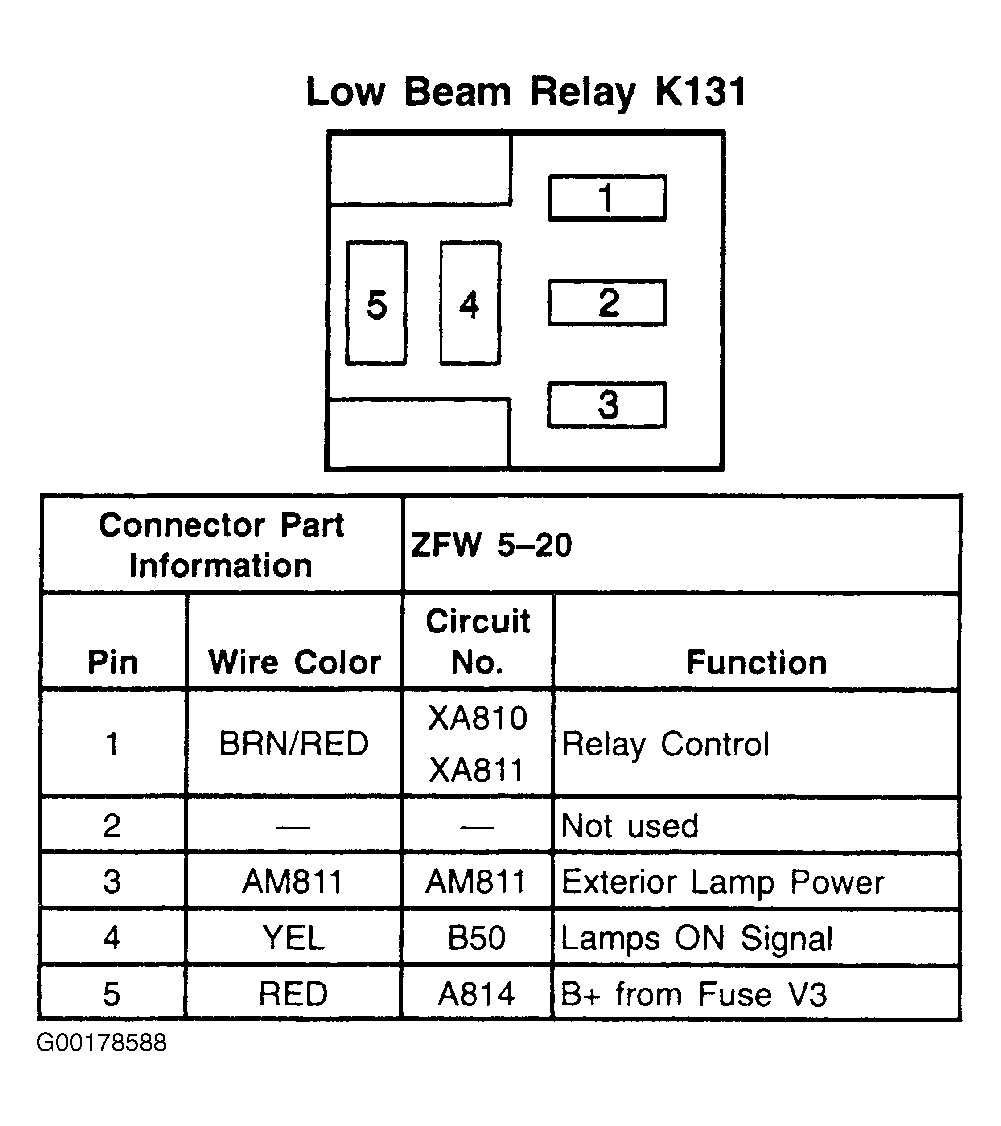

Fig 1: Low Beam Relay K131 - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
