Connector Terminal Identification
>>
Power Doors
>>
Door Lock Relay K135

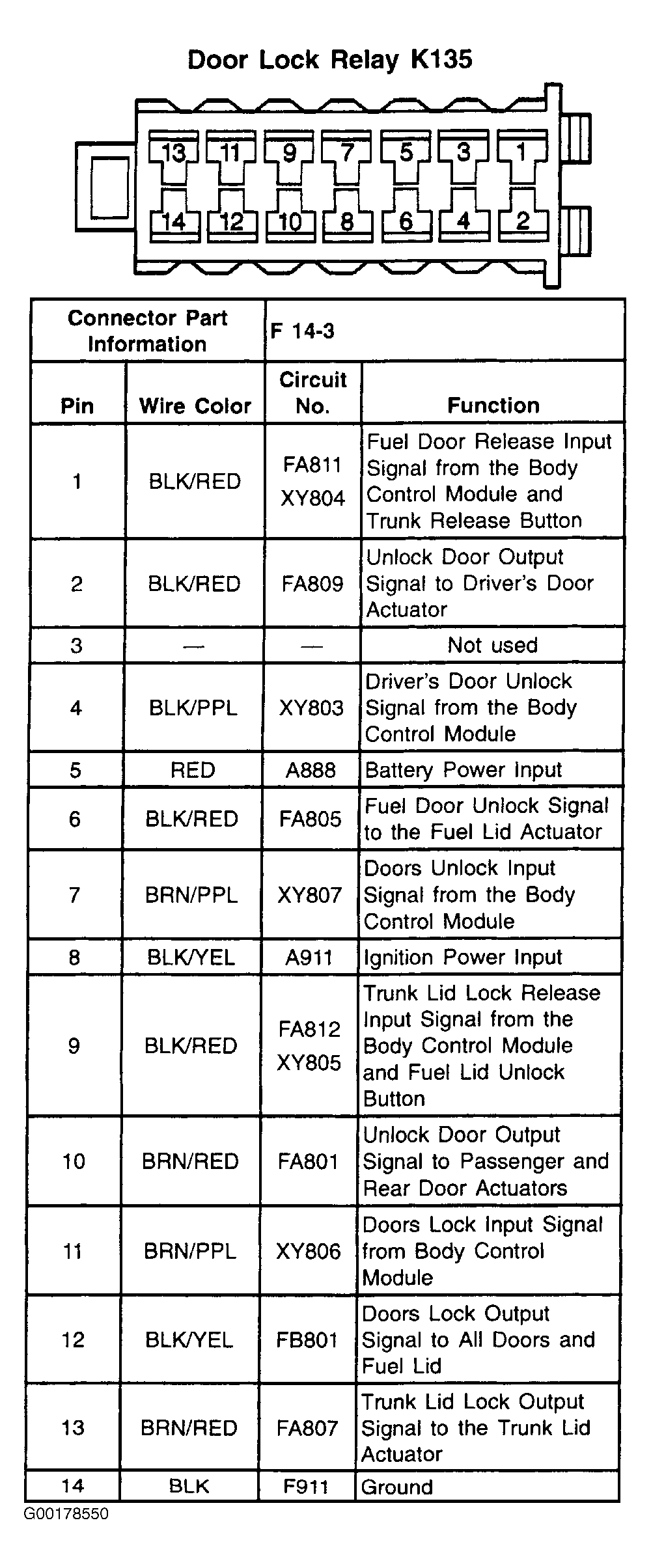

Door Lock Relay K135
NOTE:
See
Figure
for connector identification.
