Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Power Doors >> Front Side Door Window Switch (Left Hand)

Front Side Door Window Switch (Left Hand)

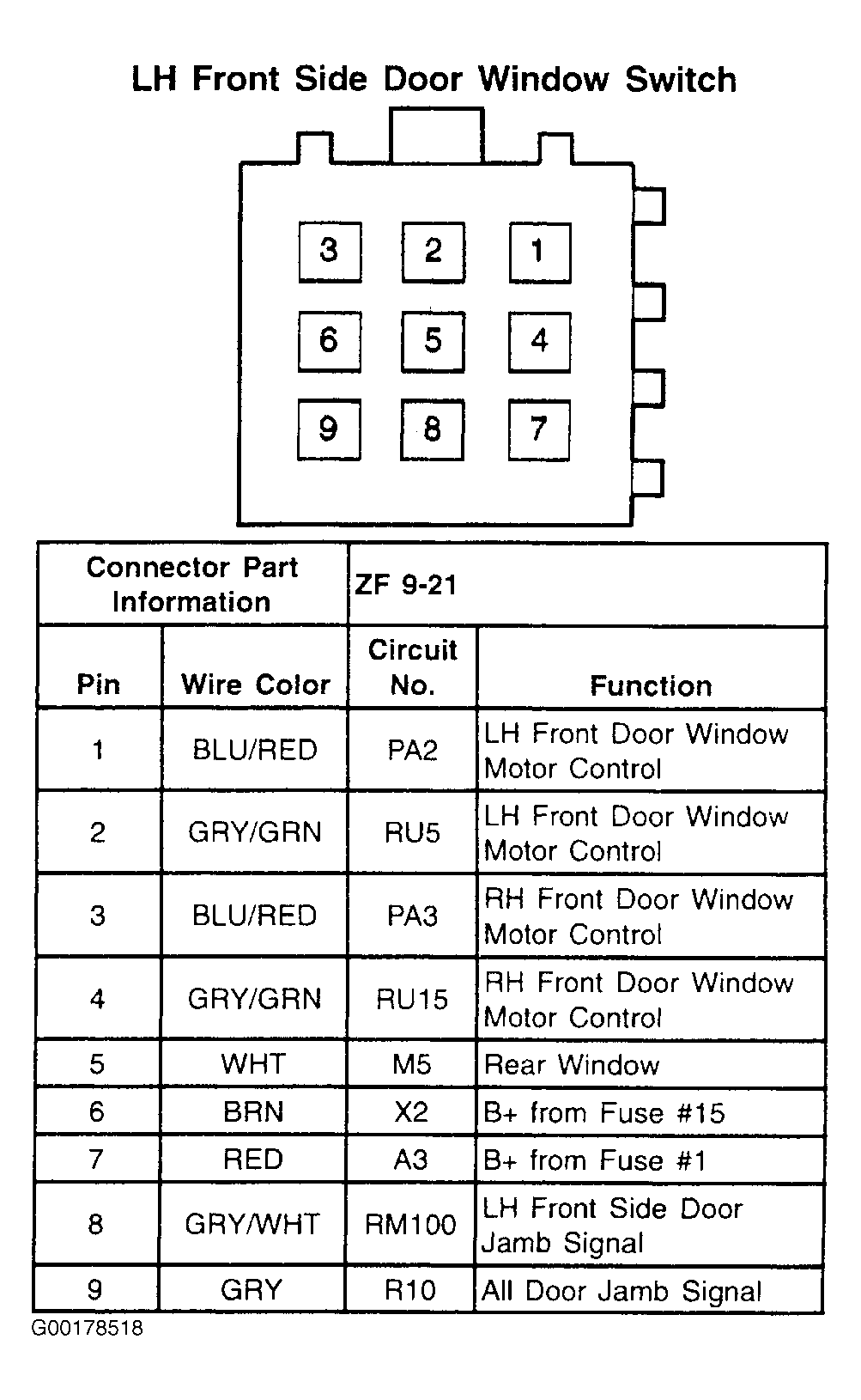

Fig 1: Front Side Door Window Switch (Left Hand) - 9-Pin Connector

G00178518

Courtesy of GENERAL MOTORS CORP.
