Driver Seat Adjuster Memory Module C1

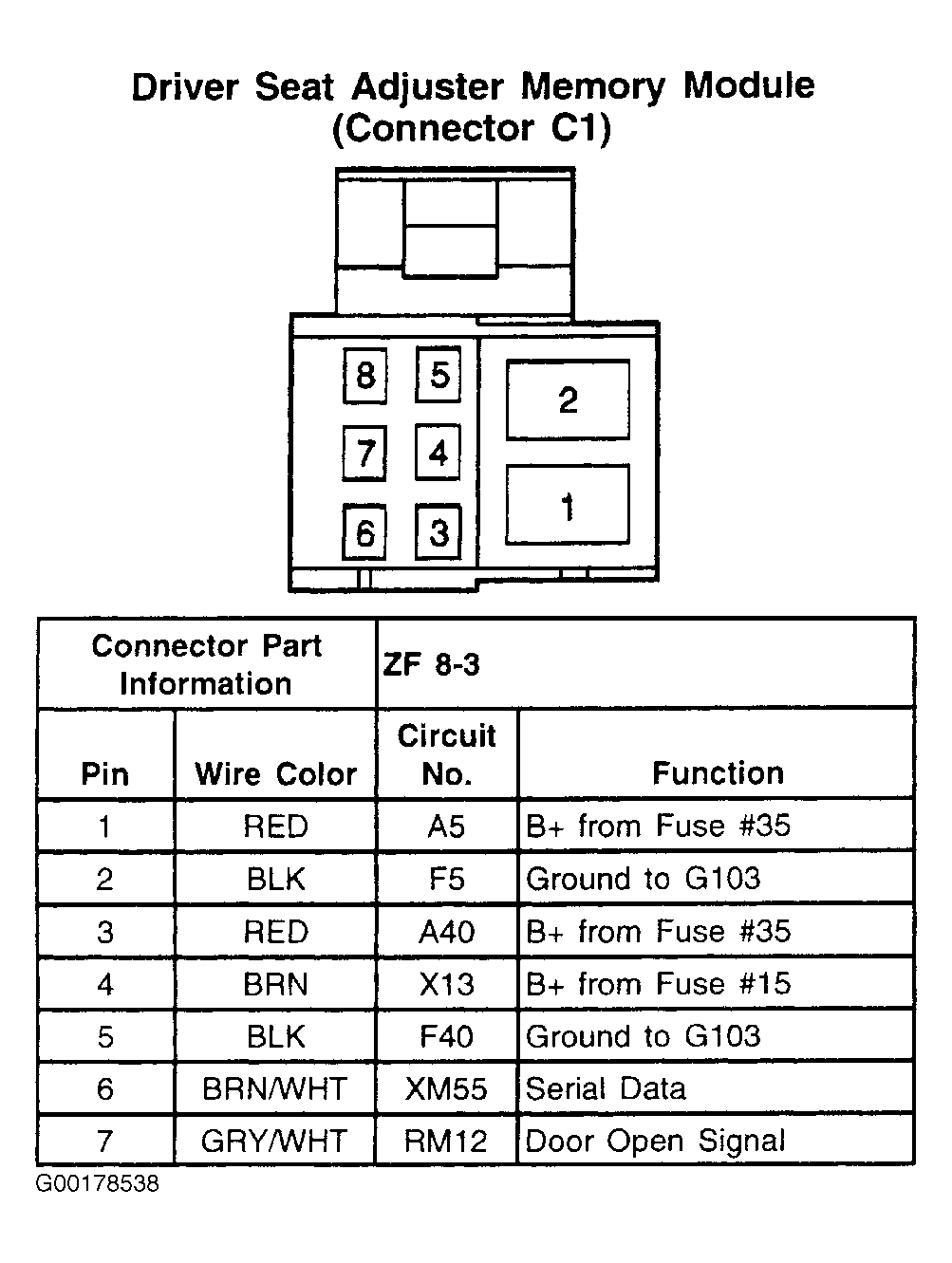

Fig 1: Driver Seat Adjuster Memory Module C1 - 8-Pin Connector

G00178538

Courtesy of GENERAL MOTORS CORP.
