Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Steering Controls >> Power Steering Fluid Flow Control Valve Actuator

Power Steering Fluid Flow Control Valve Actuator

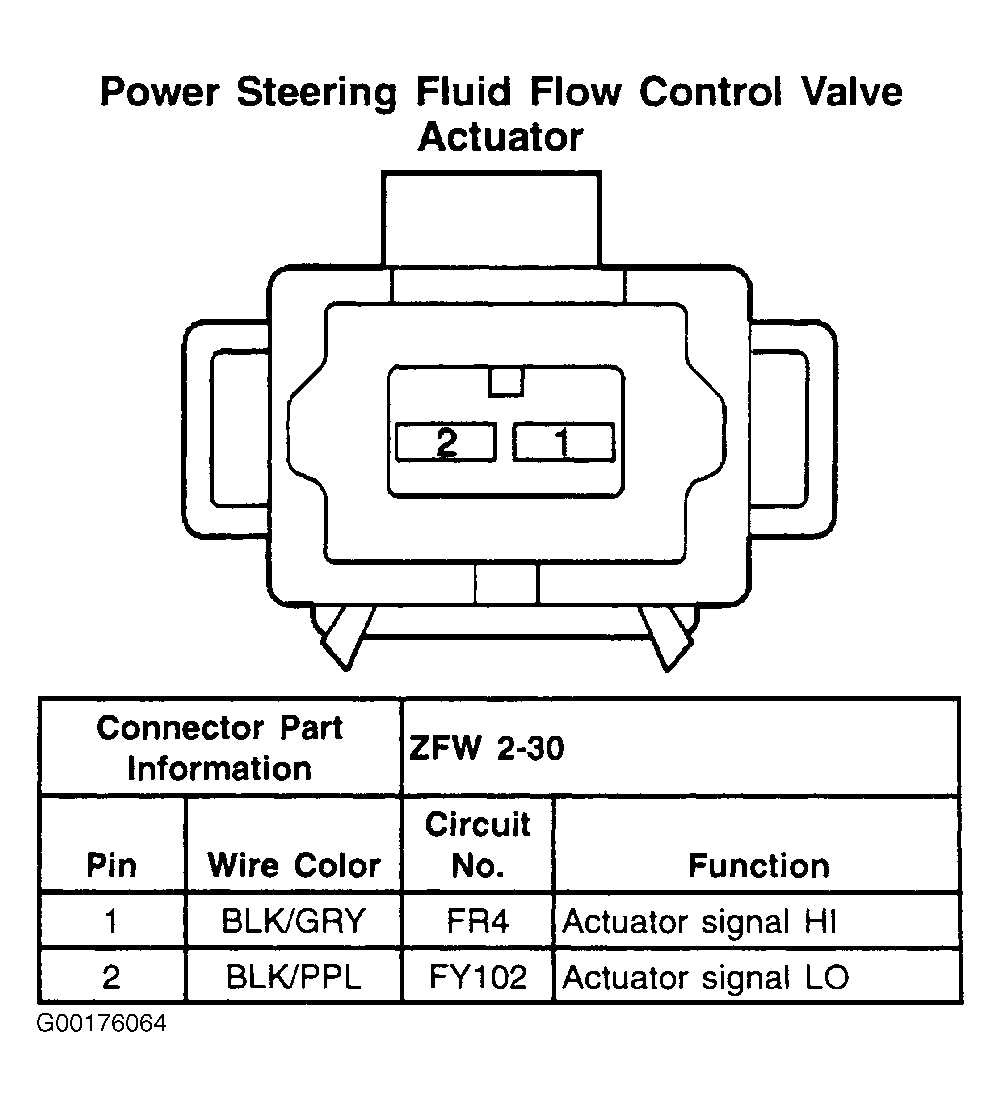

Fig 1: Power Steering Fluid Flow Control Valve Actuator - 2-Pin Connector

G00176064

Courtesy of GENERAL MOTORS CORP.
