Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Theft Deterrent >> Remote Control Door Lock Receiver (RCDLR)

Remote Control Door Lock Receiver (RCDLR)

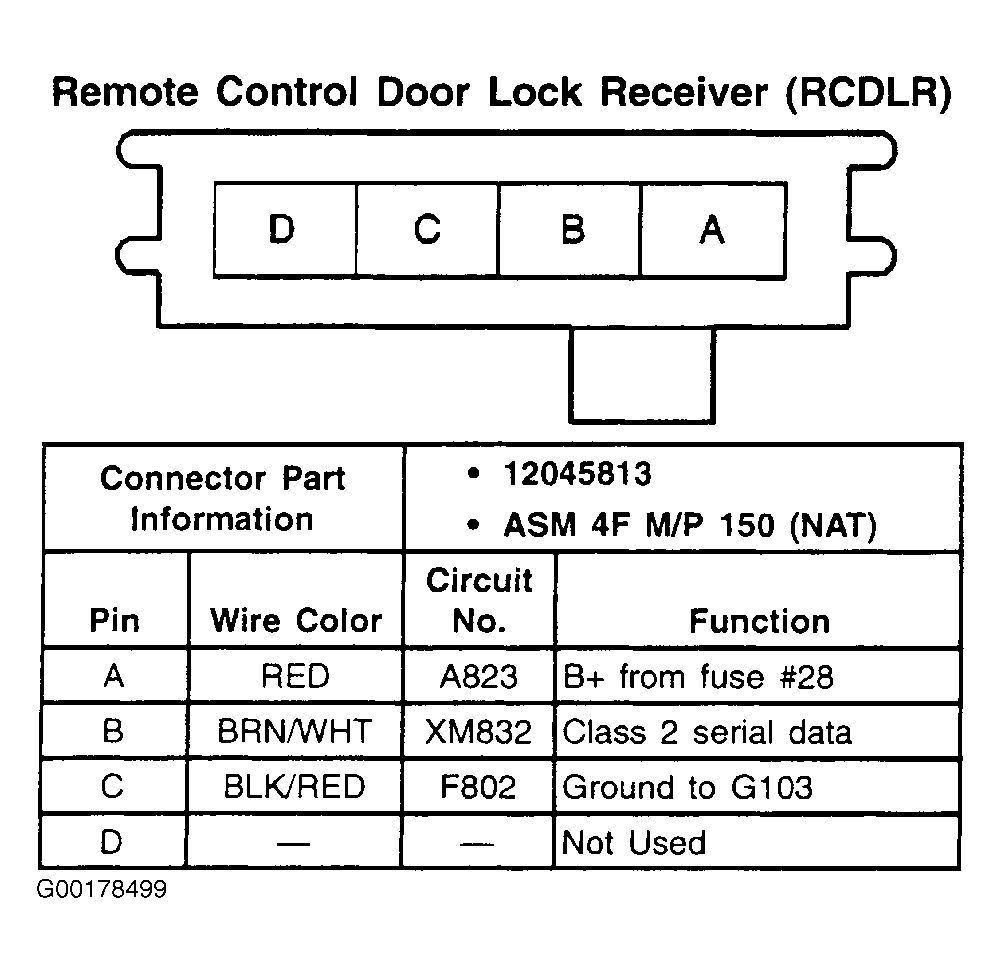

Fig 1: Remote Control Door Lock Receiver (RCDLR) - 4-Pin Connector (Natural)

G00178499

Courtesy of GENERAL MOTORS CORP.
