Cadillac
>>
1997
>>
Catera
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Wiper/Washer Systems
>>
Windshield Wiper Motor
Windshield Wiper Motor

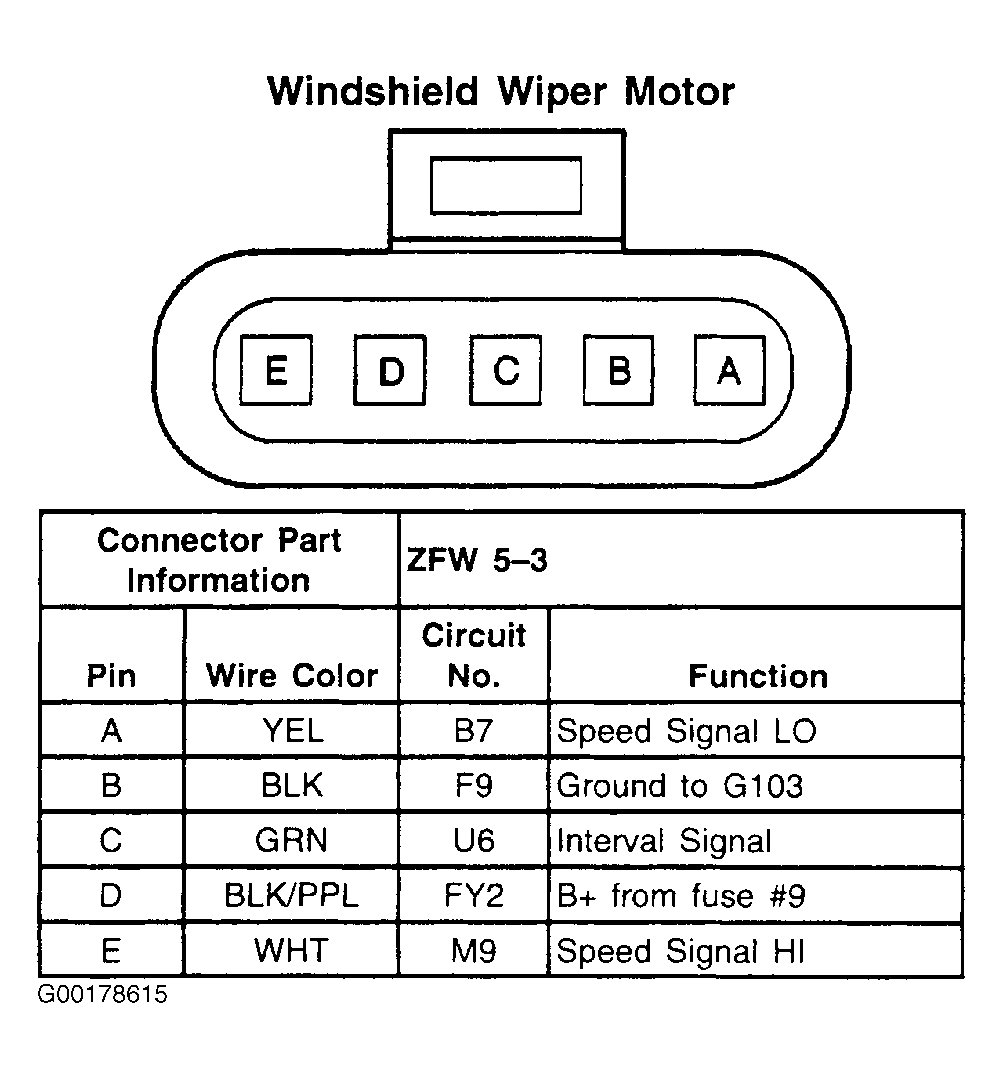

Fig 1: Windshield Wiper Motor - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
