ECM Connectors

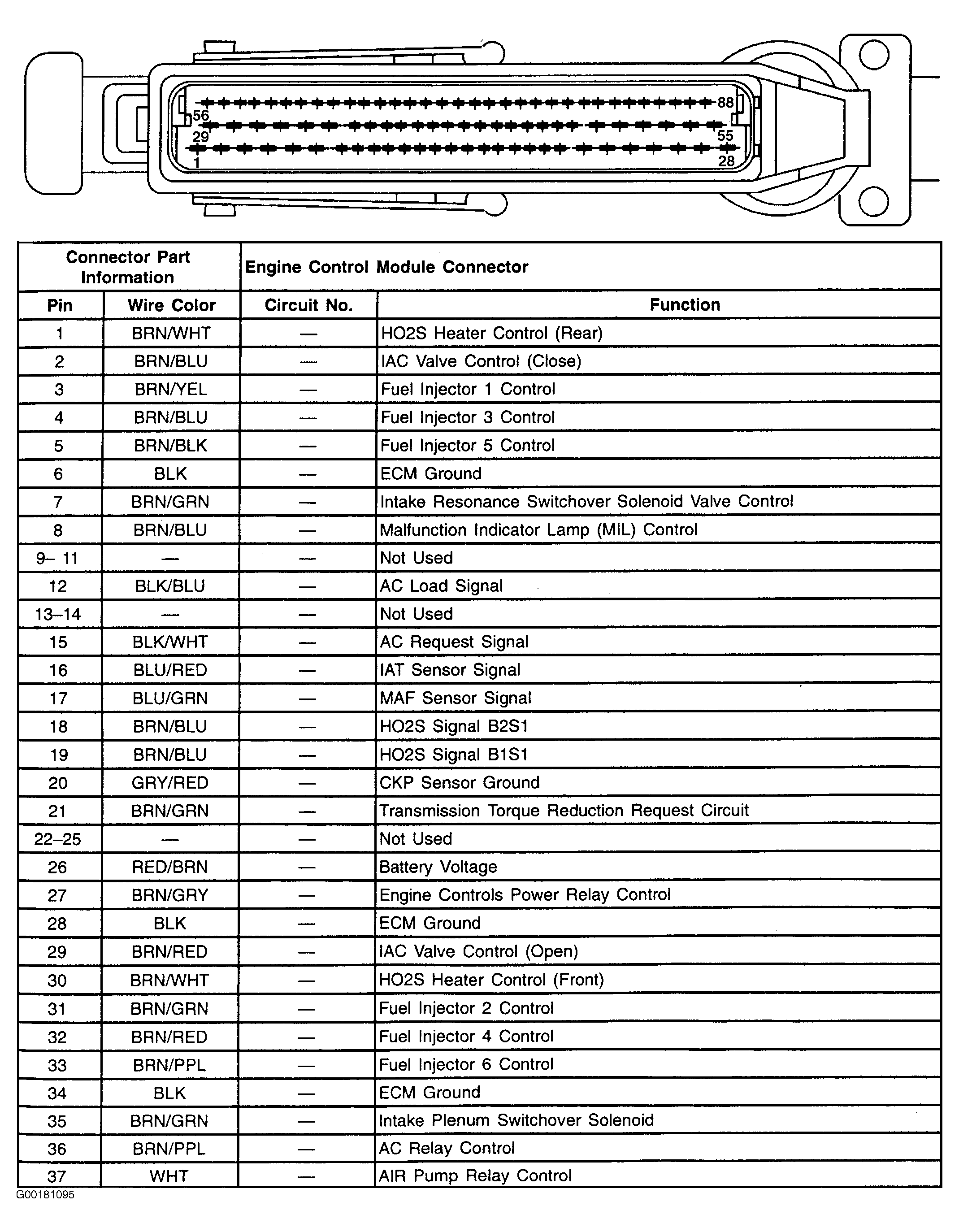

Fig 1: ECM 88-Pin Connector (1 Of 3)
G00181095Courtesy of GENERAL MOTORS CORP.

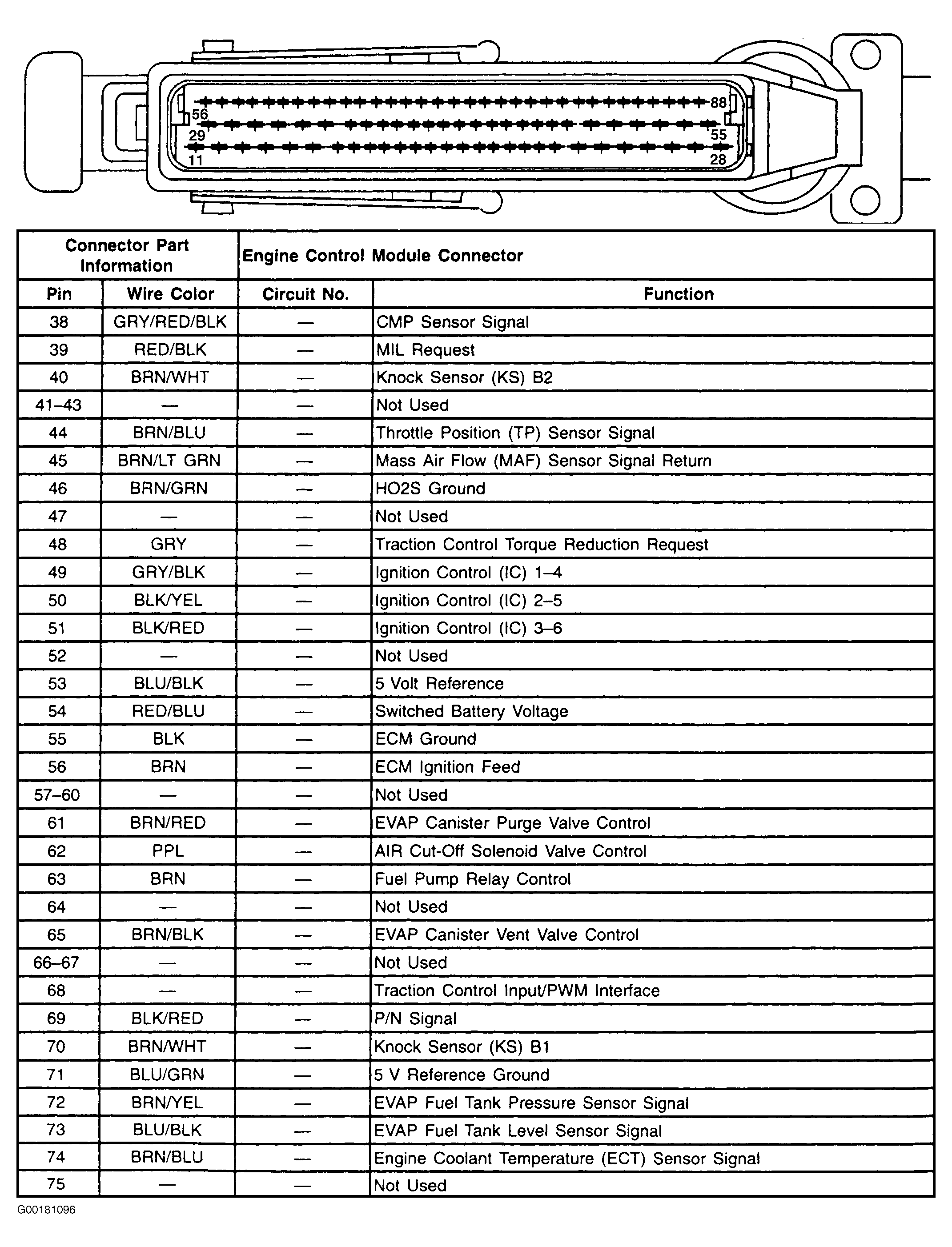

Fig 2: ECM 88-Pin Connector (2 Of 3)
G00181096Courtesy of GENERAL MOTORS CORP.

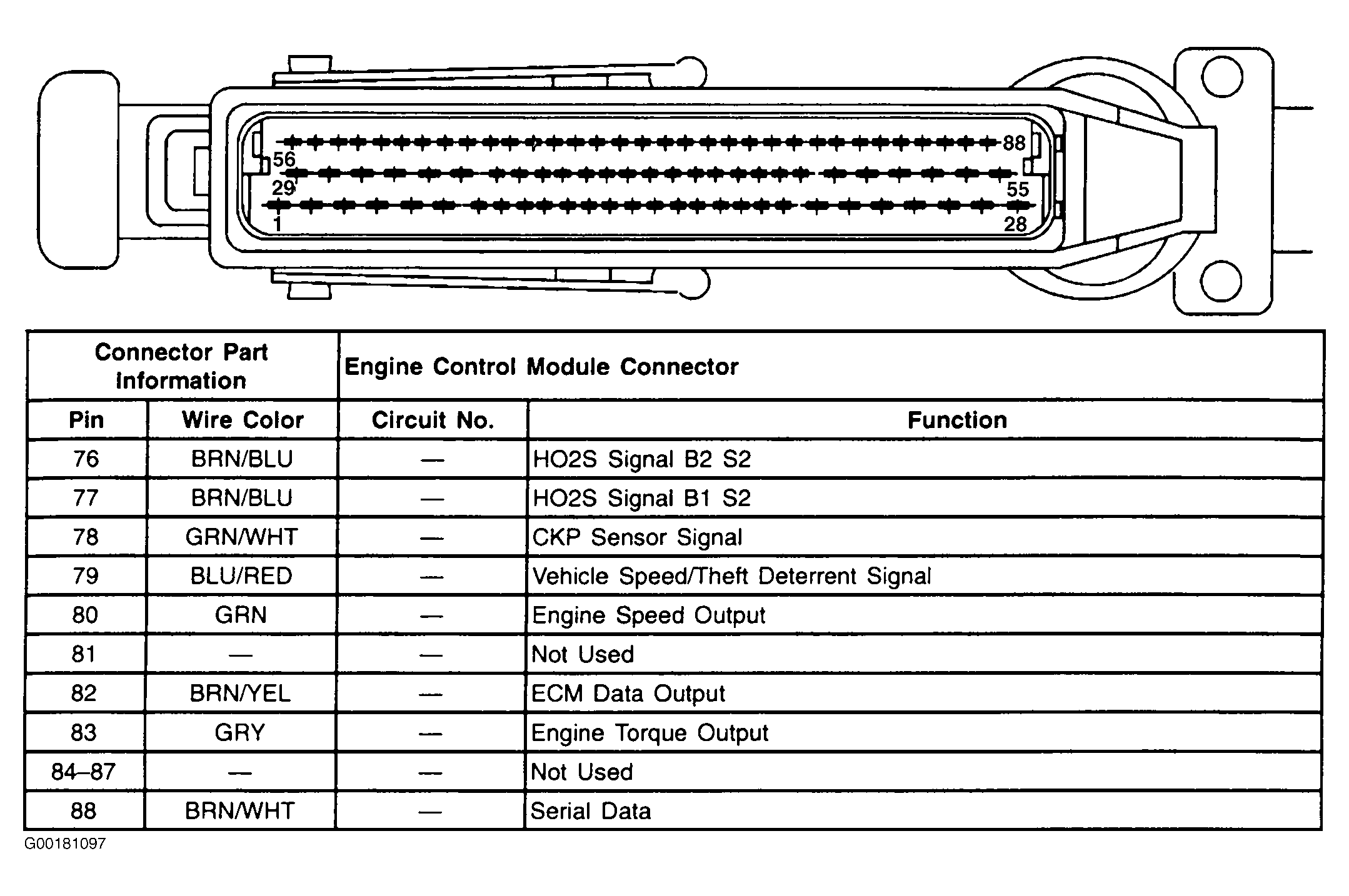

Fig 3: ECM 88-Pin Connector (3 Of 3)
G00181097Courtesy of GENERAL MOTORS CORP.
