Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

PNP Switch Mounting Bolts

18 (24)

INCH Lbs. (N.m)

Oil Pan Bolts

⁽¹⁾

⁽¹⁾	Tighten oil pan bolts in 3 steps in sequence as shown. See Fig 1.

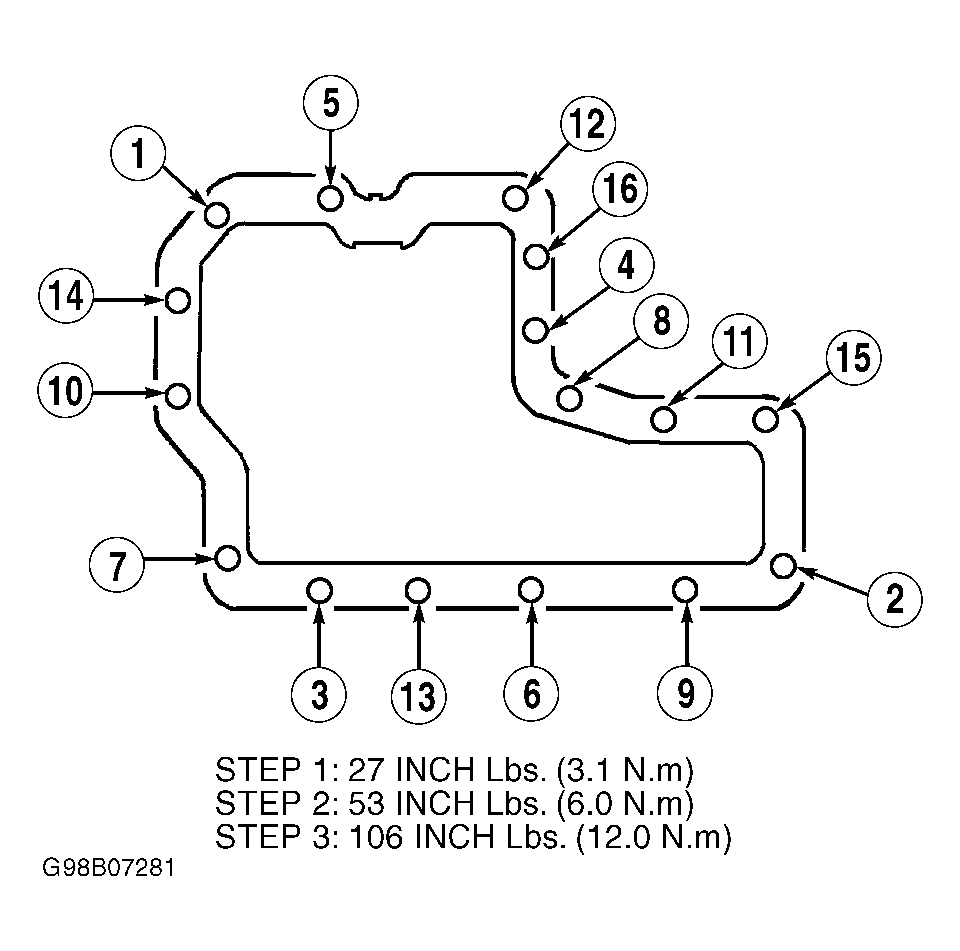

Fig 1: Oil Pan Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.
