Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Electronic Level Control (ELC) Circuit Breaker | Taped to body harness, 15 cm from trunk compartment fuse block. |

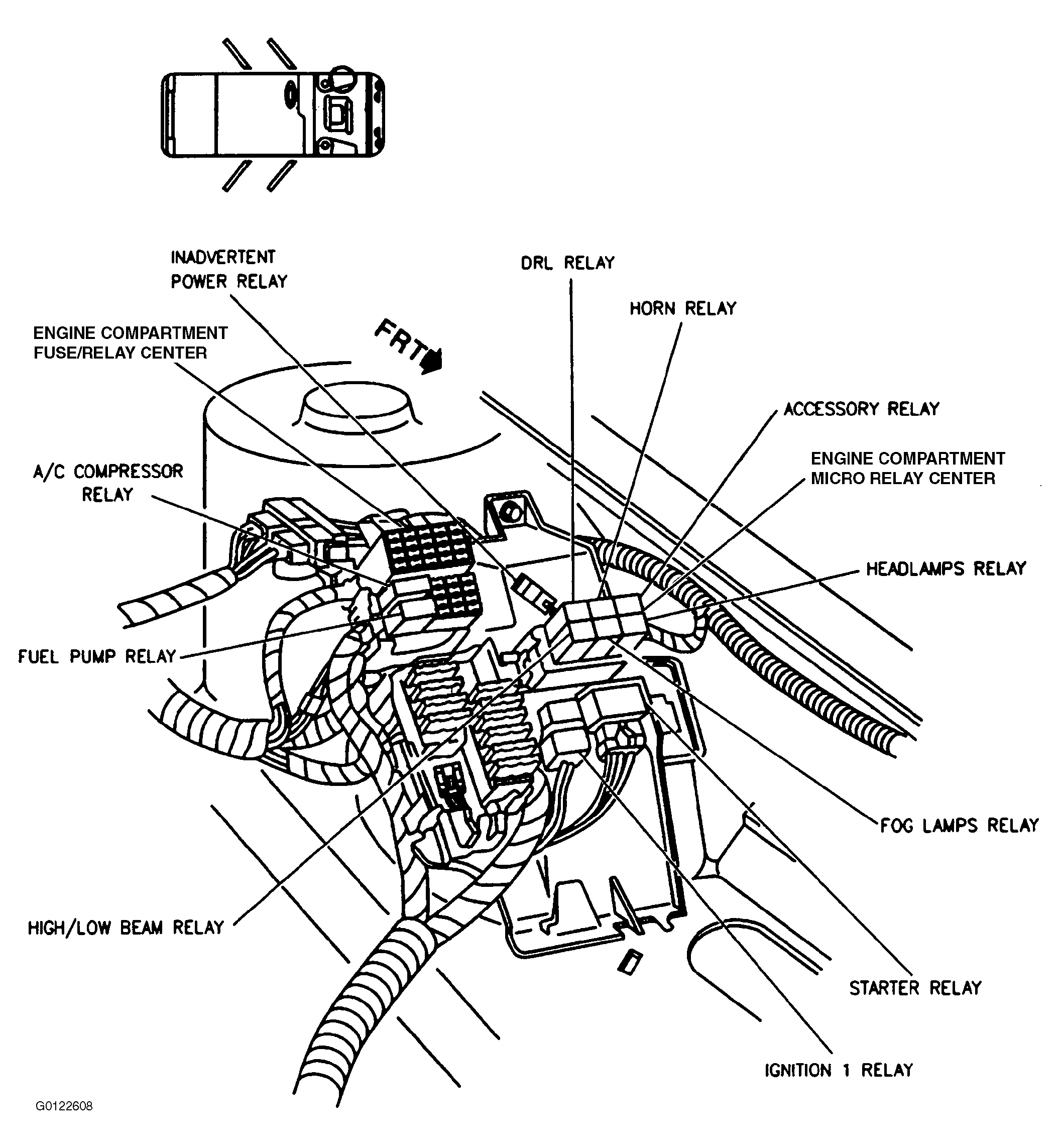

| Engine Compartment Fuse/Relay Center | Left side of engine compartment. See Figure . |
| Engine Compartment Micro Relay Center | Left side of engine compartment. See Figure . |
| Left Maxi Fuse Block | Left side of engine compartment. See Figure . |
| Right Maxi Fuse Block | Left side of engine compartment. See Figure . |
| Trunk Compartment Fuse Block | Right front of trunk. See Figure . |
| Trunk Compartment Micro Relay Centers (5) | Behind right side of rear seat. See Figure . |
