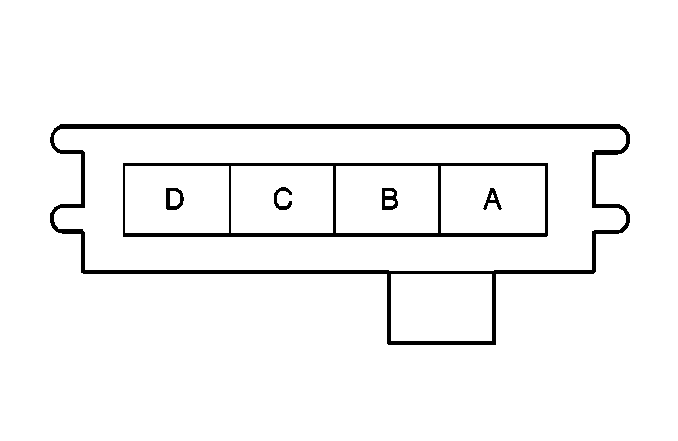

Keyless Entry Connector End Views
Courtesy of GENERAL MOTORS CORP. Remote Control Door Lock Receiver (RCDLR) Connector Parts Information
| Connector Part Information |
* 12045813
* ASM 4F M/P 150 (NAT) |
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
RED |
A823 |
B+ from fuse #28 |
| B |
BRN/WHT |
XM832 |
Class 2 serial data |
| C |
BLK/RED |
F802 |
Ground to G103 |
| D |
Not Used |
- |
- |
