Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

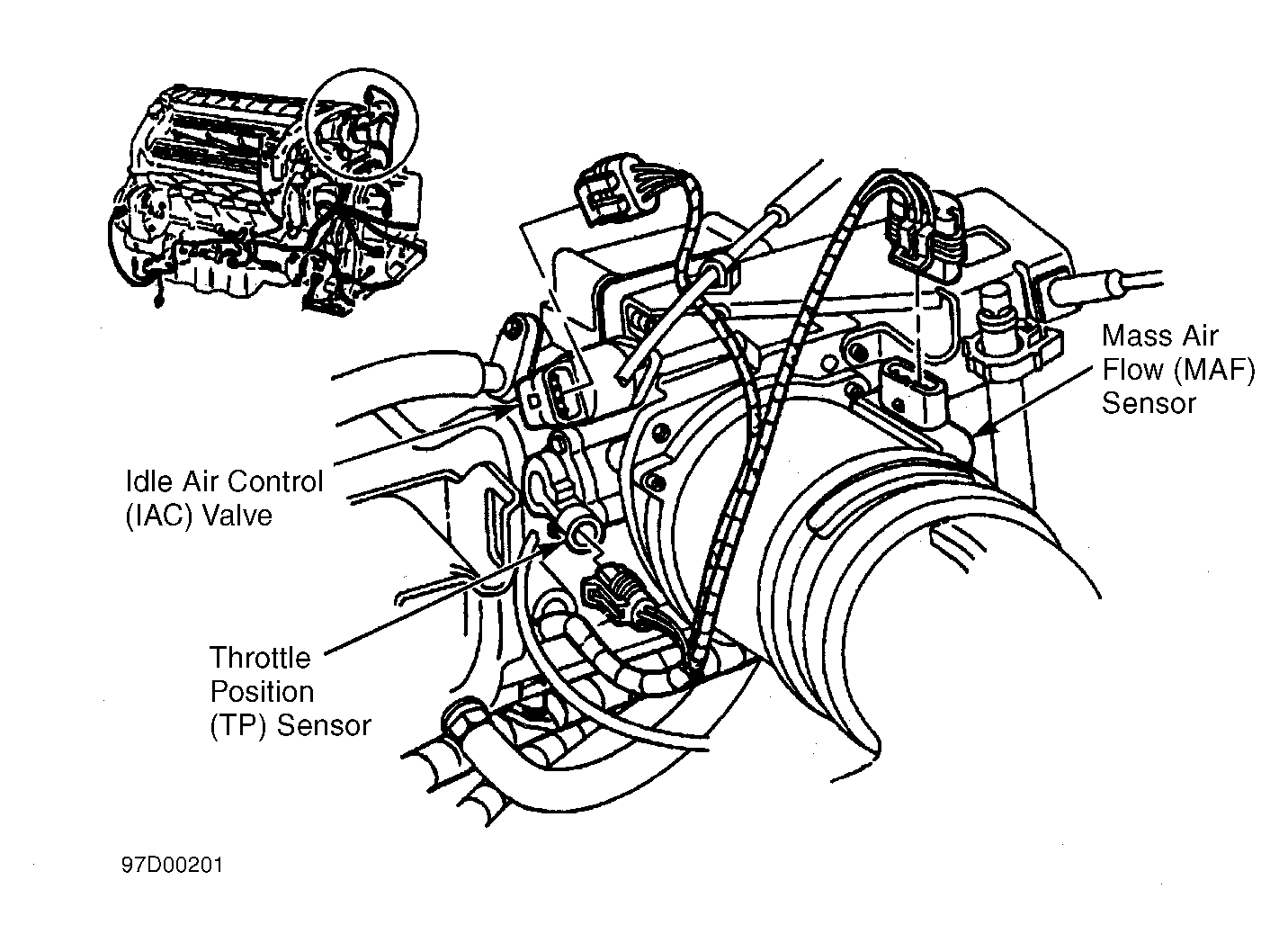

Fig 1: Left Top Of Engine

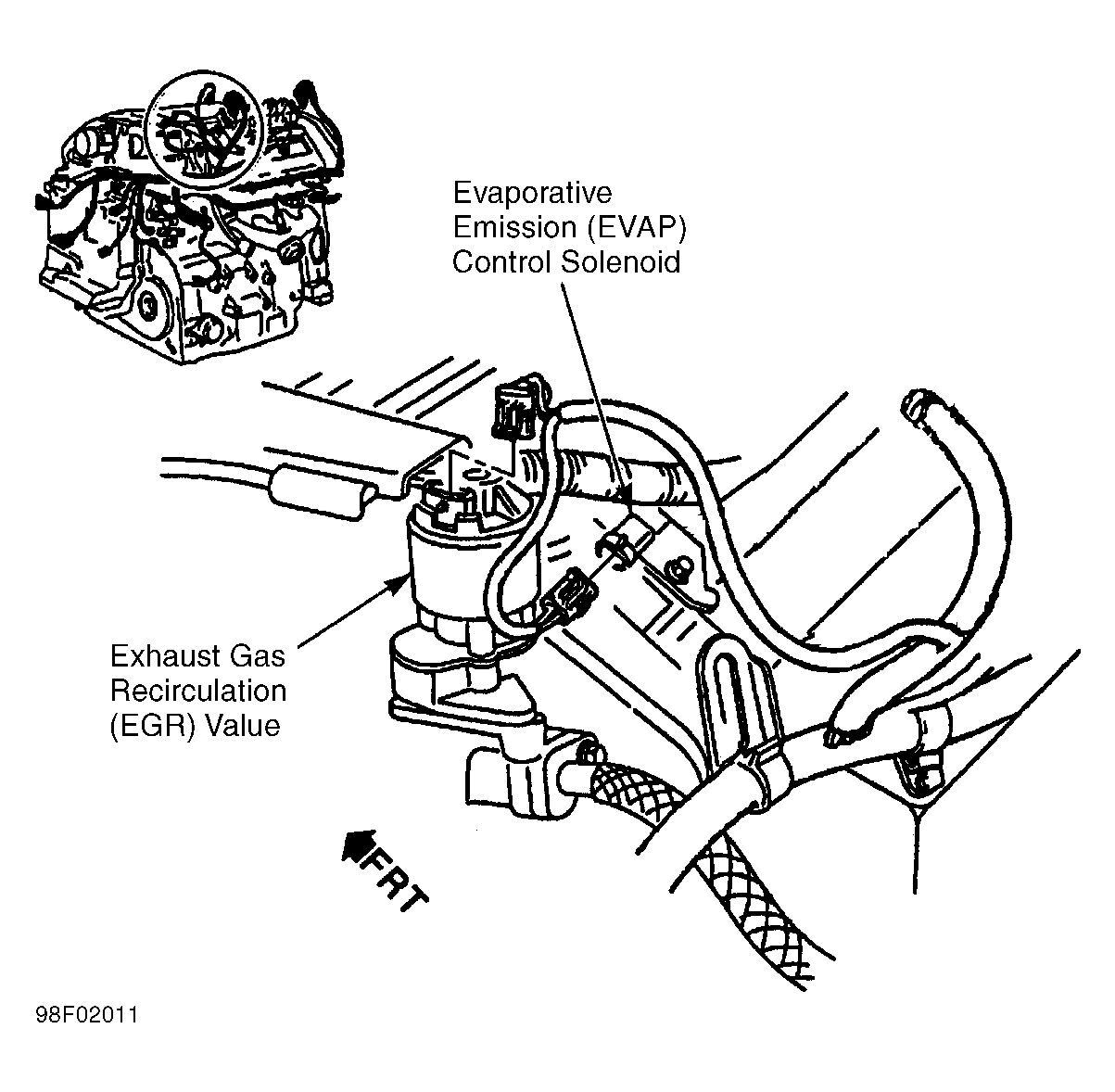

Fig 2: Left Rear Top Of Engine

Fig 3: Left Side Of Engine Compartment

Fig 4: Behind Rear Seat Back
