Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Blower Motor Resistor Module (Rear) | Under center console, near rear blower motor. |

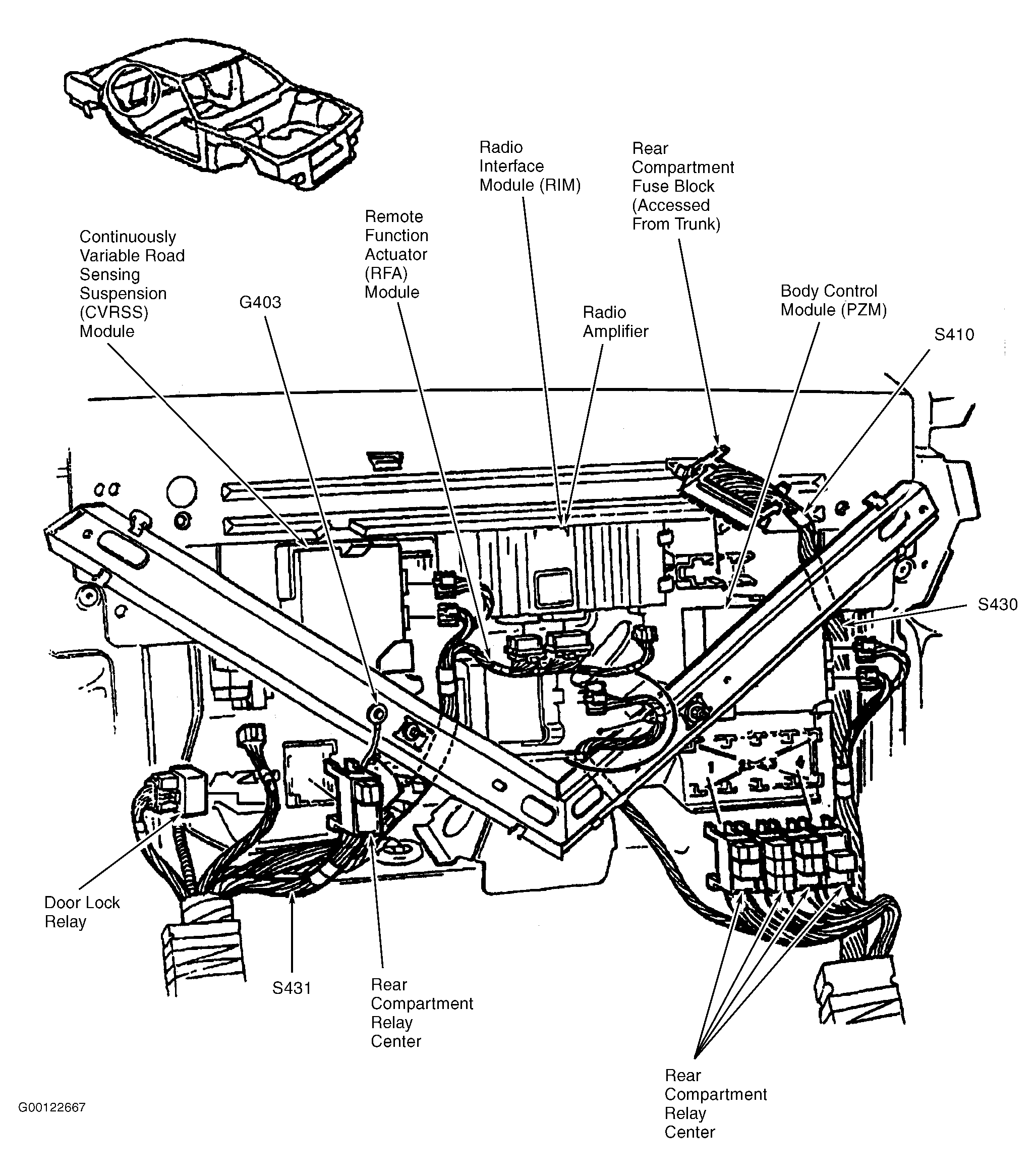

| Body Control Module (PZM) | Front of rear compartment, attached to electronics bay. See Figure . |
| Cellular Telephone Module | Right rear compartment, near power antenna. |
| Continuously Variable Road Sensing Suspension (CVRSS) Module | Front of rear compartment, attached to electronics bay. See Figure . |
| Cruise Control Module | Left rear of engine compartment, on strut tower. |
| Electronic Brake & Traction Control Module (EBTCM) | Left front corner of engine compartment, on brake pressure modulator valve. |
| Heated Seat Relay Modules | Under respective front seat, on seat adjuster frame. |
| Heater & A/C Programmer | Behind right side of dash, behind glove box. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under driver's seat. |
| Ignition Control Module (ICM) | On right top of engine, under ignition coils. |
| Magnasteer Module | On multi-use bracket, at left shroud. |
| Memory Mirror Module (MMM) | Under left dash, above brake pedal. |
| Memory Seat Module (MSM) | Under driver's seat. |
| Powertrain Control Module (PCM) | Left front of engine compartment, under air cleaner housing. |
| Radio Amplifier | Front of rear compartment, attached to electronics bay. See Figure . |
| Radio Interface Module (RIM) | Front of rear compartment, attached to electronics bay. See Figure . |
| Remote Function Actuator (RFA) Module | Front of rear compartment, attached to electronics bay. See Figure . |
| Seat Relay Modules (2) | Under respective front seat, on seat adjuster frame. |
| Sun Roof Control Module | Above headliner, near sun roof. |
| Turn Signal Flasher | Behind left side of dash, left of steering column. |
| Windshield Wiper/Washer Module | On left side of firewall, in engine compartment. |
