Remote Keyless Entry System Check

To perform system check, refer to illustration. See Fig 1 .

NOTE: For testing procedures resulting from abnormal results in Fig 1 , see SYSTEM TESTS .

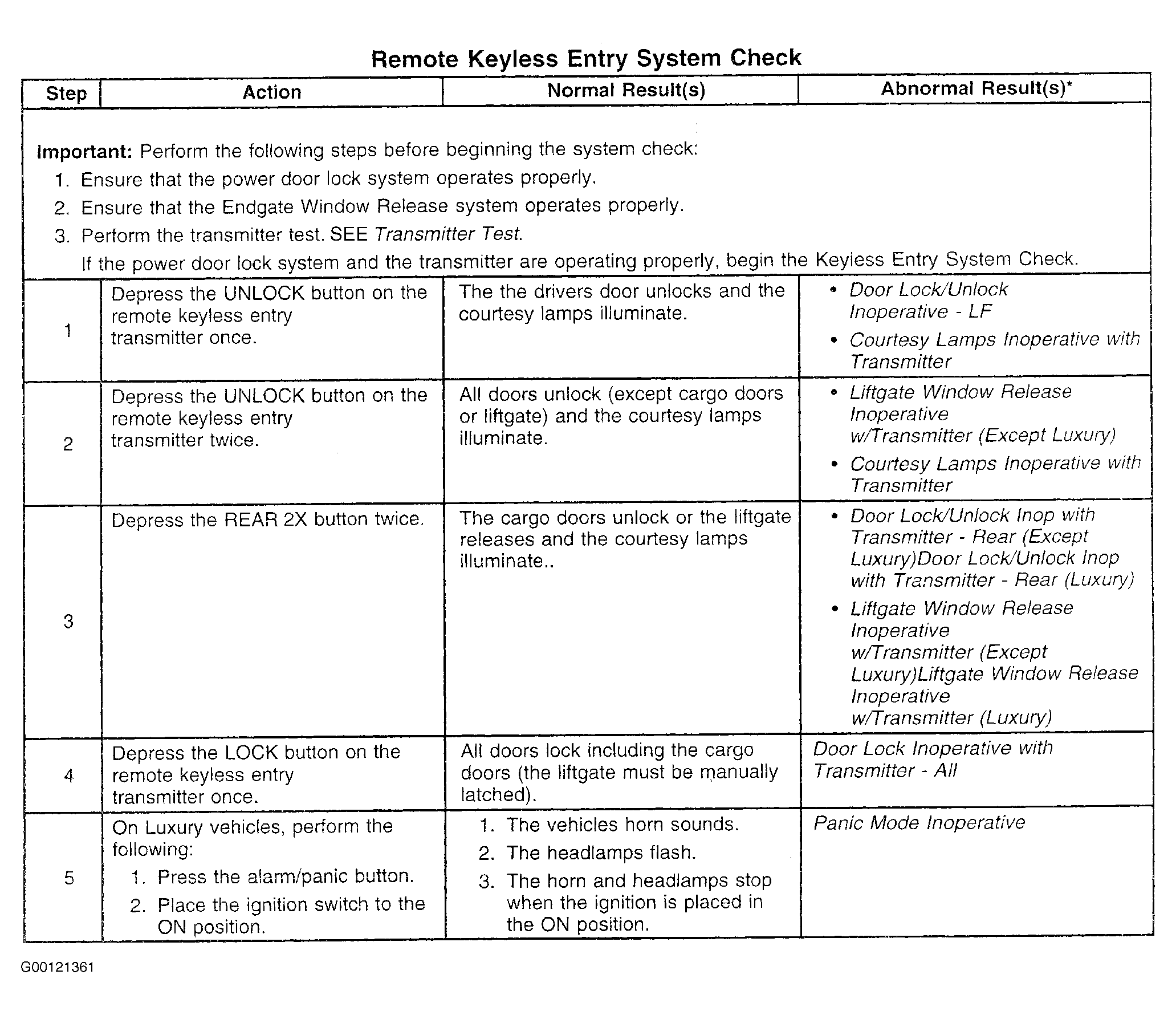

Fig 1: Remote Keyless Entry System Check

Courtesy of GENERAL MOTORS CORP.
