Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

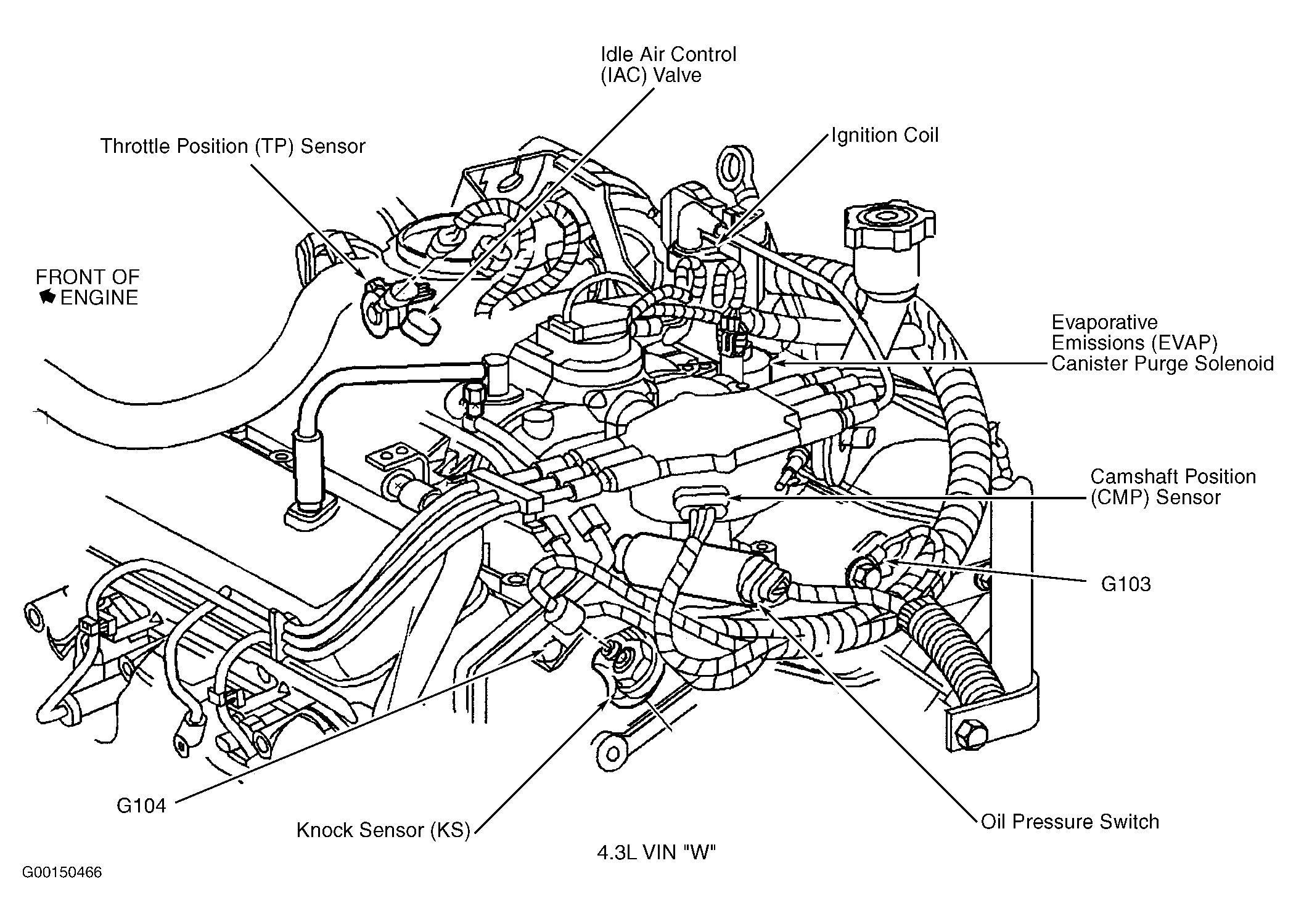

Fig 1: Rear Of Engine (4.3L VIN W)

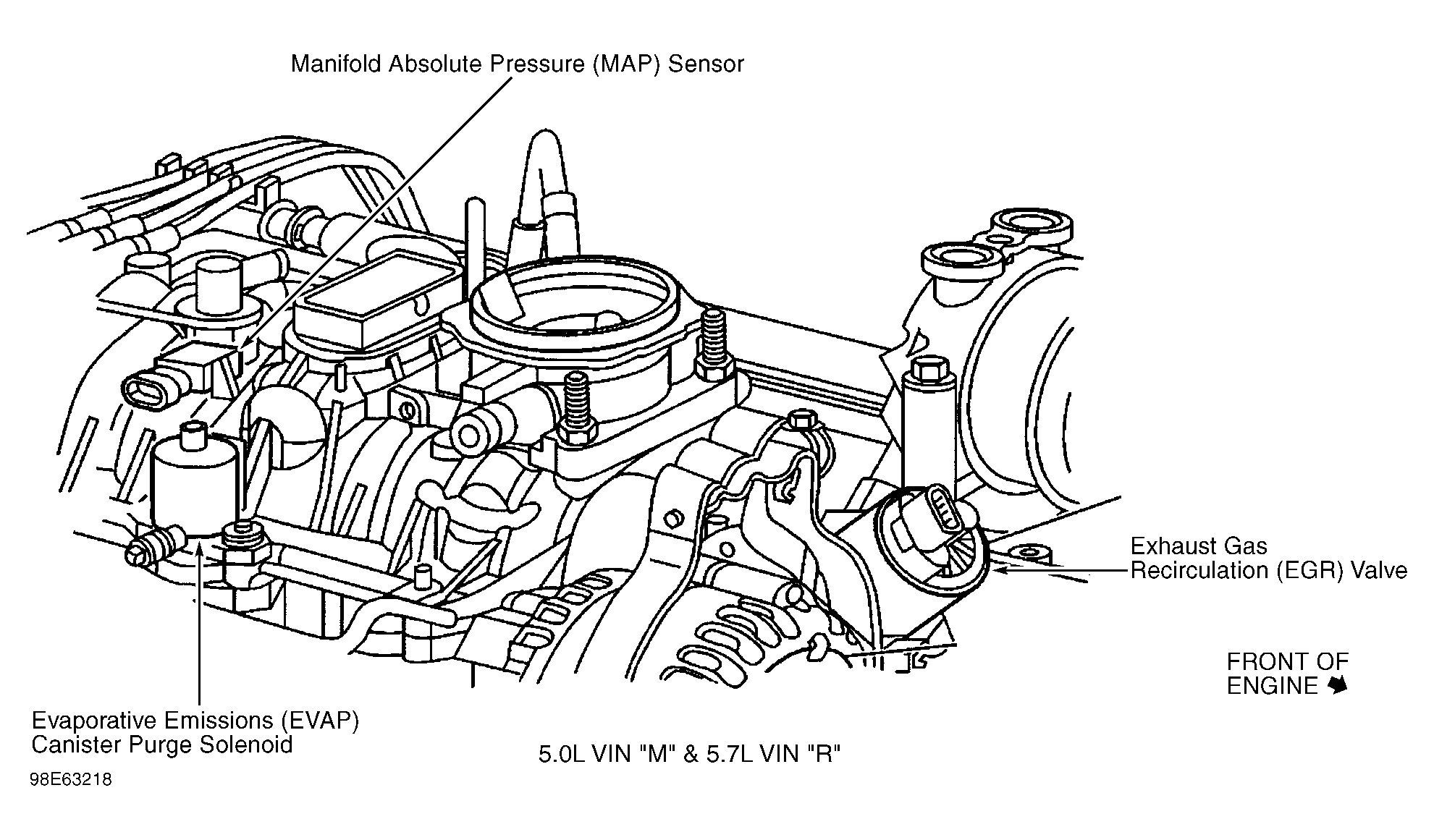

Fig 2: Top Of Engine (5.0L VIN M & 5.7L VIN R)

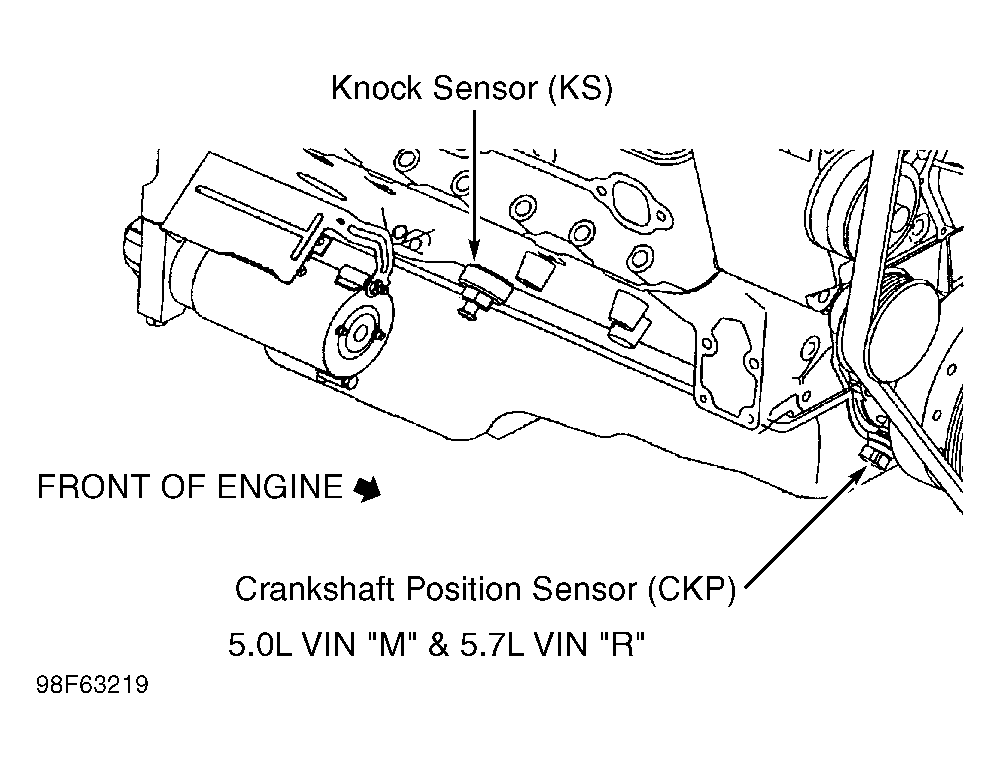

Fig 3: Lower Right Side Of Engine (5.0L VIN M & 5.7L VIN R)

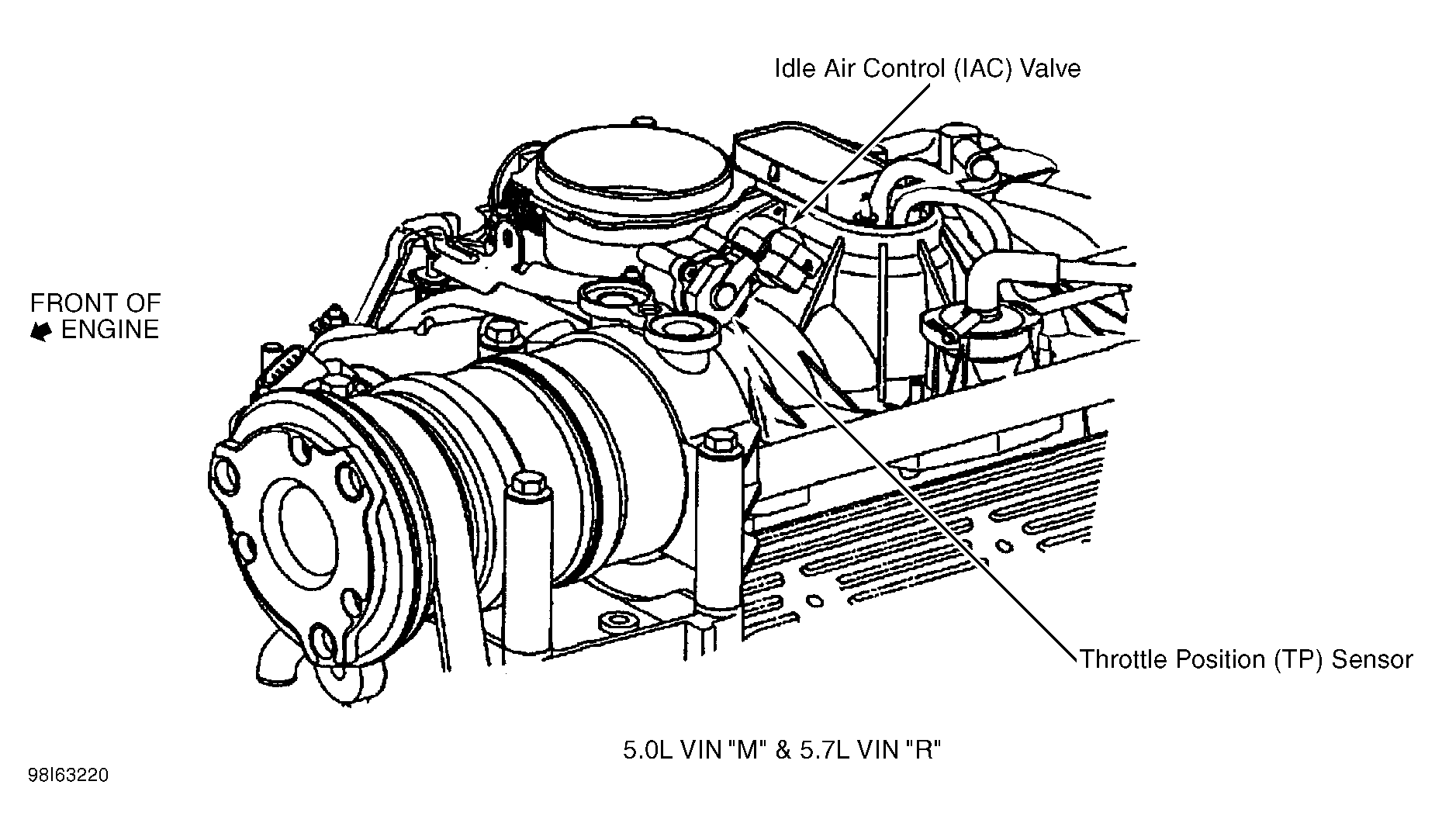

Fig 4: Top Front Of Engine (5.0L VIN M & 5.7L VIN R)

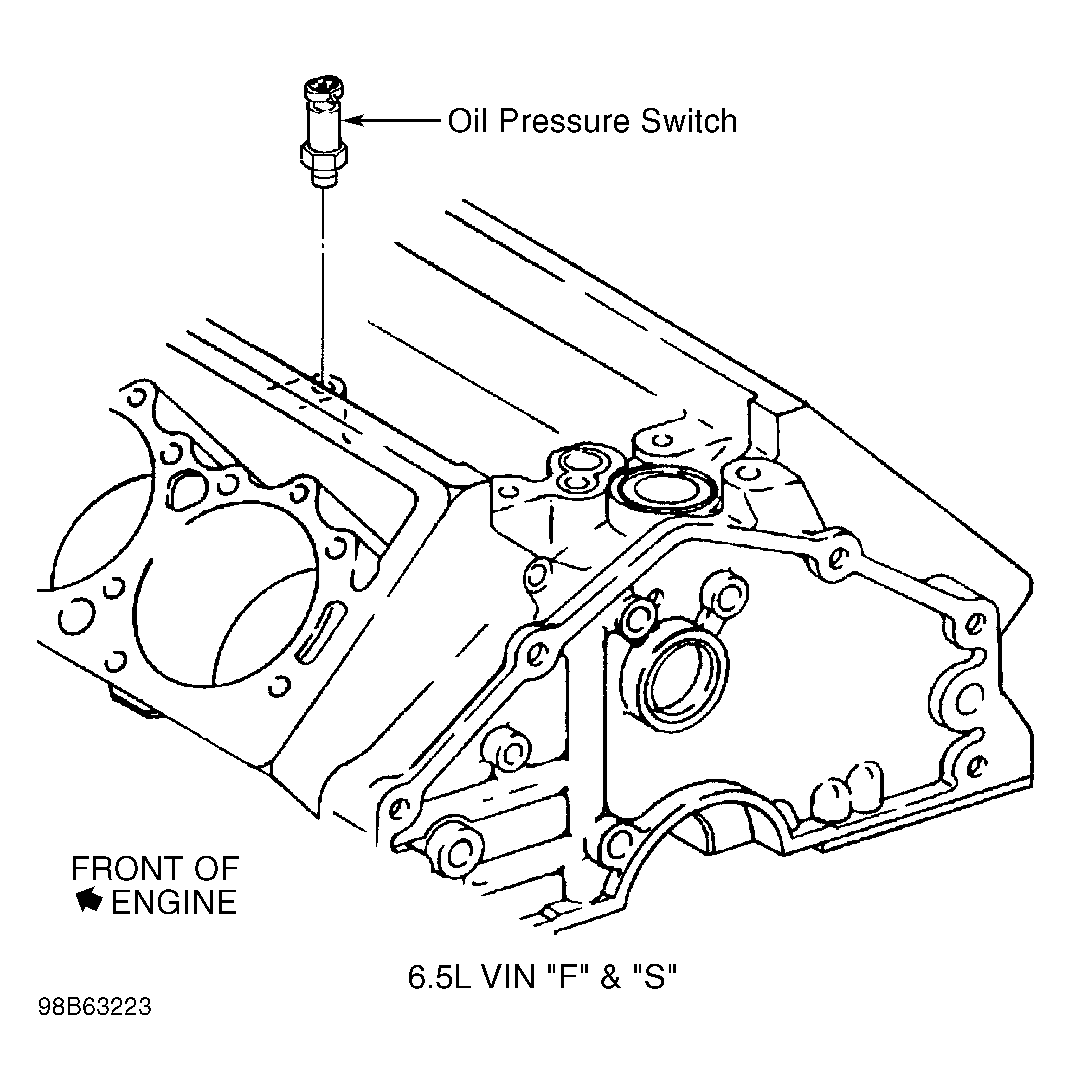

Fig 5: Rear Of Engine Block (6.5L VIN F & VIN S)

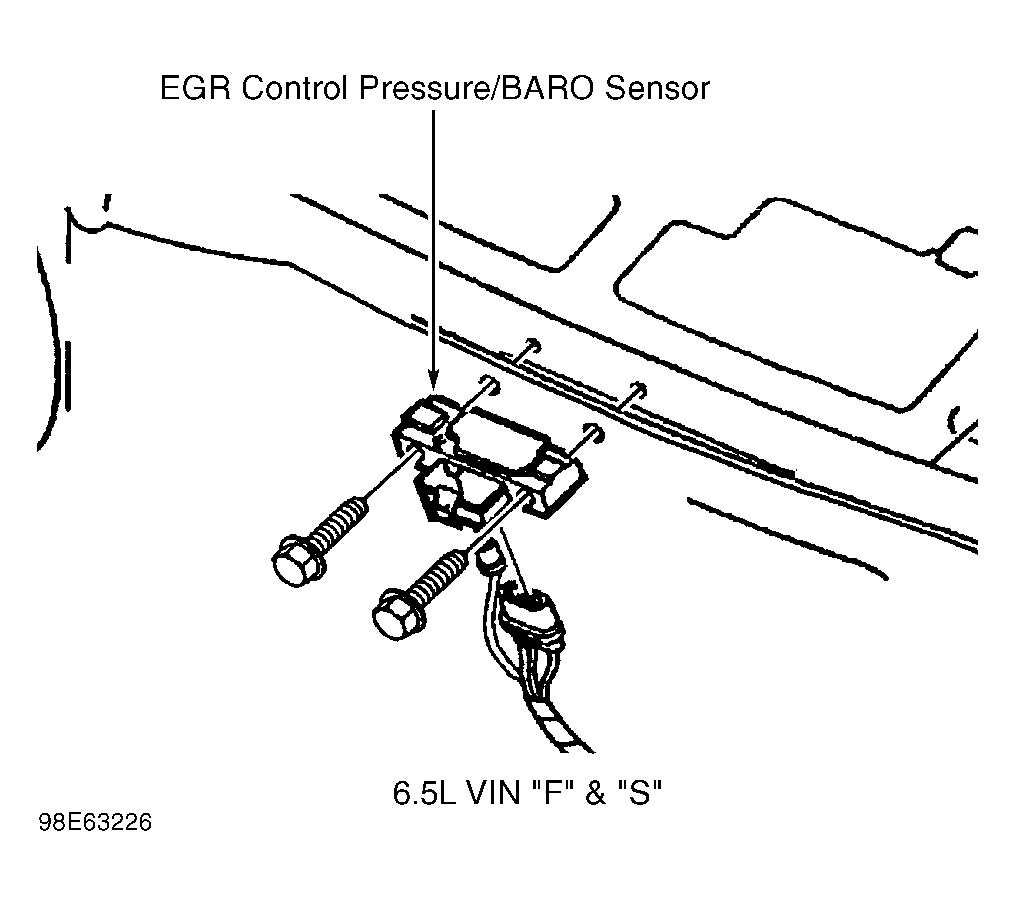

Fig 6: Rear Of Engine Compartment (6.5L VIN F & VIN S)

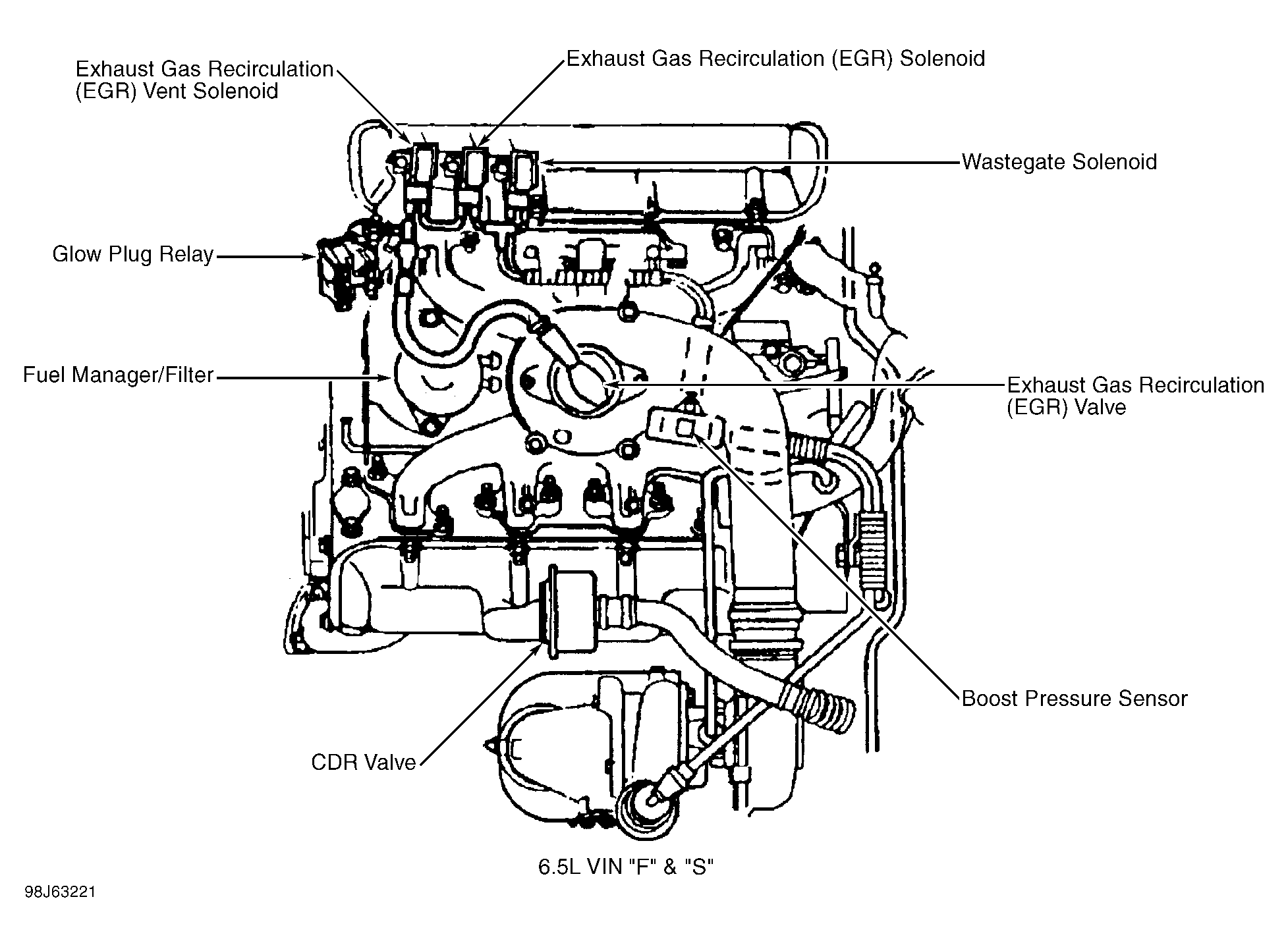

Fig 7: Top Of Engine (6.5L VIN F & VIN S)

Fig 8: Left Side Of Engine Compartment

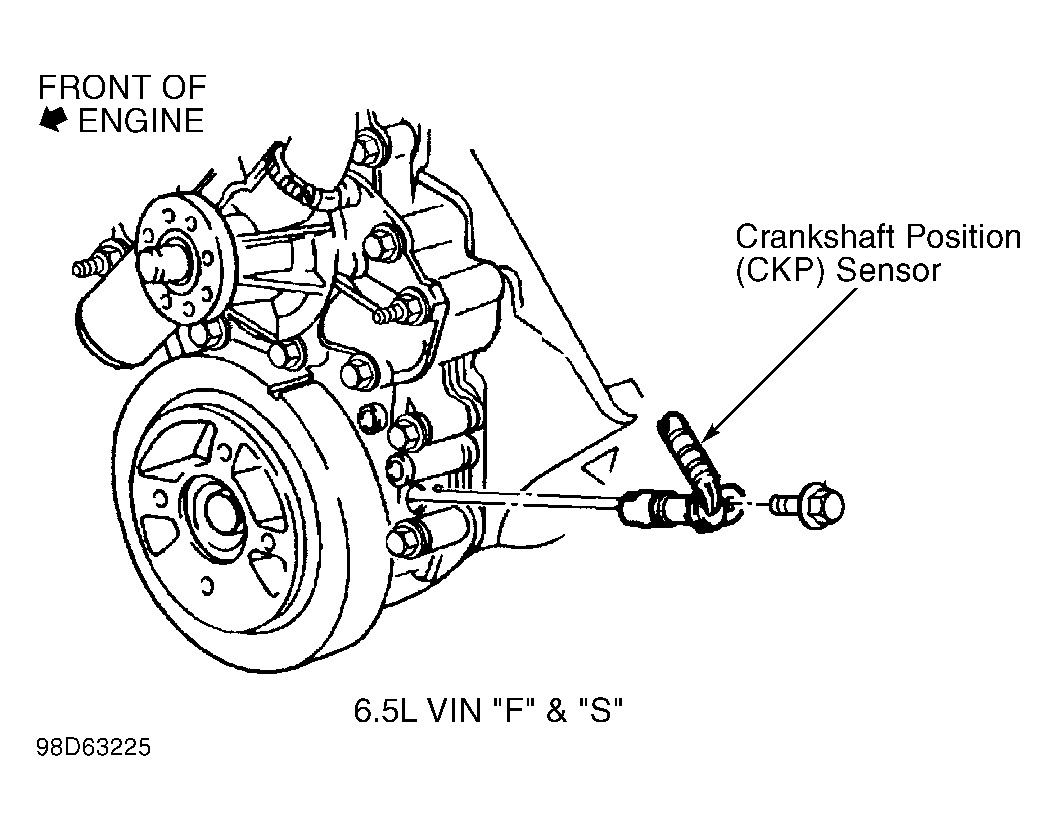

Fig 9: Lower Front Of Engine (6.5L VIN F & VIN S)

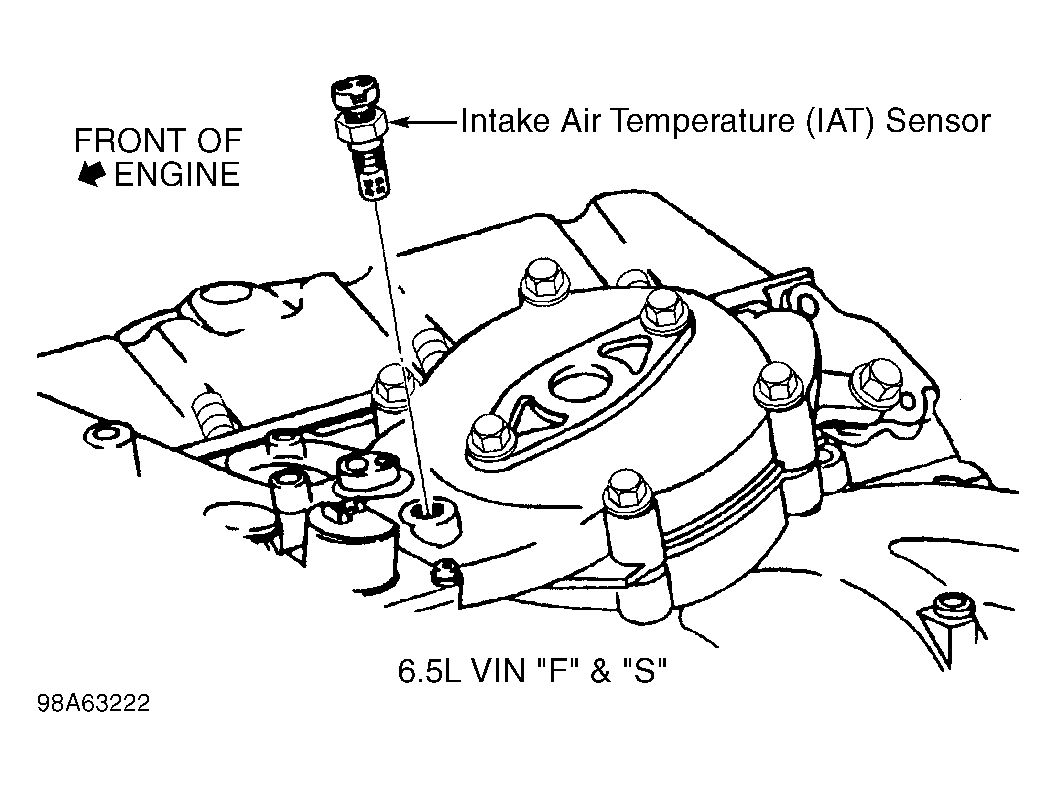

Fig 10: Top Of Intake Manifold (6.5L VIN F & VIN S)

Fig 11: Injection Pump Components (6.5L VIN F & VIN S)

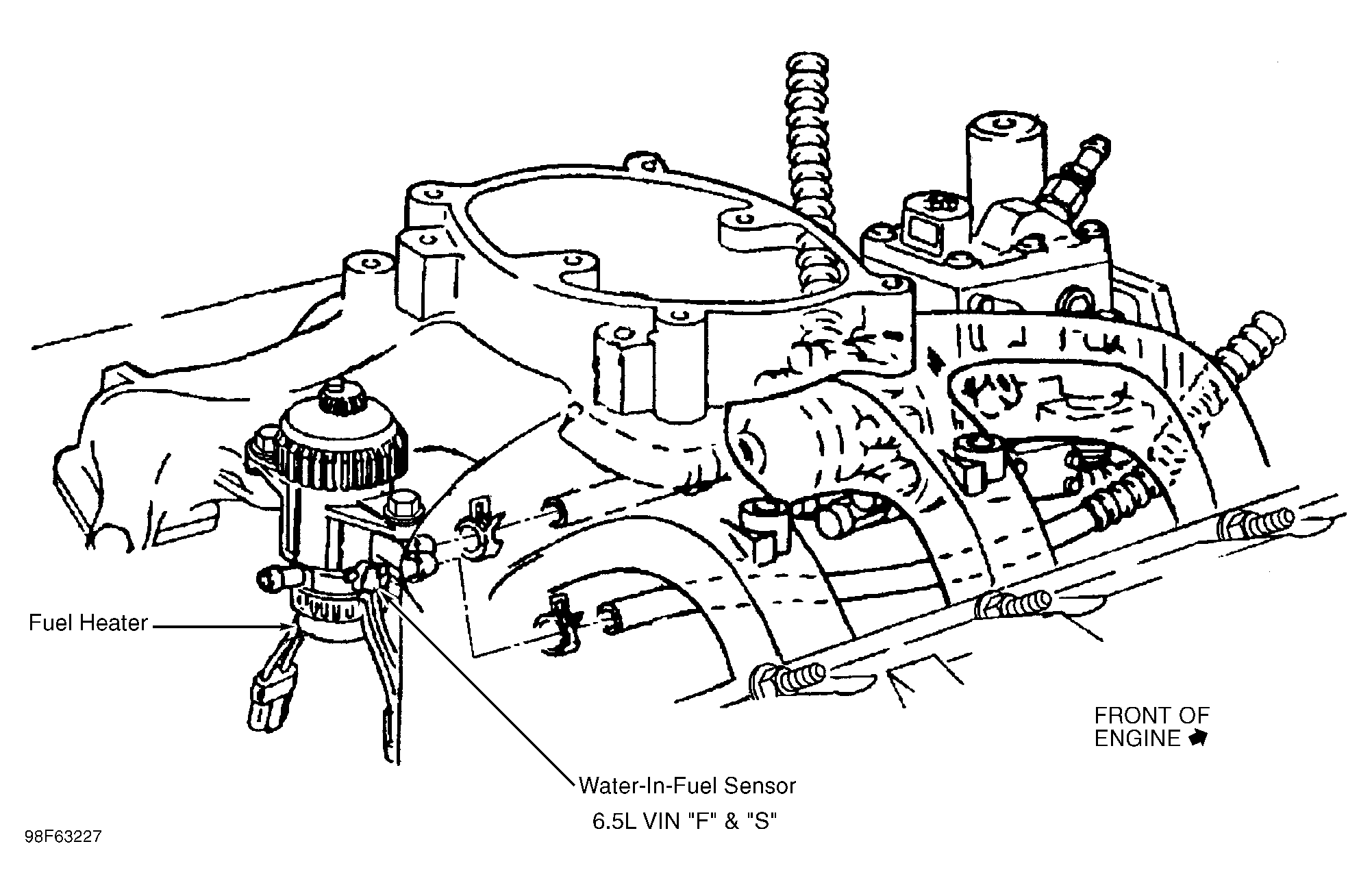

Fig 12: Rear Of Intake Manifold (6.5L VIN F & VIN S)

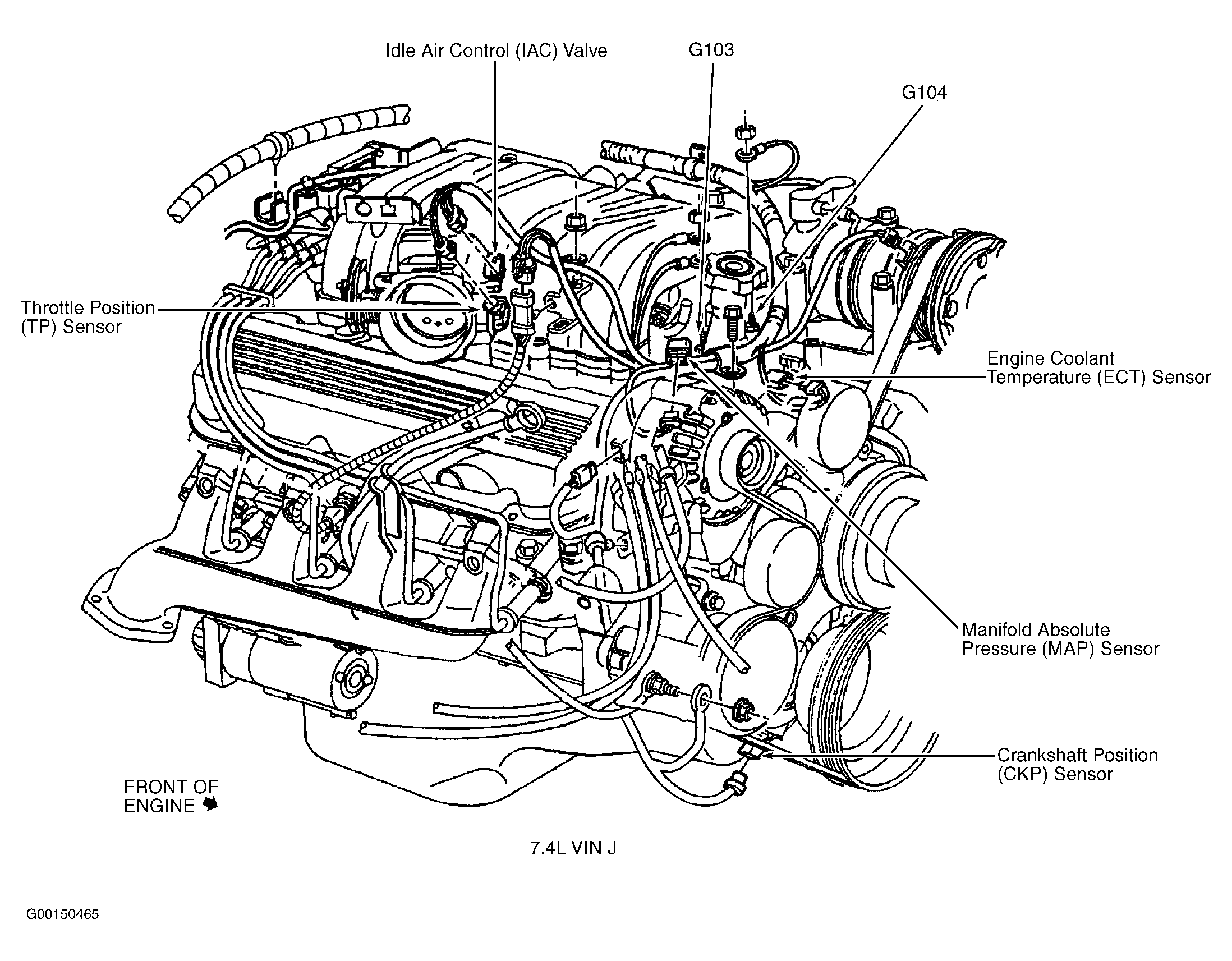

Fig 13: Right Side Of Engine (7.4L VIN J)

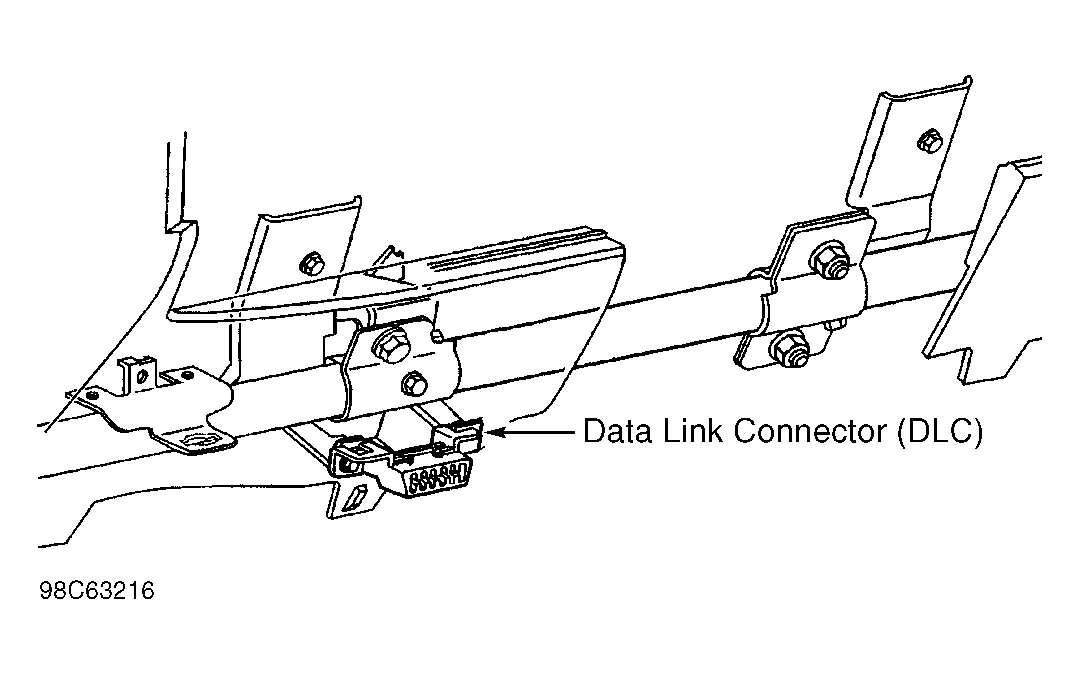

Fig 14: Lower Left Side Of Dash

Fig 15: Below Left Side Of Dash (6.5L VIN F & VIN S)
