Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

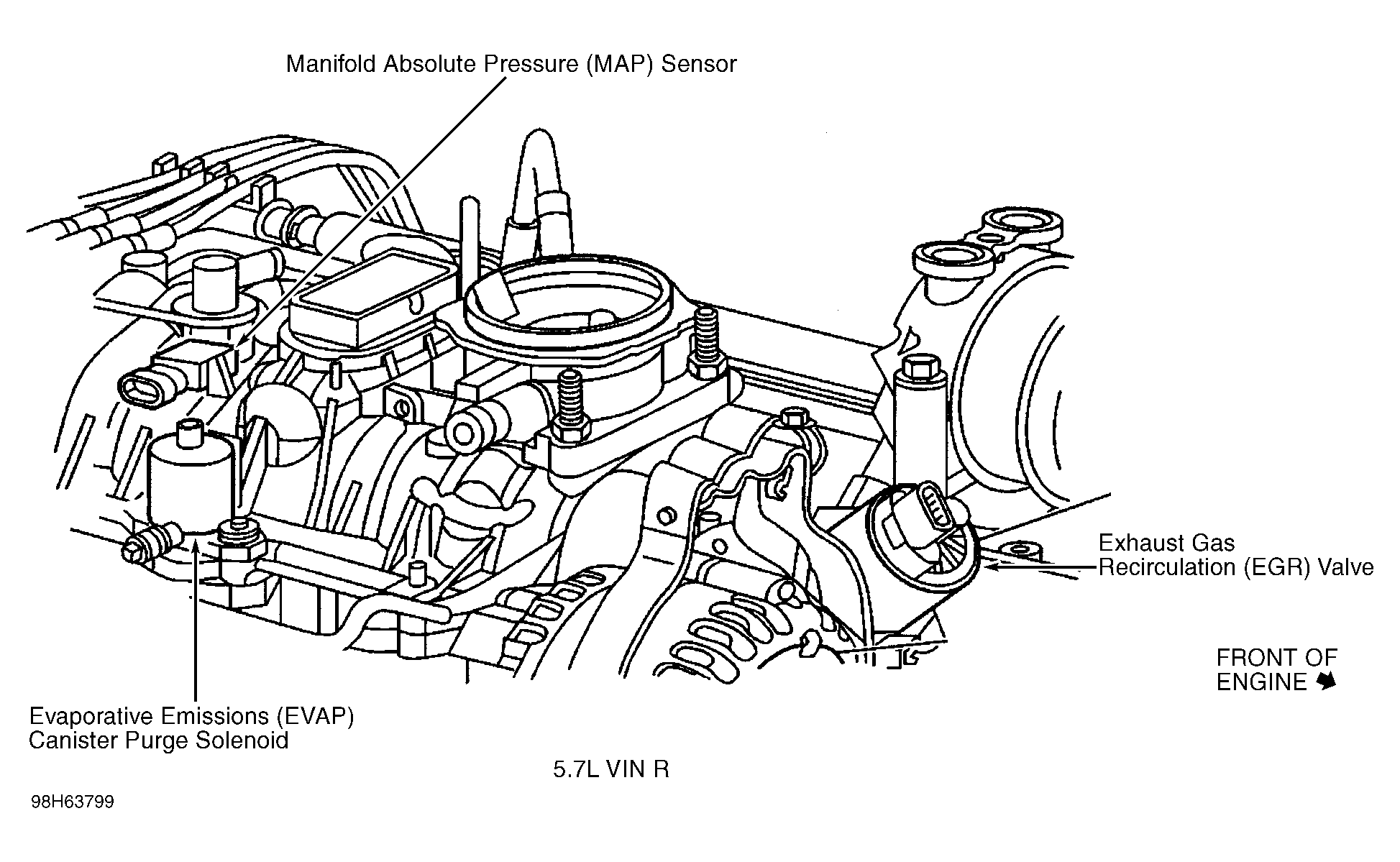

Fig 1: Top Of Engine (5.7L VIN R)

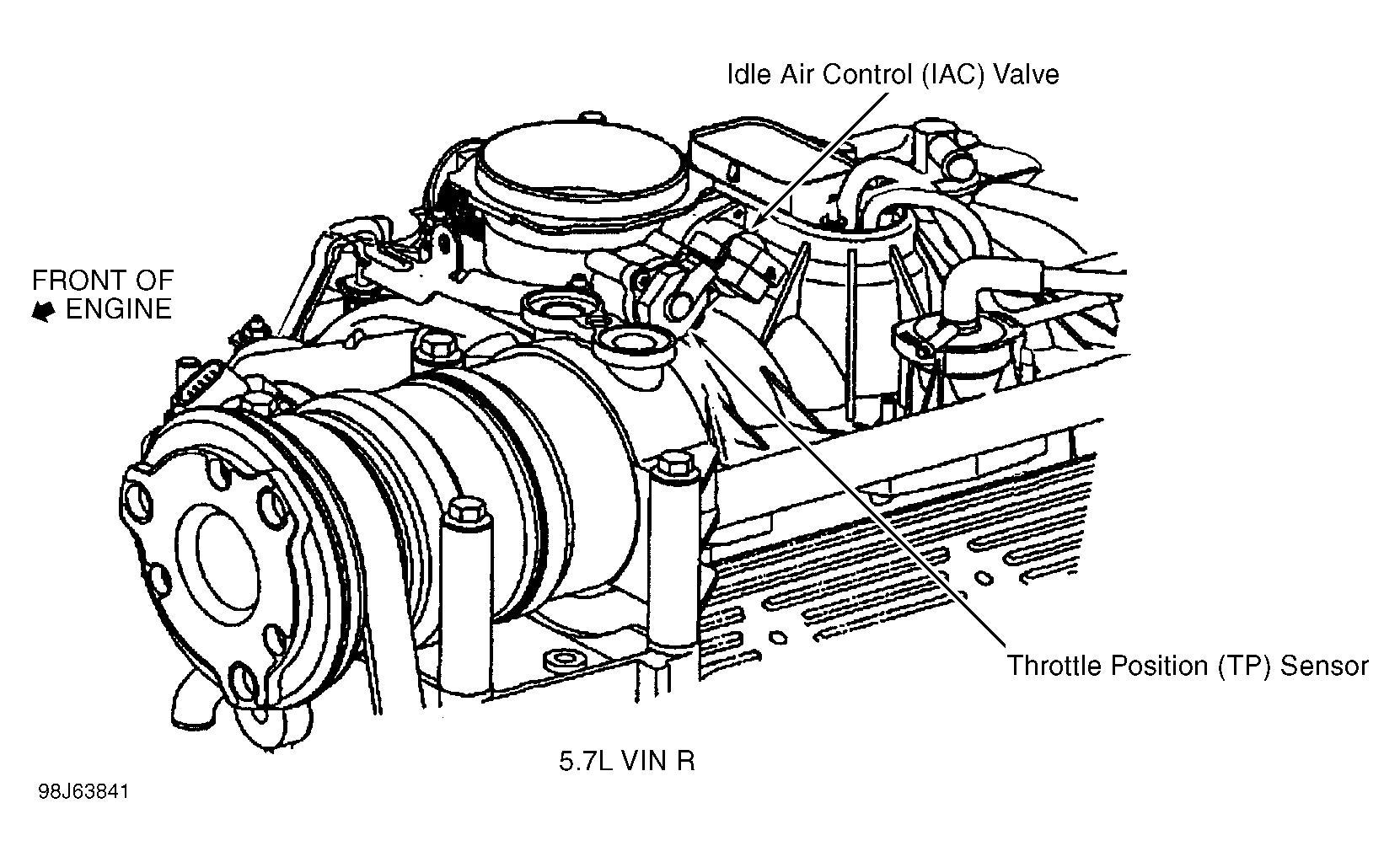

Fig 2: Top Front Of Engine (5.7L VIN R)

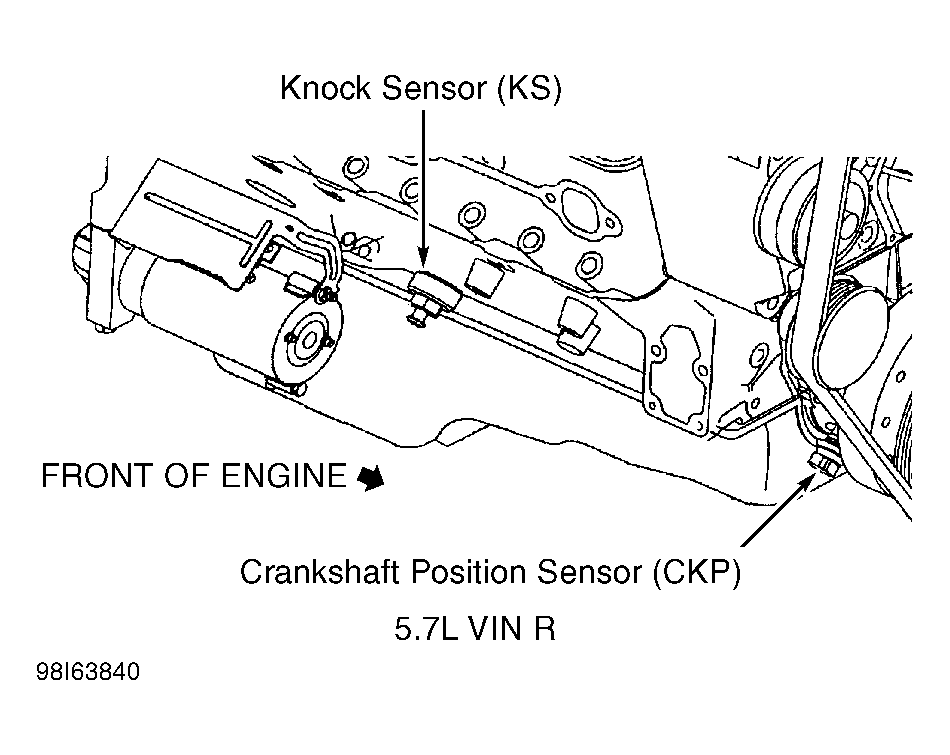

Fig 3: Lower Right Side Of Engine (5.7L VIN R)

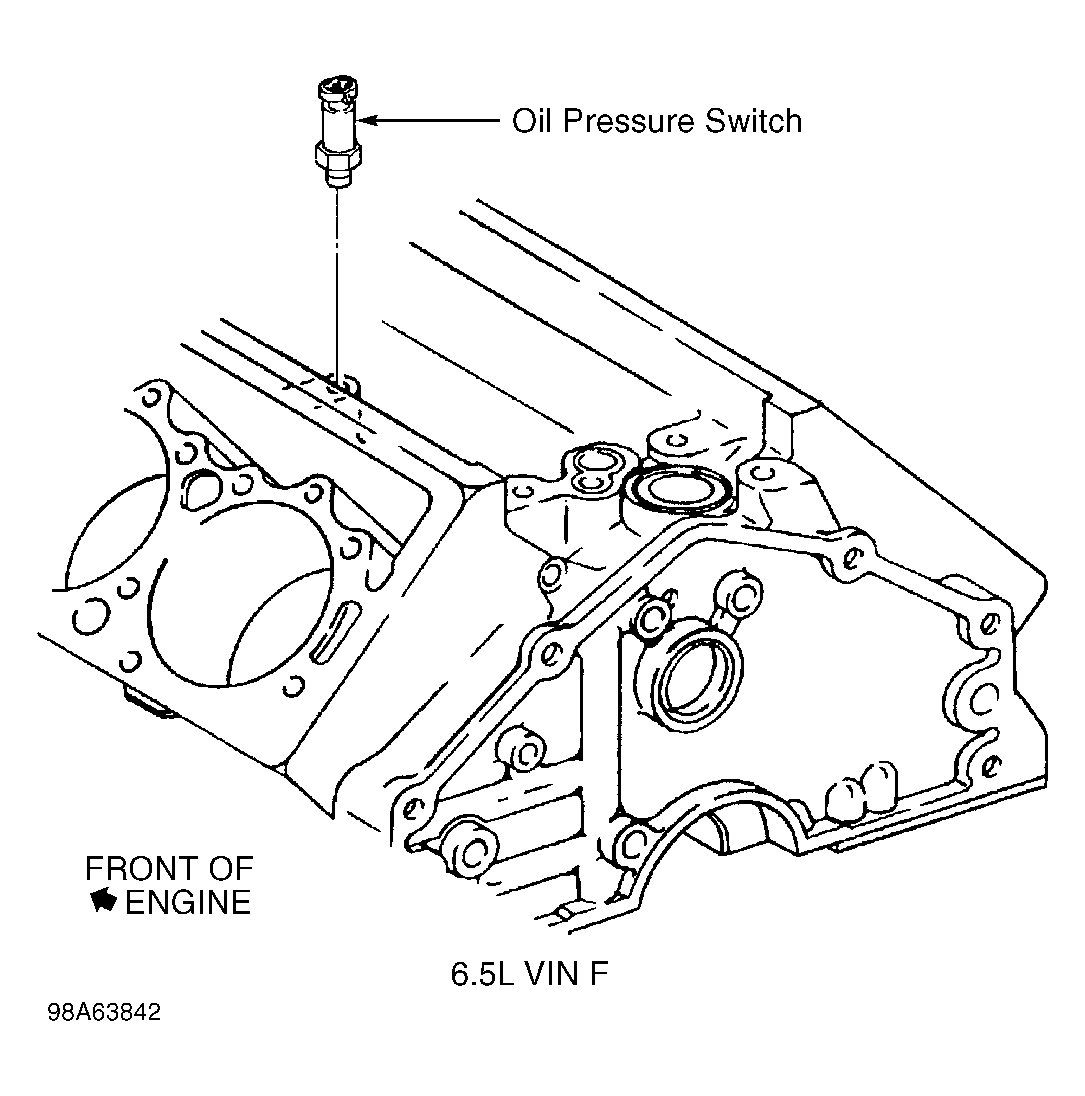

Fig 4: Rear Of Engine Block (6.5L VIN F)

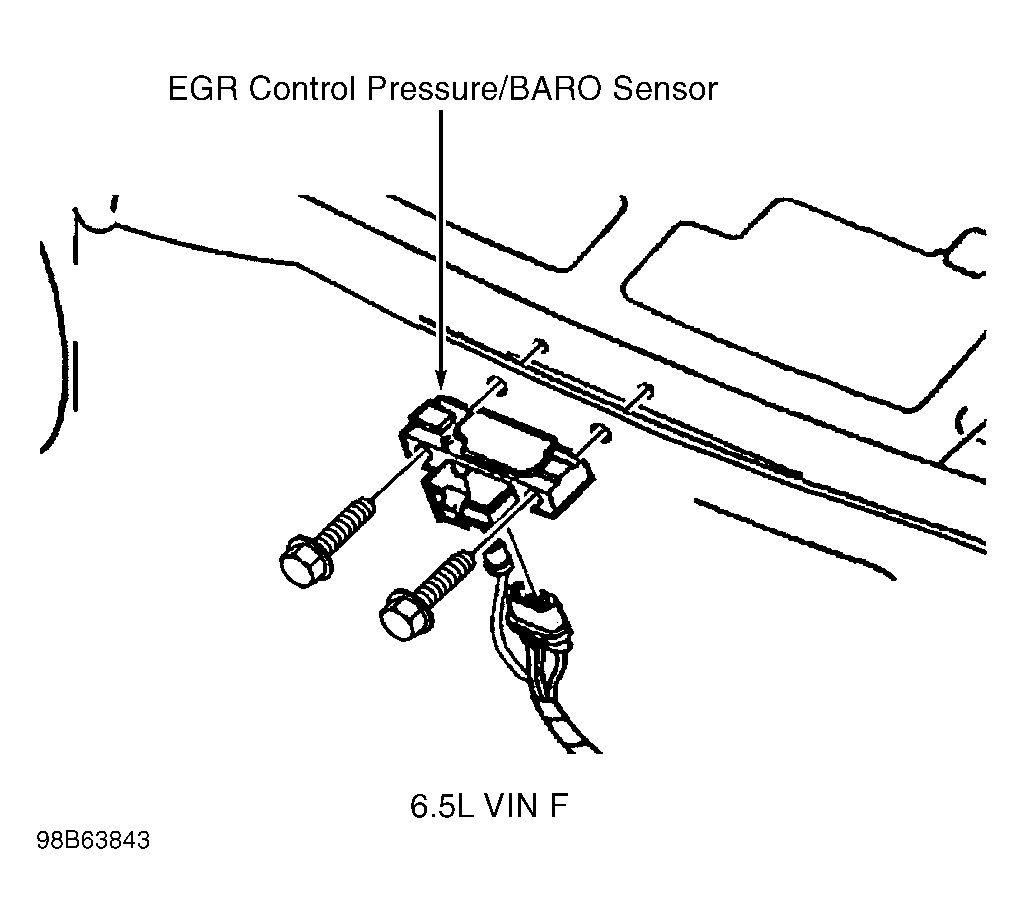

Fig 5: Rear Of Engine Compartment (6.5L VIN F)

Fig 6: Top Of Intake Manifold (6.5L VIN F)

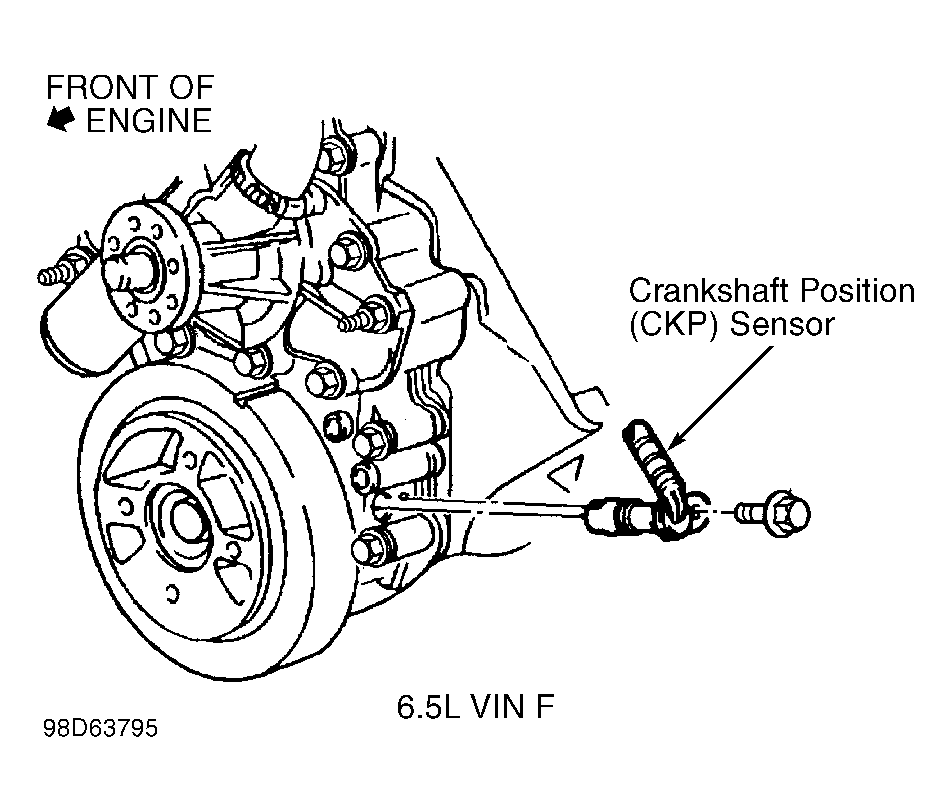

Fig 7: Lower Front Of Engine (6.5L VIN F)

Fig 8: Injection Pump Components (6.5L VIN F)

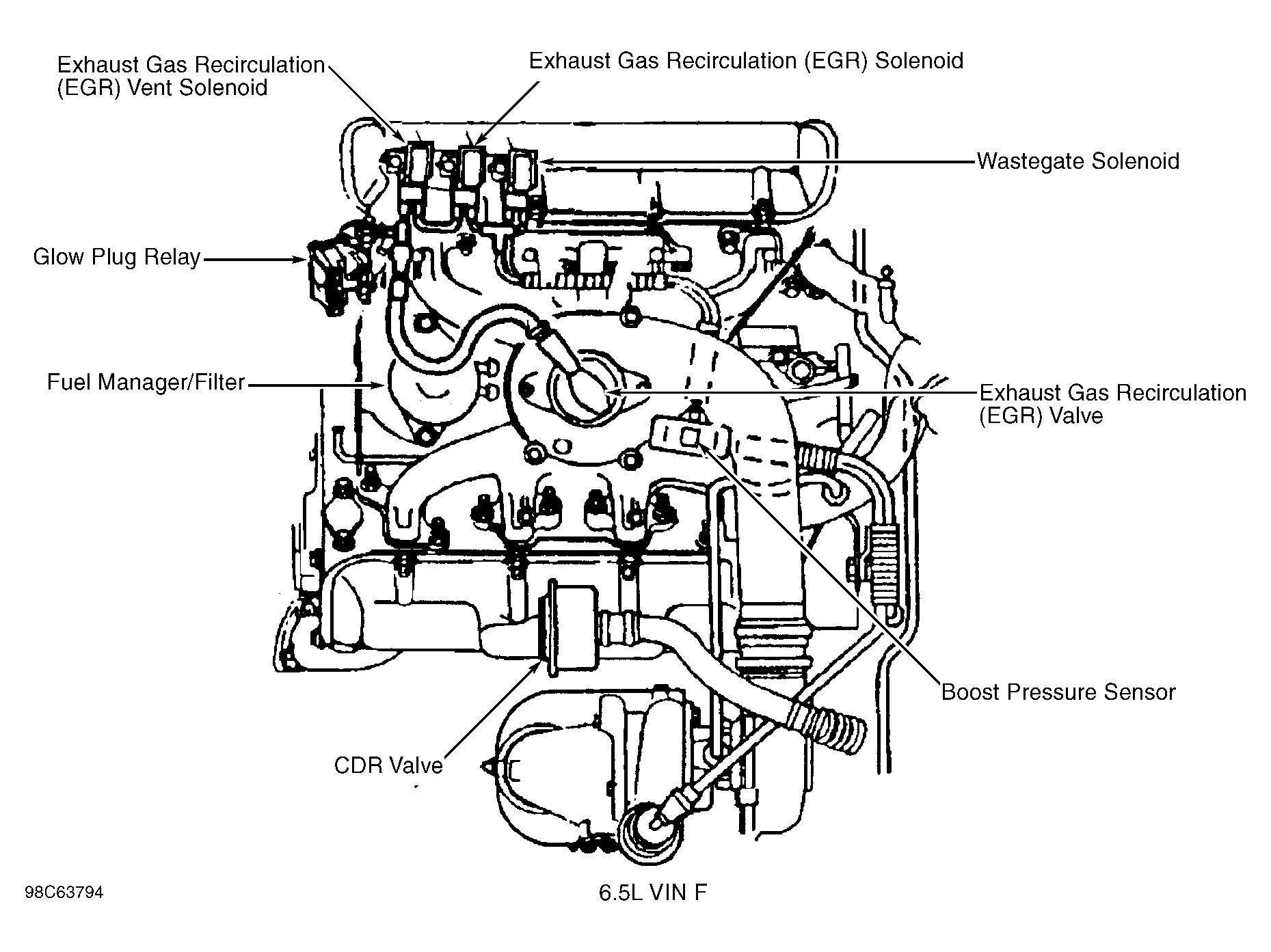

Fig 9: Top Of Engine (6.5L VIN F)

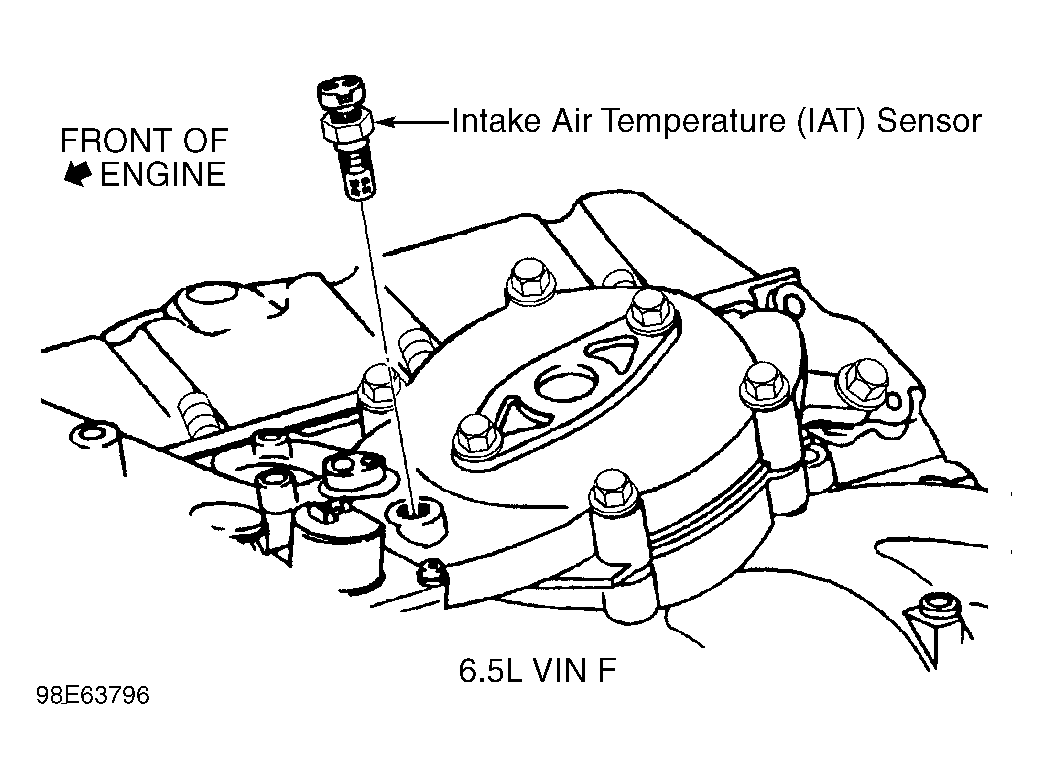

Fig 10: Rear Of Intake Manifold (6.5L VIN F)

Fig 11: Right Side Of Engine (7.4L VIN J)

Fig 12: Left Side Of Engine Compartment

Fig 13: Lower Left Side Of Dash
