Connector Identification

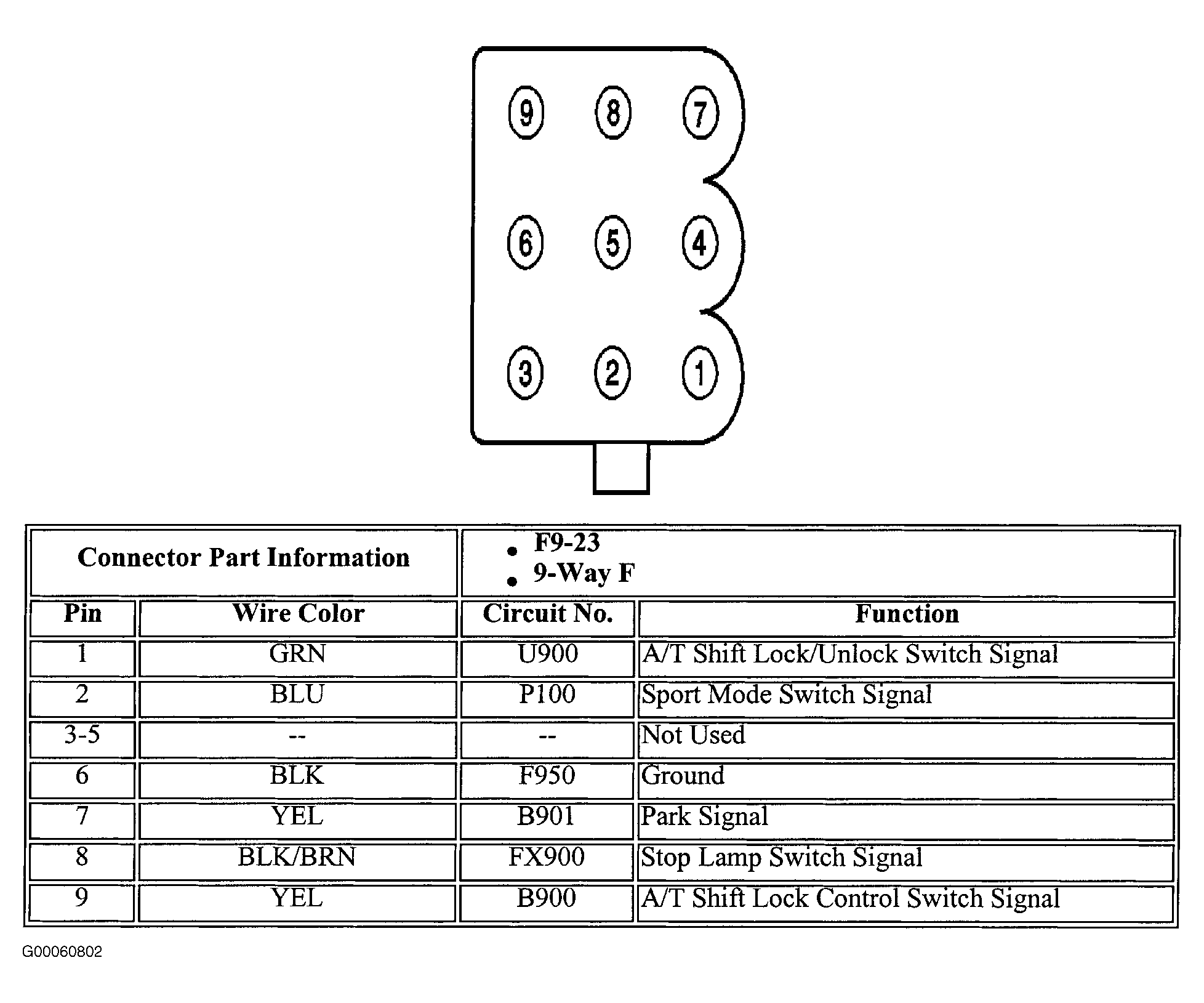

Fig 1: Identifying A/T Shift Lever Connector Terminals
Courtesy of GENERAL MOTORS CORP.

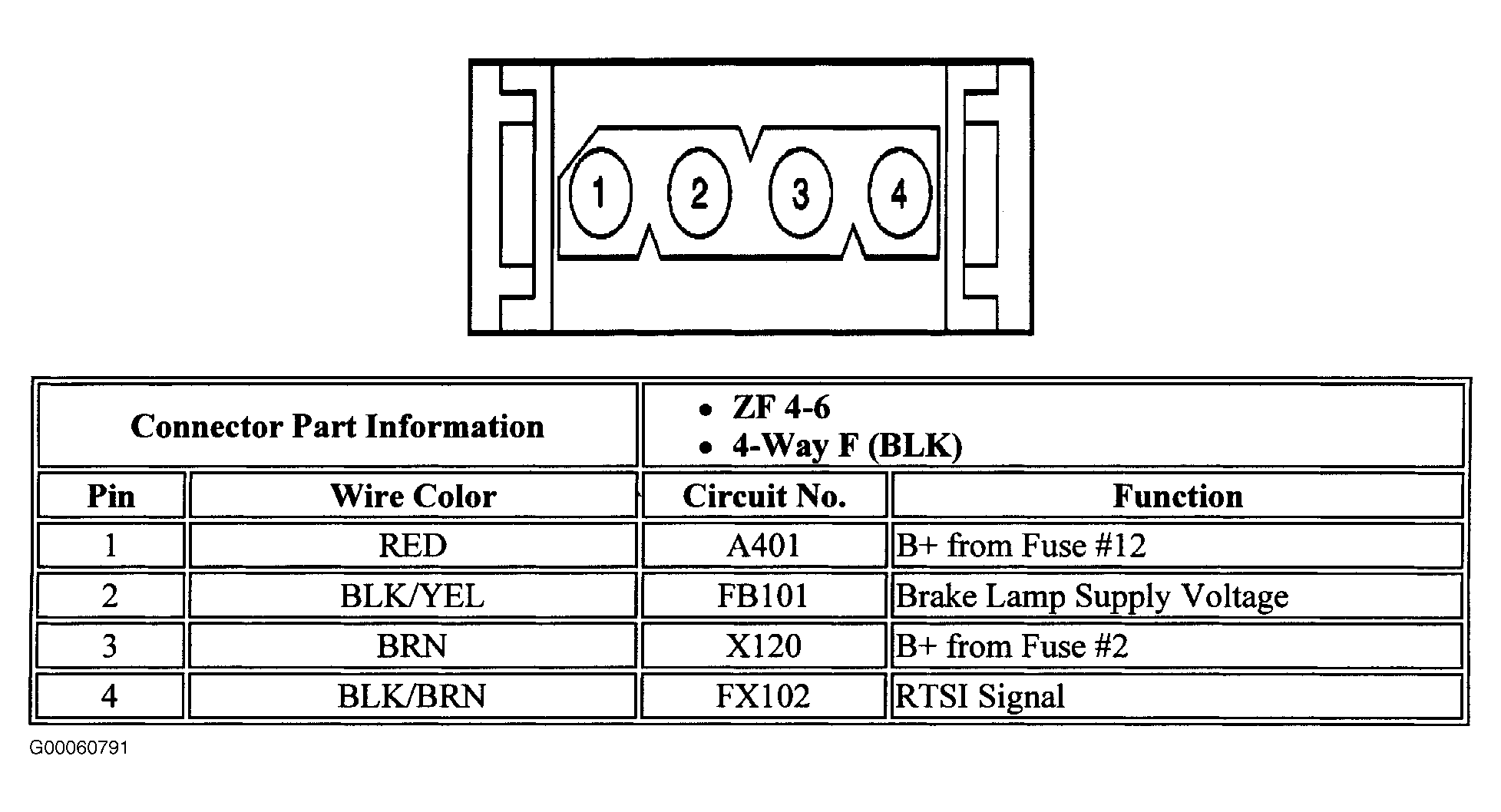

Fig 2: Identifying Stoplamp Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
