Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 and Fig 2 .

COMPONENT LOCATIONS

Component	Location
Door Modules	Behind Door Trim Panel In Respective Door
DRV MDL fuse (10-amp)	In Rear Fuse Block
Memory Function Switch	In Driver Door Switch Assembly
Mirror Control Switches	In Driver Door Switch Assembly
PASS MDL fuse (10-amp )	In Rear Fuse Block
Rear Fuse Block	Under Left Rear Passenger Seat Cushion

Fig 1: Identifying Rear Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

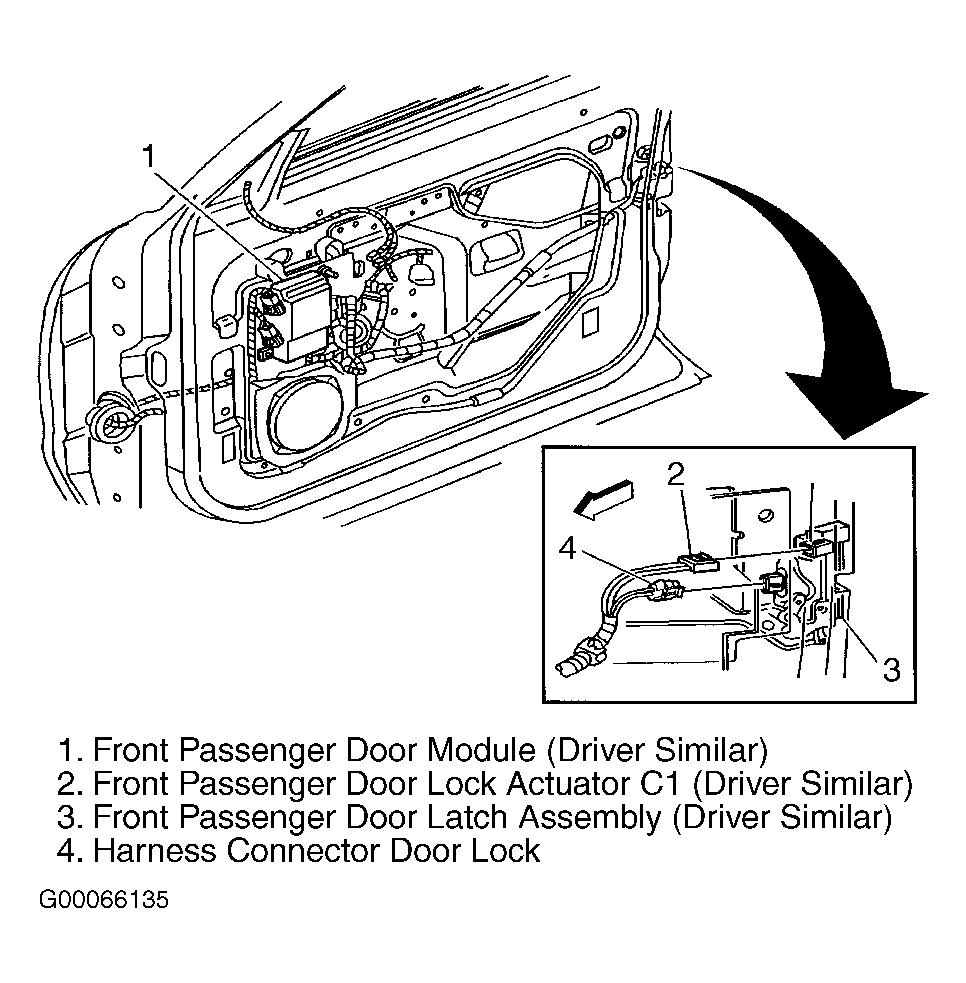

Fig 2: Locating Door Components (Passenger's Shown; Others Are Similar)

Courtesy of GENERAL MOTORS CORP.
