Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

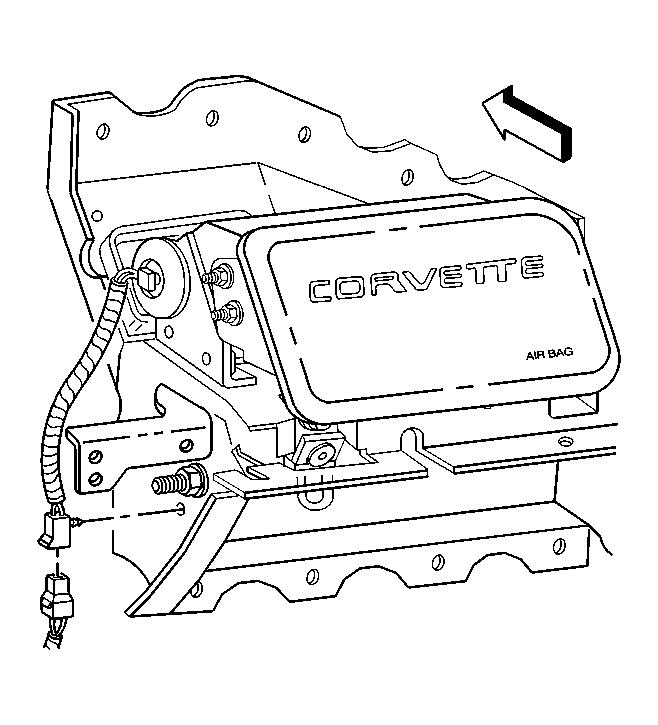

Fig 1: Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and Notices.

CAUTION: Refer to SIR Caution in Cautions and Notices.

Disable the SIR system. Refer to SIR Disabling and Enabling Zone 5 .
Remove the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
Remove the connector position assurance (CPA) from the I/P module harness connector.

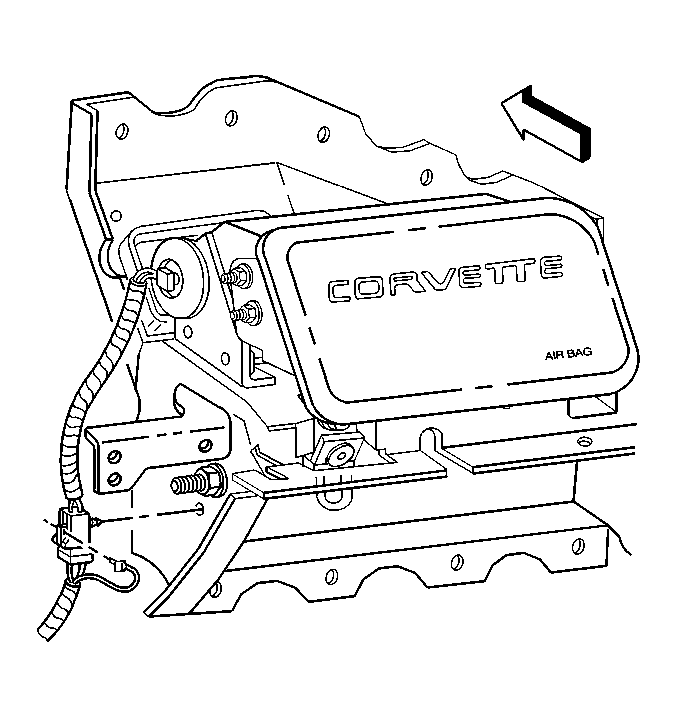

Fig 2: I/P Module & Pigtail Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the pigtail connector from the I/P module.

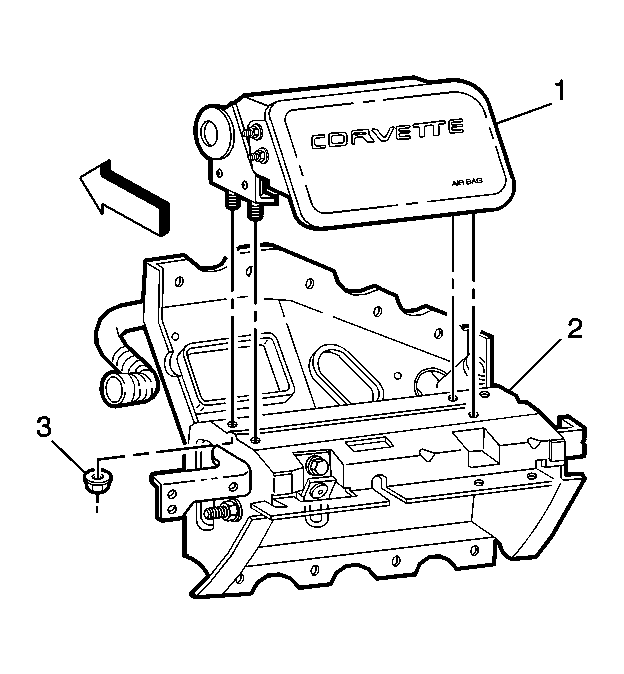

Fig 3: I/P Module, Mounting Fasteners & Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the mounting fasteners (3) from the I/P module.
Remove the I/P module (1) from the bracket (2).
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
