Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

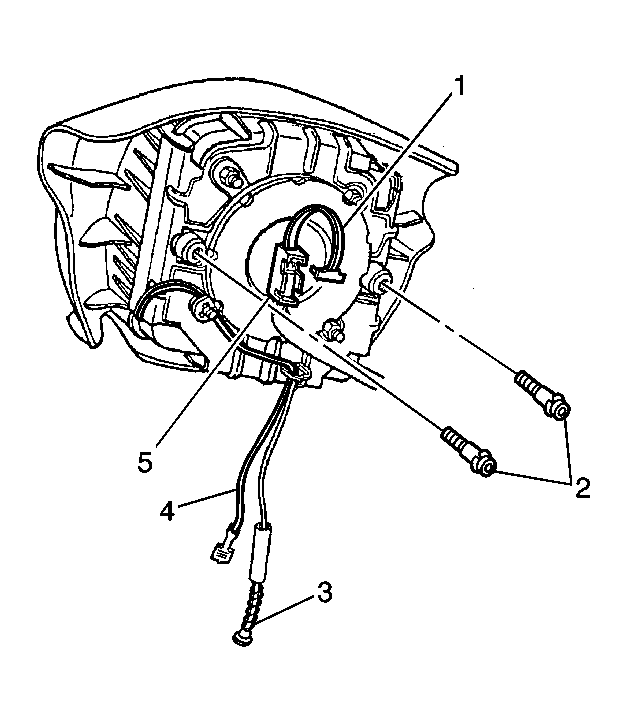

    Fig 1: Inflatable Restraint Steering Wheel Module & Screws
    GM70112Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the inflatable restraint steering wheel module (3) and secure with the retaining screws (2).

    Tighten:  Tighten the screws to 6 N.m (54 lb in).

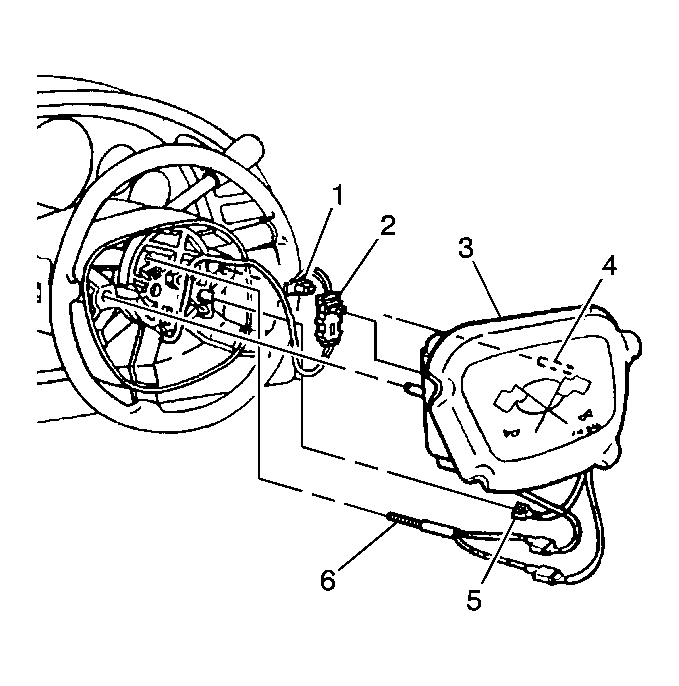

    2. Fig 2: Inflatable Restraint Module, Steering Wheel Module, Ground Wire, Horn Wiring Harness & Screws
    GM70113Courtesy of GENERAL MOTORS CORP.
  2. Connect the ground wire (5) to the steering column.
  3. Connect the horn wiring harness (6) to the steering column.
  4. Connect the electrical connector (2) to the back of the steering wheel module (3).
  5. Install the CPA (1) to the electrical connector (2).
  6. Install the inflatable restraint module (3) onto the steering wheel by pushing on both sides of the module until the retaining screws snap into place.
  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
