Installation Procedure

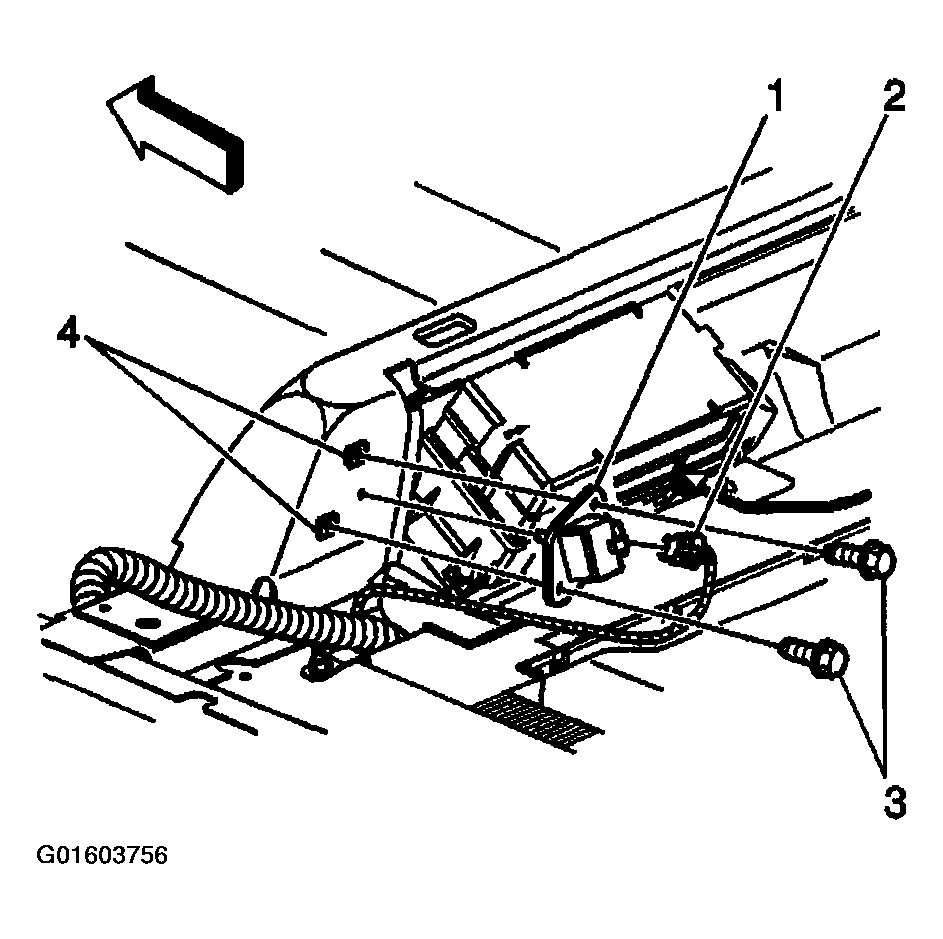

    Fig 1: Installing Lateral Accelerometer Sensor
    G01603756Courtesy of GENERAL MOTORS CORP.
  1. Install the lateral accelerometer sensor (1).

    Refer to FASTENER NOTICE .

  2. Install the 2 lateral accelerometer sensor screws (3).

    Tighten

    Tighten the 2 lateral accelerometer sensor screws to 2.4 N.m (21 lb in).

  3. Connect the lateral accelerometer sensor electrical connector (2).
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  5. Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
