Engine Electrical Component Views

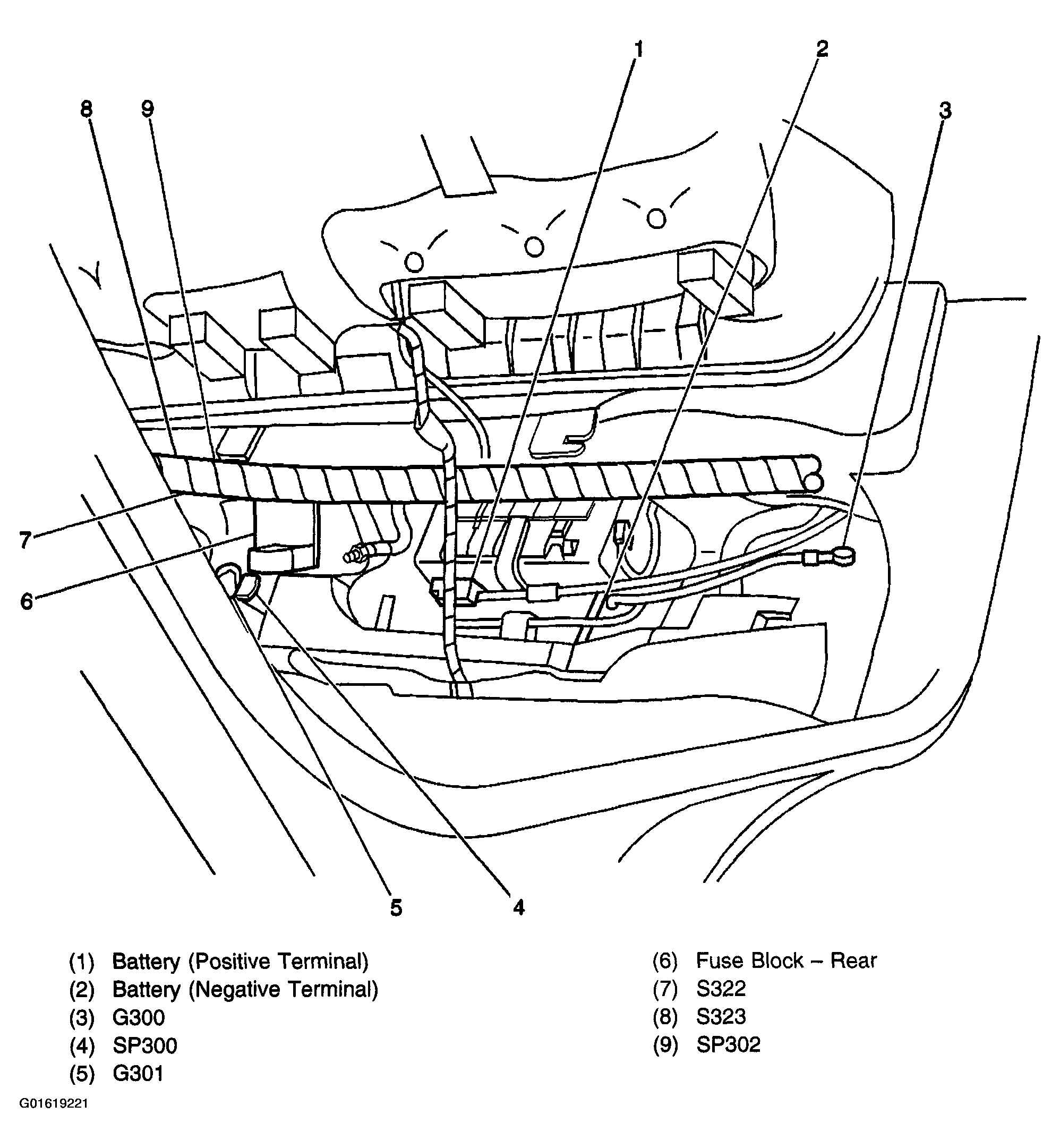

Fig 1: Right Rear of Passenger Compartment, Under Rear Seat
G01619221Courtesy of GENERAL MOTORS CORP.

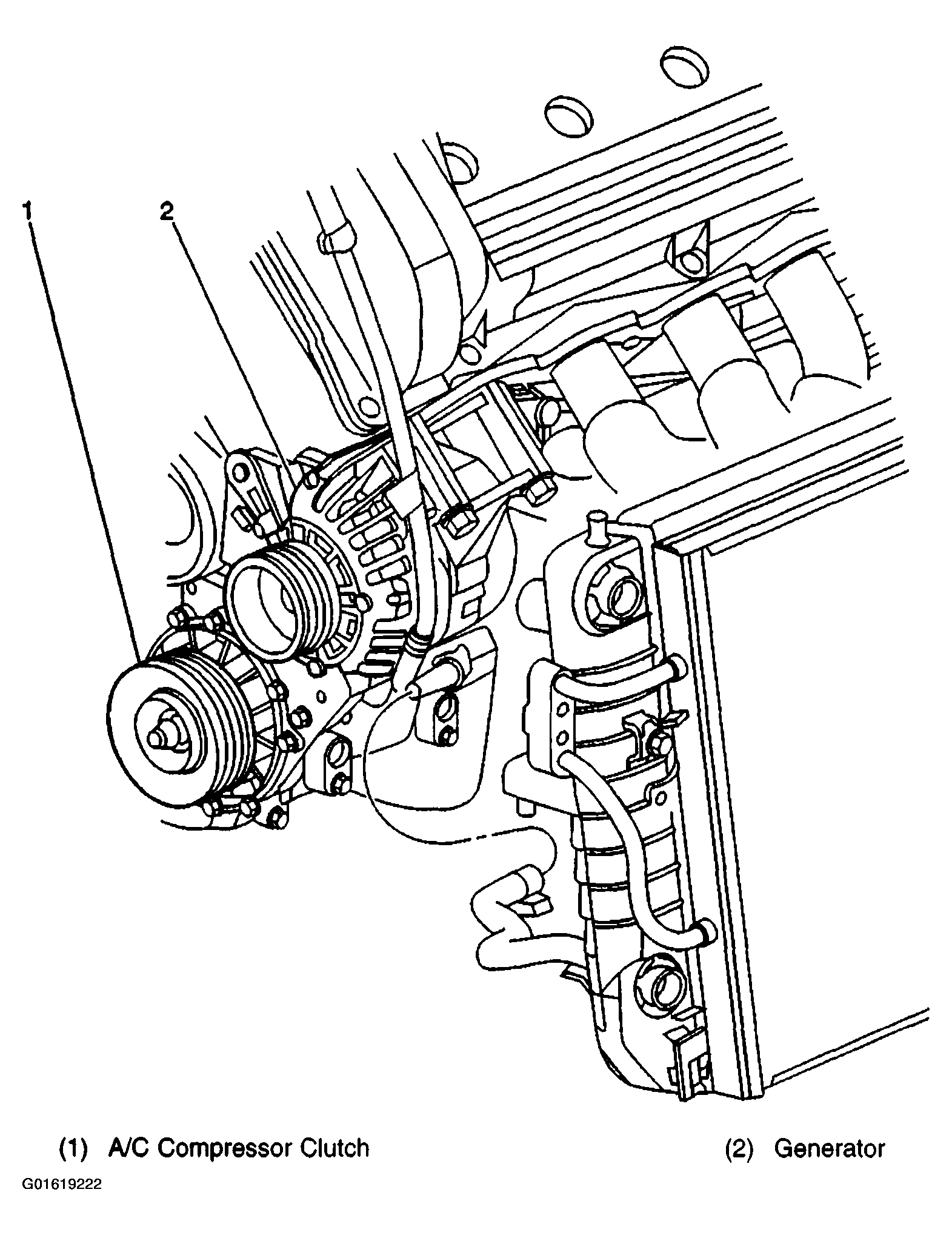

Fig 2: Engine Compartment, Lower Right Side of Engine
G01619222Courtesy of GENERAL MOTORS CORP.

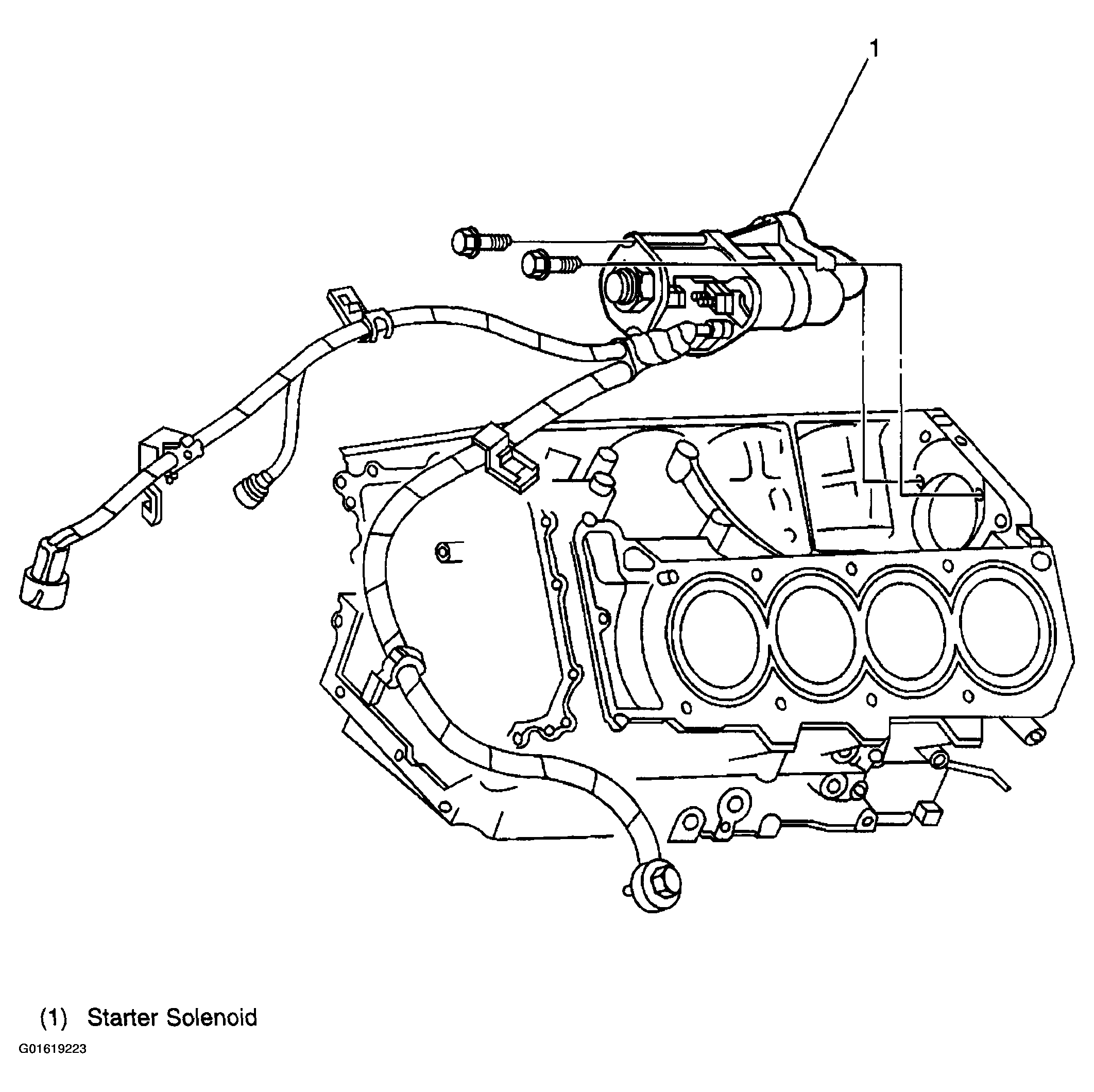

Fig 3: Engine Compartment, Under Intake Manifold Center
G01619223Courtesy of GENERAL MOTORS CORP.

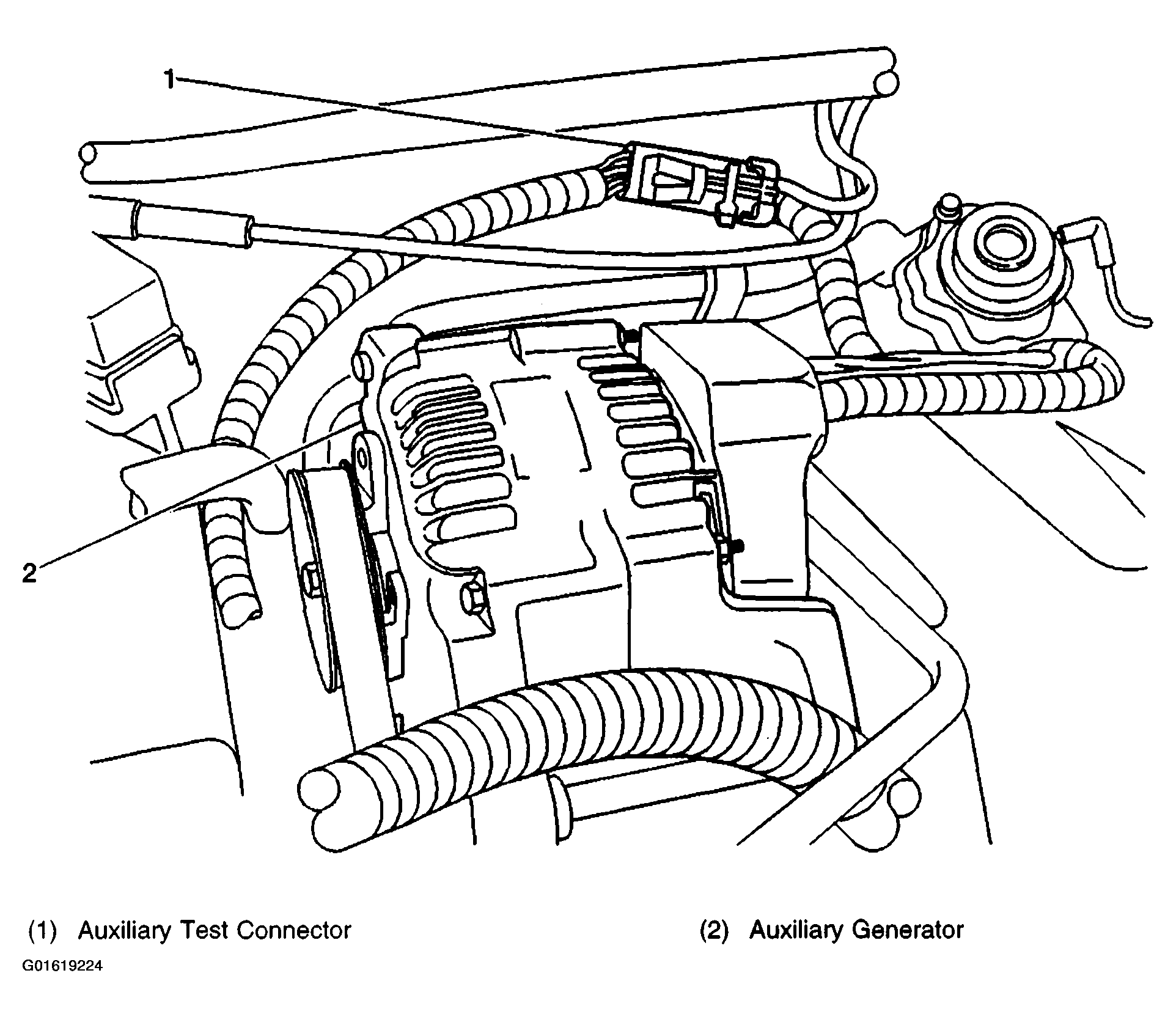

Fig 4: Auxiliary Generator (V4U Only)
G01619224Courtesy of GENERAL MOTORS CORP.
