Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DIM module to the bracket.
  2. Slide the DIM module upward until the DIM module and the locking tab are fully engaged.

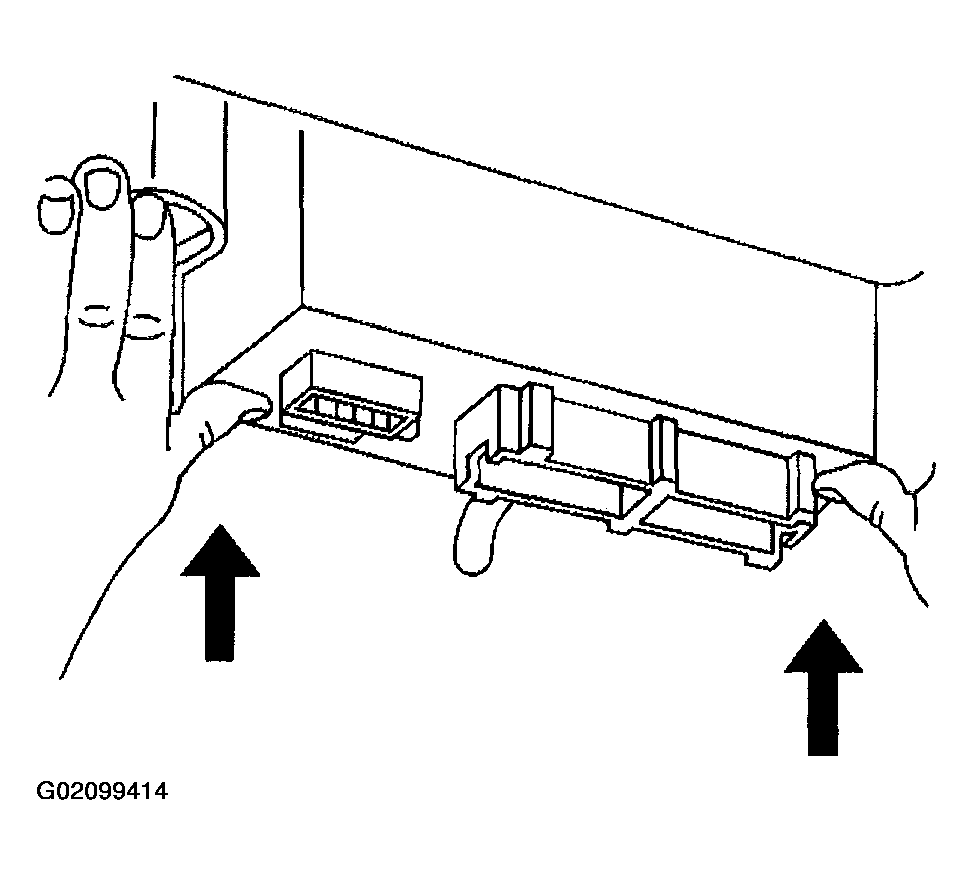

    Fig 1: Installing DIM Module To Bracket
    G02099414Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM module electrical connectors (2).
  4. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT
  5. Reprogram the DIM module (1). Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  or BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (DIM)  .

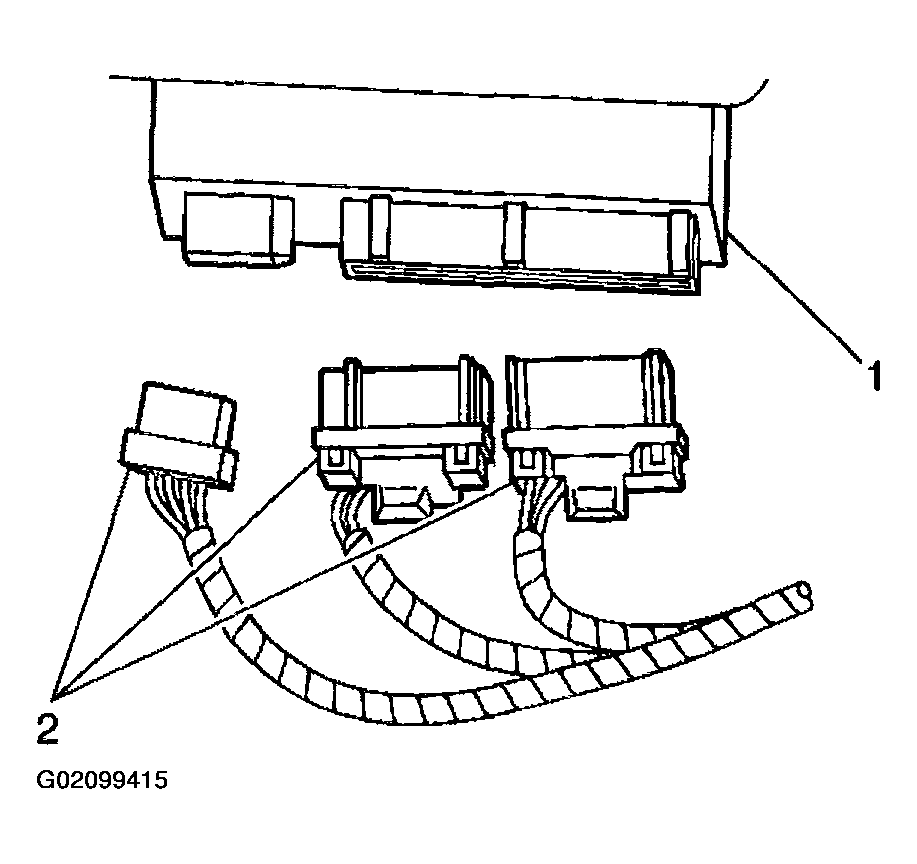

    Fig 2: Connecting DIM Module Electrical Connectors
    G02099415Courtesy of GENERAL MOTORS CORP.
