Installation Procedure

  1. Align the traction control switch to the instrument panel storage compartment switch hole opening.
  2. Push the traction control switch inward to fasten.
  3. Align the instrument panel storage compartment switch plate bezel to the instrument panel storage compartment.
  4. Push inward to fasten the bezel.
  5. Install the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - IP in Instrument Panel, Gauges and Console.

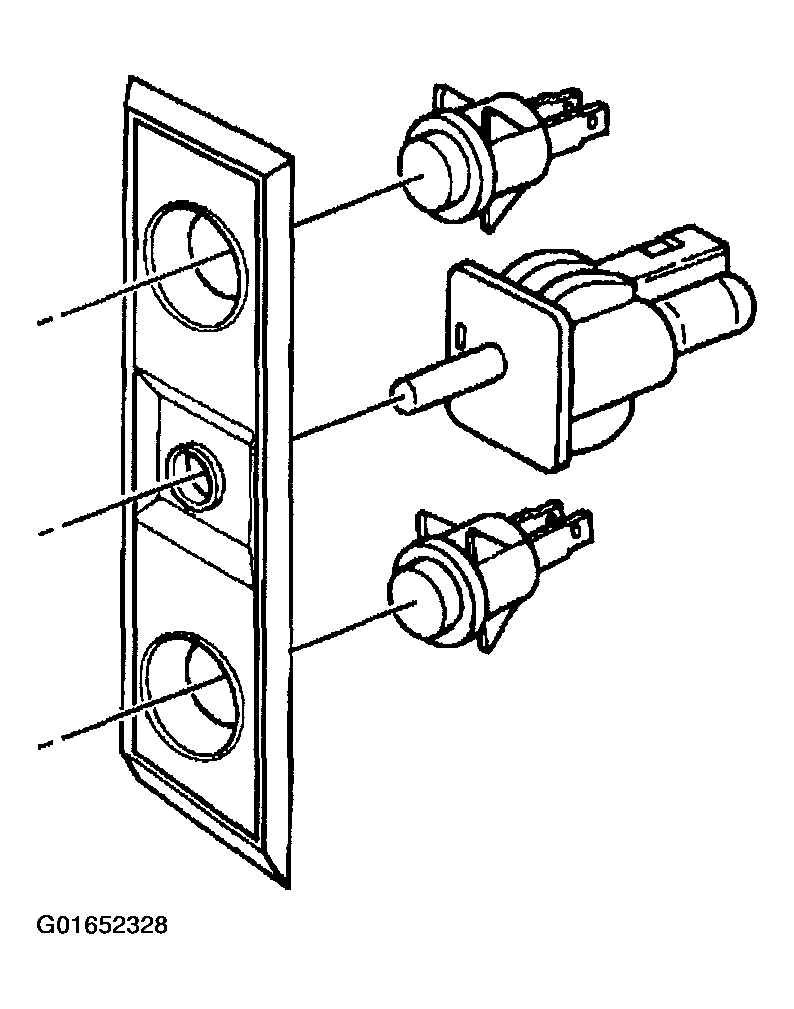

Fig 1: Traction Control Switch
G01652328Courtesy of GENERAL MOTORS CORP.
