Home >> Cadillac >> 2002 >> Escalade EXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Window Handle Replacement >> Removal Procedure

Removal Procedure

  1. Open the door.

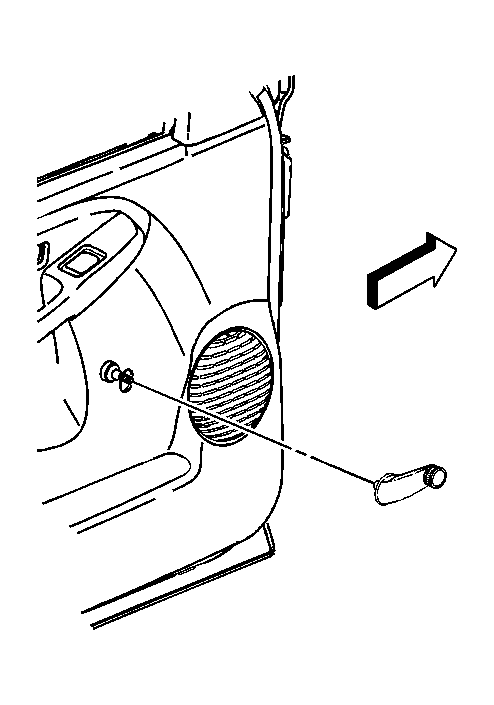

    2. Fig 1: Removing Window Handle
    GM348499Courtesy of GENERAL MOTORS CORP.
  2. Remove the window crank handle using the J 9886-01  .

    Be sure to retain the retainer clip on the back side of the handle.
