Home >> Cadillac >> 2002 >> Escalade EXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Repair Instructions >> Quarter Window Replacement >> Installation Procedure

Installation Procedure

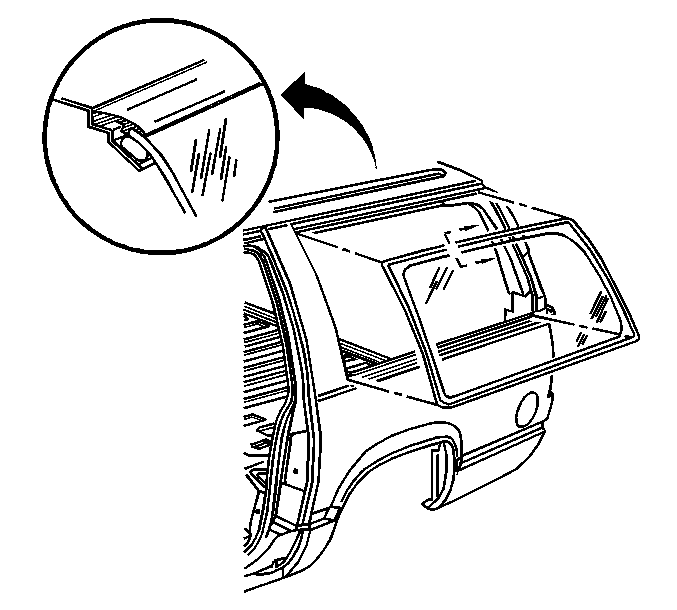

    Fig 1: Installing Window Into Opening
    GM264809Courtesy of GENERAL MOTORS CORP.
  1. Install the quarter window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the right of left side applique.
  3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  4. Close the liftgate window.
