Installation Procedure

  1. Install the stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .

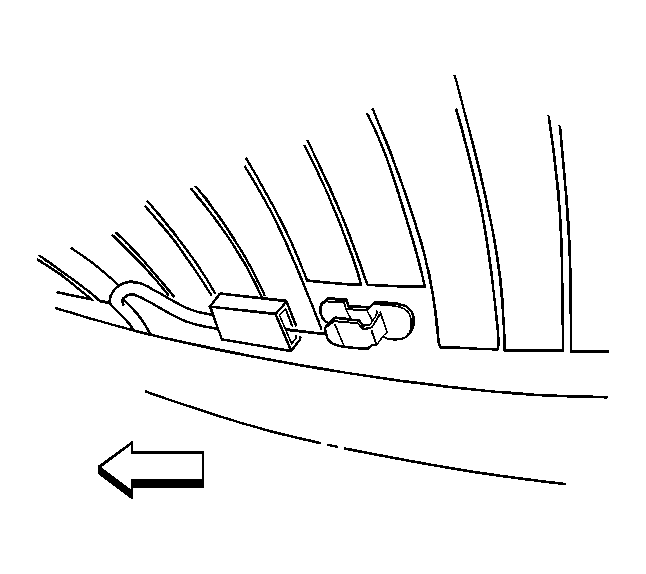

    2. Fig 1: Connecting Electrical Connector
    GM379401Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the window defogger, if equipped.
  3. Install the window garnish molding to the door frame. Refer to TRIM PANEL REPLACEMENT - REAR DOOR .
  4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
