Installation Procedure

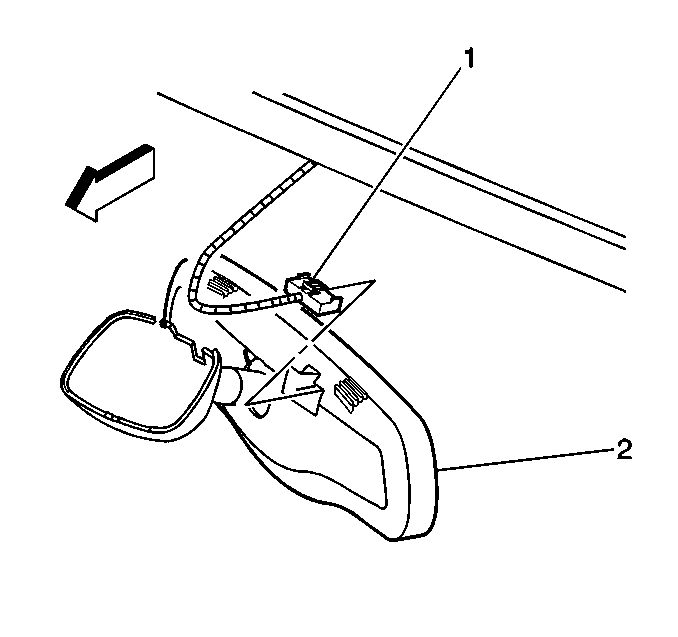

    Fig 1: Electrical Connector
    GM375840Courtesy of GENERAL MOTORS CORP.
  1. Slide the mirror onto the mirror support.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the set screw.

    Tighten:  Tighten the set screw to 2 N.m (18 lb in).

  3. Connect the electrical connector (1), if equipped.
  4. Install the wire cover, if equipped.
