Removal Procedure

  1. Raise the vehicle.
  2. Remove the Allen bolt (2) from the Brake Pressure Modulator Valve (BPMV) mounting bracket (3) located on the sensor side.
  3. Raise the BPMV to access the brake fluid pressure sensor.

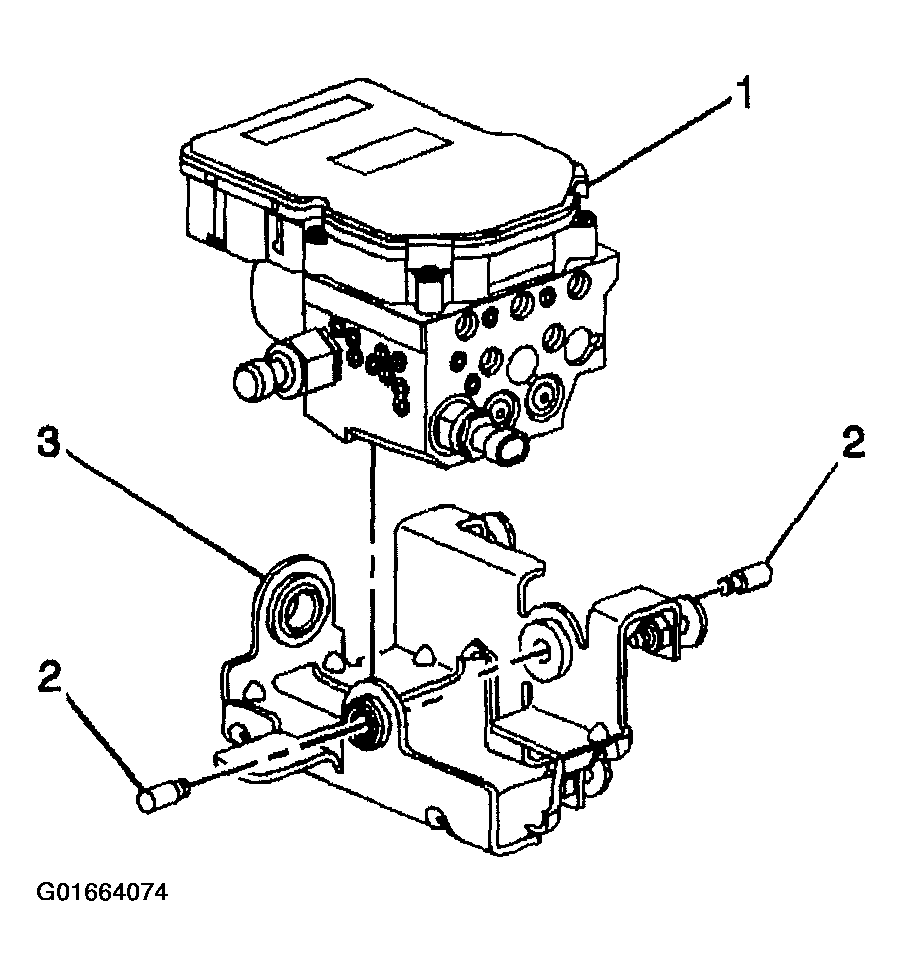

    4. Fig 1: Removal Of BPMV Bracket & Bolts
    G01664074Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the brake fluid pressure sensor.
    Fig 2: Removal Of Electrical Connector From Brake Fluid Pressure Sensor
    G01664075Courtesy of GENERAL MOTORS CORP.
    NOTE: The replacement of the old brake fluid pressure sensor must be performed quickly to reduce the amount of fluid that is lost during the procedure.
  5. Use a wrench to keep the brake fluid pressure sensor collar from turning (1). Remove the brake fluid pressure sensor (2) from the BPMV.
    6. Fig 3: Removal Of Brake Fluid Pressure Sensor From The BPMV
    G01664076Courtesy of GENERAL MOTORS CORP.
