Installation Procedure

  1. Connect the harness connector to the traction control switch.
  2. Install the traction control switch (2) into the Instrument Panel (IP) assembly (3), making sure that all of the switch retaining tabs (1) are engaged.
  3. Install Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gauges and Console.

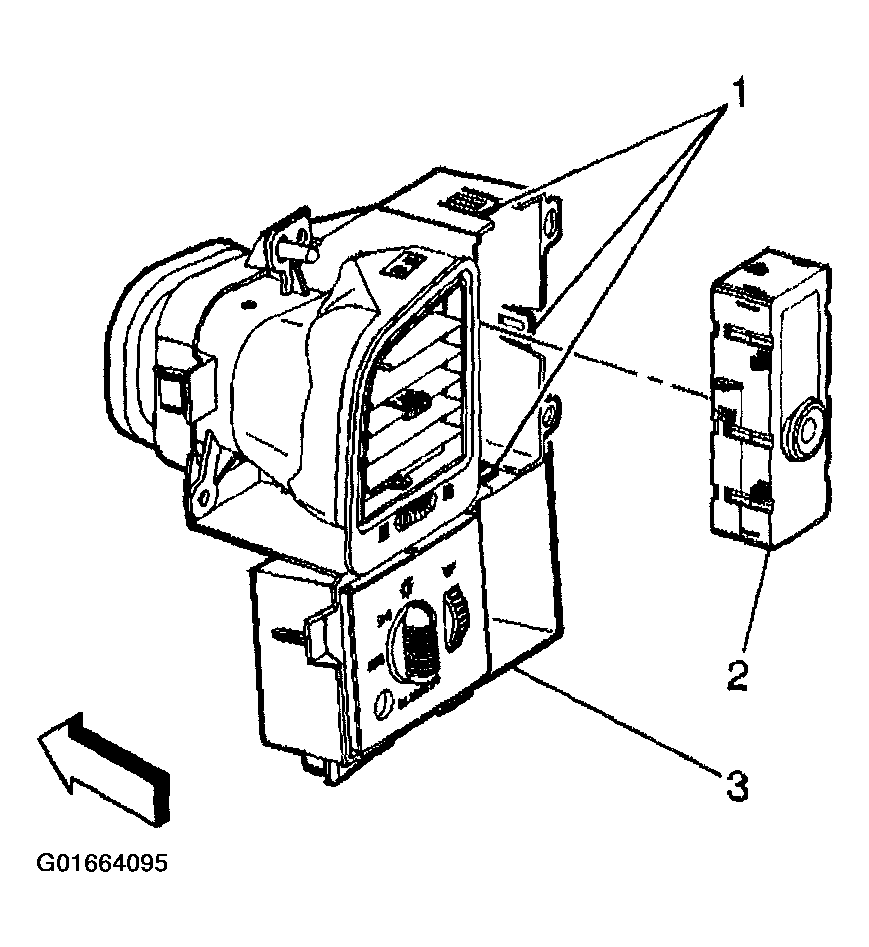

    4. Fig 1: Installation Of The Traction Control Switch
    G01664095Courtesy of GENERAL MOTORS CORP.
