Removal Procedure

  1. Remove Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gauges and Console.
  2. Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the Instrument Panel (IP) assembly (3).
  3. Disconnect the harness connector from the traction control switch.

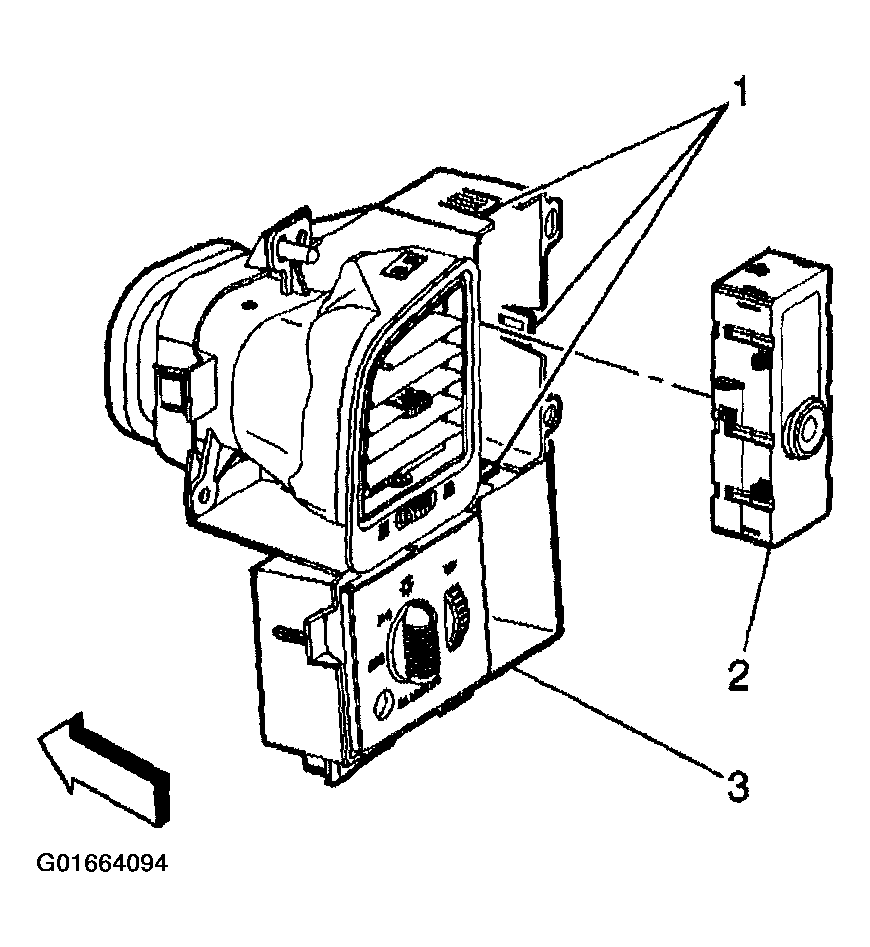

    4. Fig 1: Removal Of The Traction Control Switch
    G01664094Courtesy of GENERAL MOTORS CORP.
