Installation Procedure

  1. Install the WSS (5) into the hub/bearing assembly (4).

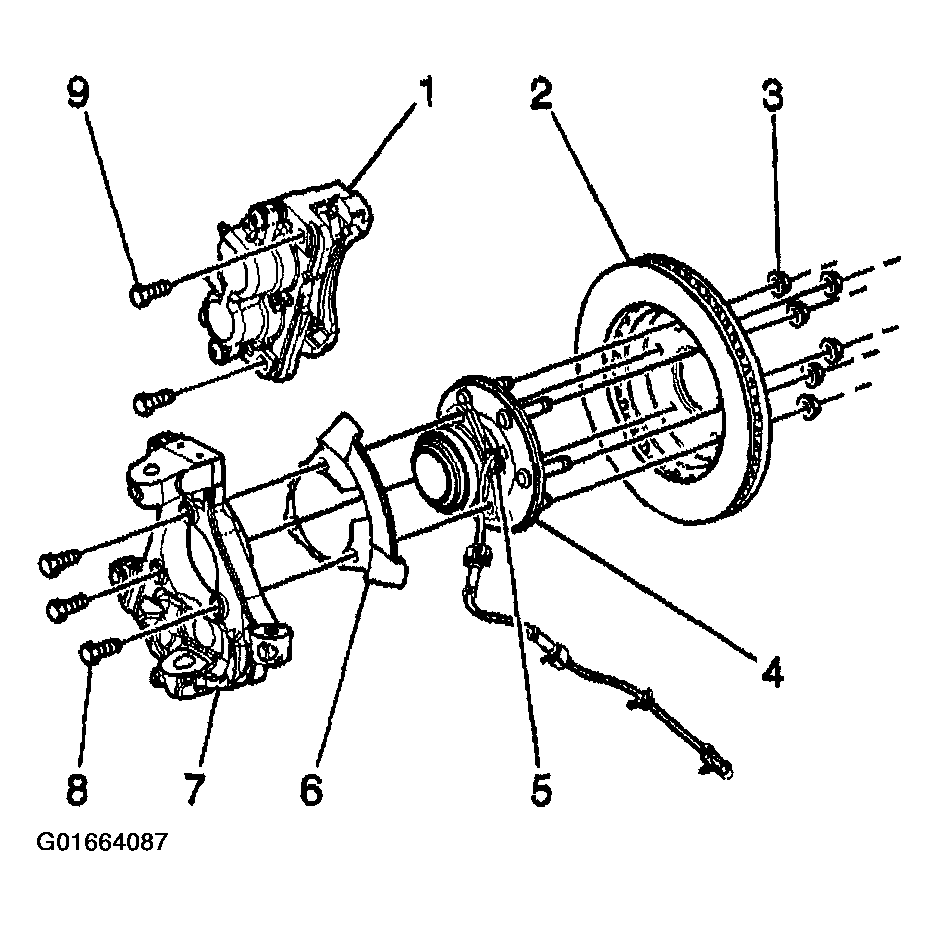

    2. Fig 1: Locating & Installing (WSS) Mounting Bolts & Components
    G01664087Courtesy of GENERAL MOTORS CORP.
  2. Install the WSS mounting bolt. Tighten the WSS mounting bolt to 18 N.m (13 lbs ft).
  3. Install the WSS cable mounting clip to the knuckle.
  4. Install the WSS cable mounting clip to the upper control arm.
  5. Install the WSS cable mounting clip to the frame attachment point.
  6. Connect the WSS cable electrical connector.
  7. Install the brake rotor (2). Refer to BRAKE ROTOR in Disc Brakes.
  8. Install the tire and wheel.
  9. Return to Diagnostic Starting Point - Anti-lock Brake System .
