Home >> Cadillac >> 2002 >> Escalade EXT >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Identifying FTP Sensor Connector End View

Identifying FTP Sensor Connector End View

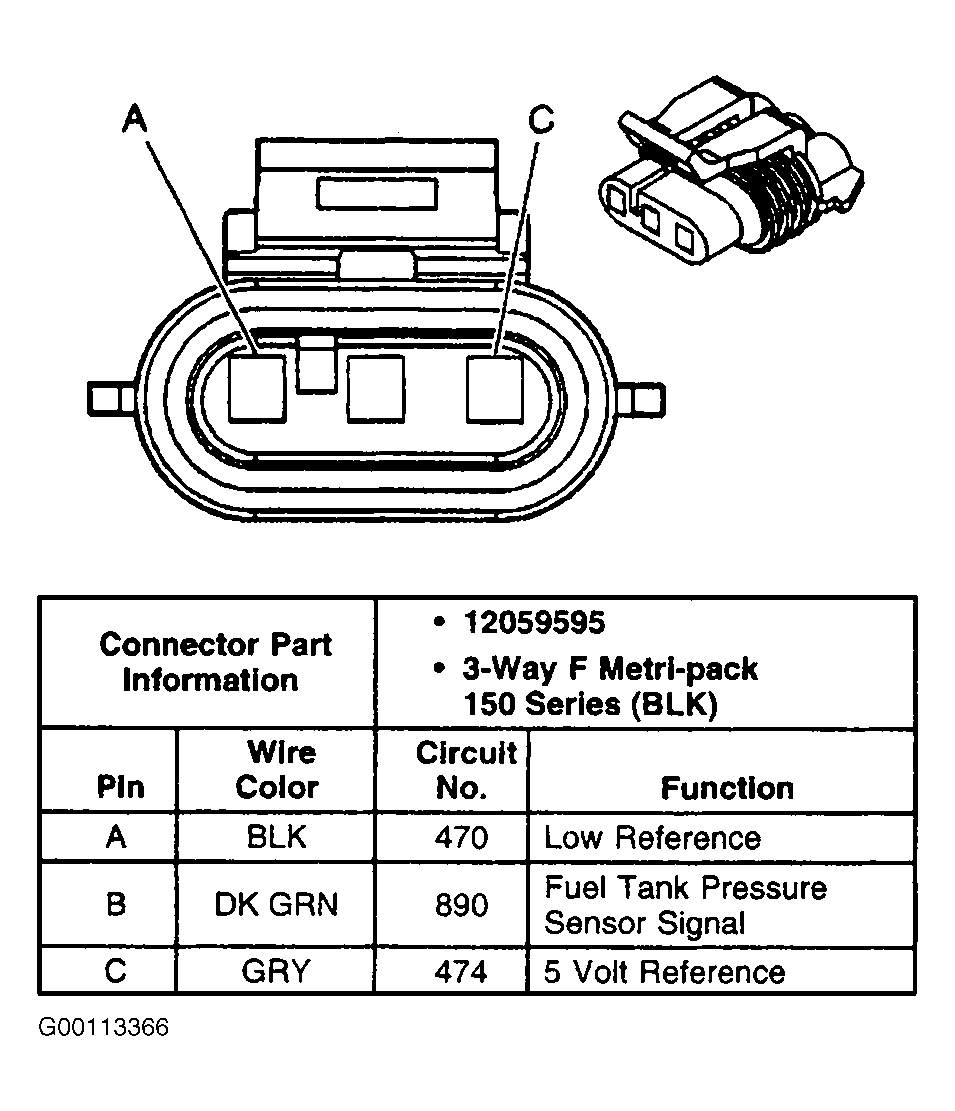

Fig 1: Identifying FTP Sensor Connector End View
G00113366Courtesy of GENERAL MOTORS CORP.


Fig 1: Identifying FTP Sensor Connector End View
G00113366Courtesy of GENERAL MOTORS CORP.
