Identifying HVAC Control Module-C1 Harness Connector End View
Identifying HVAC Control Module-C1 Harness Connector End View

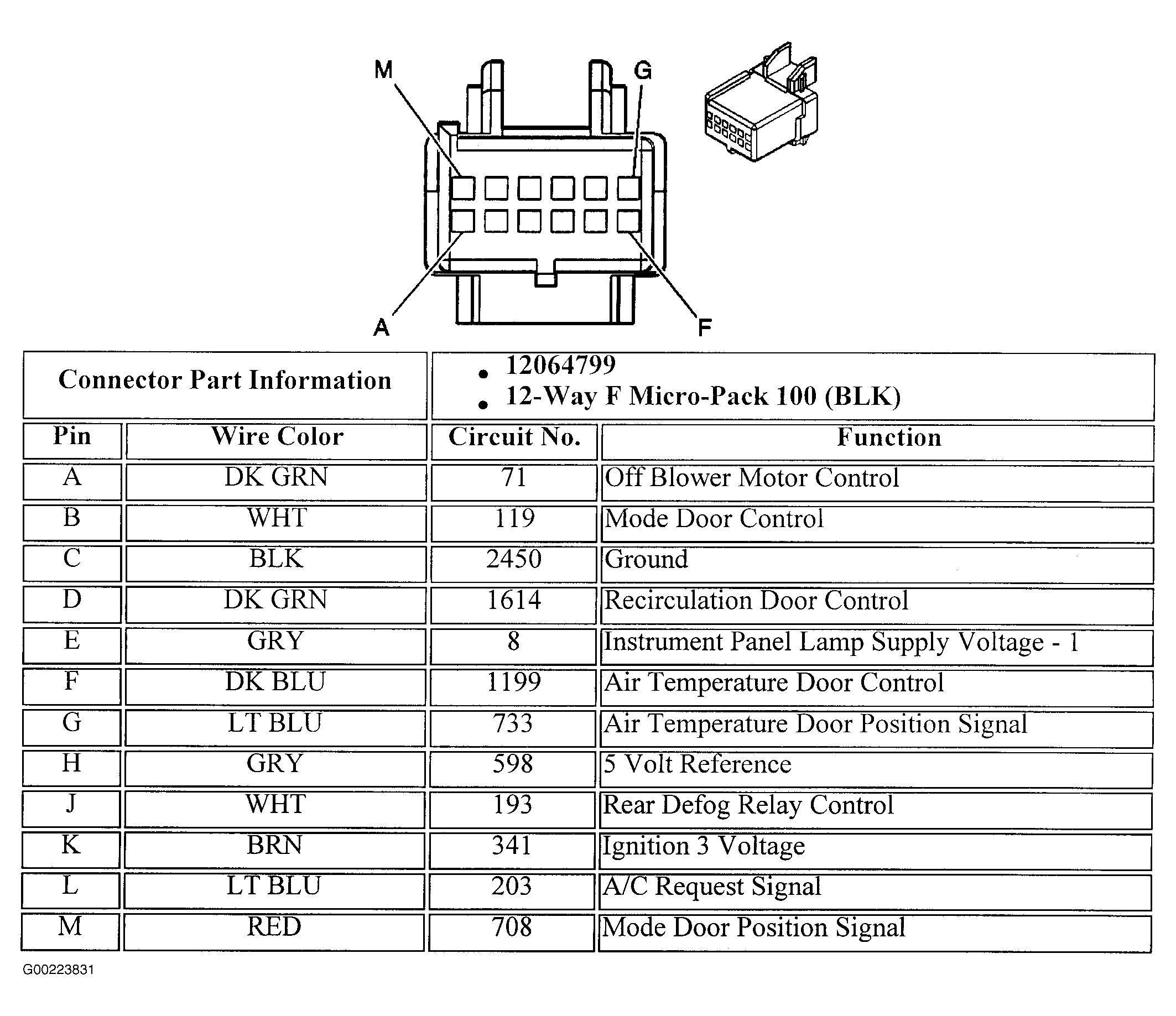

Fig 1: Identifying HVAC Control Module-C1 Harness Connector End View
