Home >> Cadillac >> 2002 >> Escalade EXT >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Identifying TP Sensor Connector End View

Identifying TP Sensor Connector End View

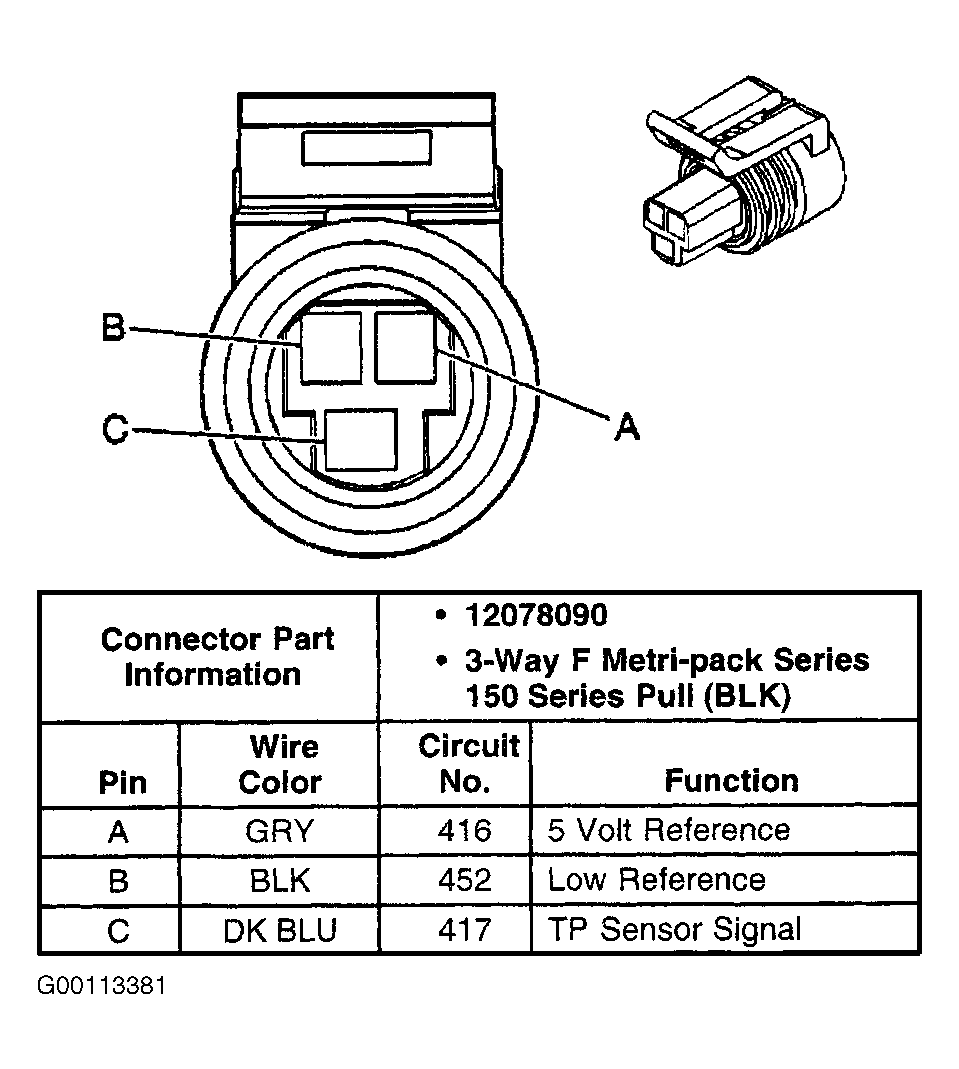

Fig 1: Identifying TP Sensor Connector End View
G00113381Courtesy of GENERAL MOTORS CORP.

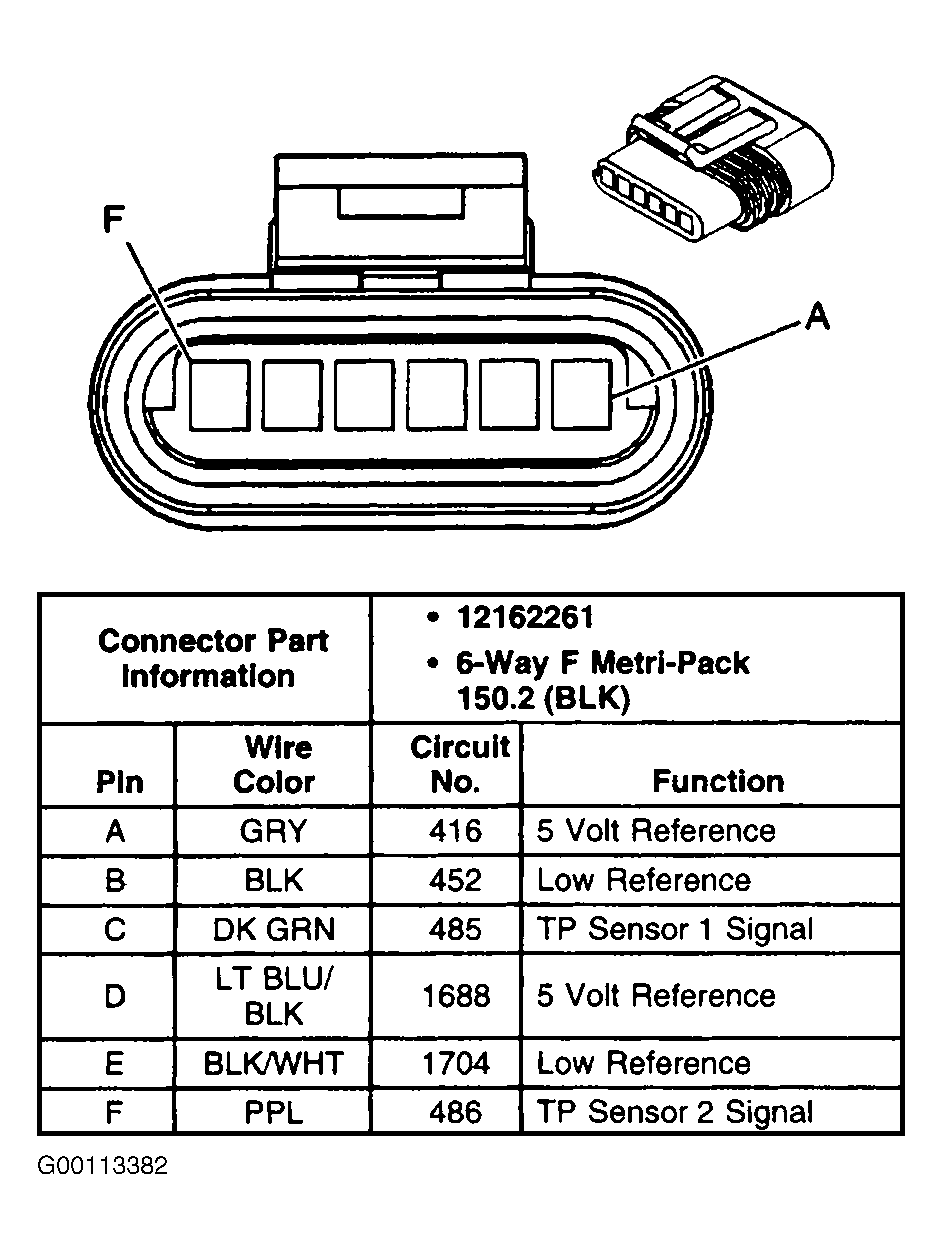

Fig 1: Identifying TP Sensor Connector End View
G00113382Courtesy of GENERAL MOTORS CORP.
