Identifying Throttle Actuator Control Module Connector End View C1

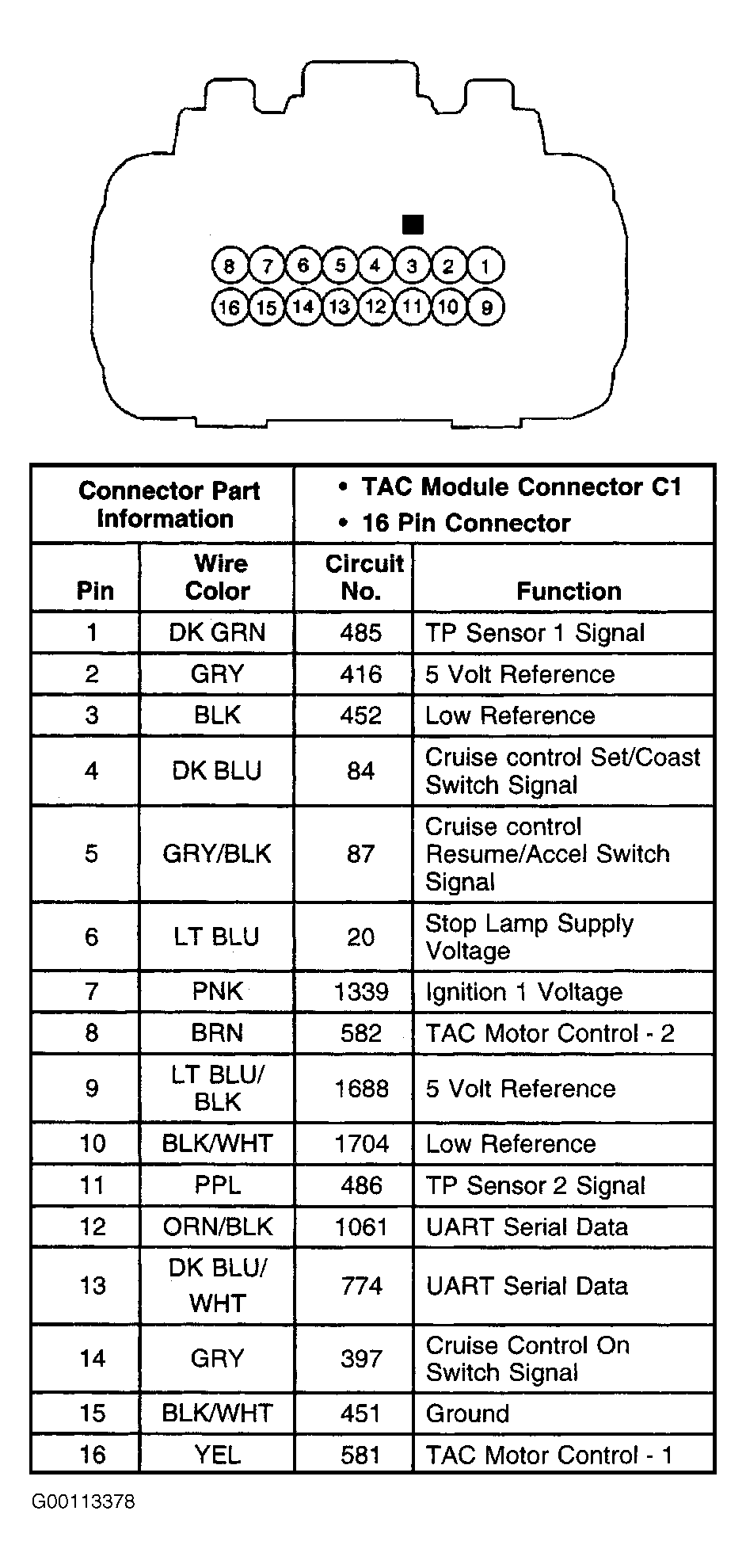

Fig 1: Identifying Throttle Actuator Control Module Connector End View C1
G00113378Courtesy of GENERAL MOTORS CORP.
