Identifying Throttle Actuator Control Module Connector End View C2

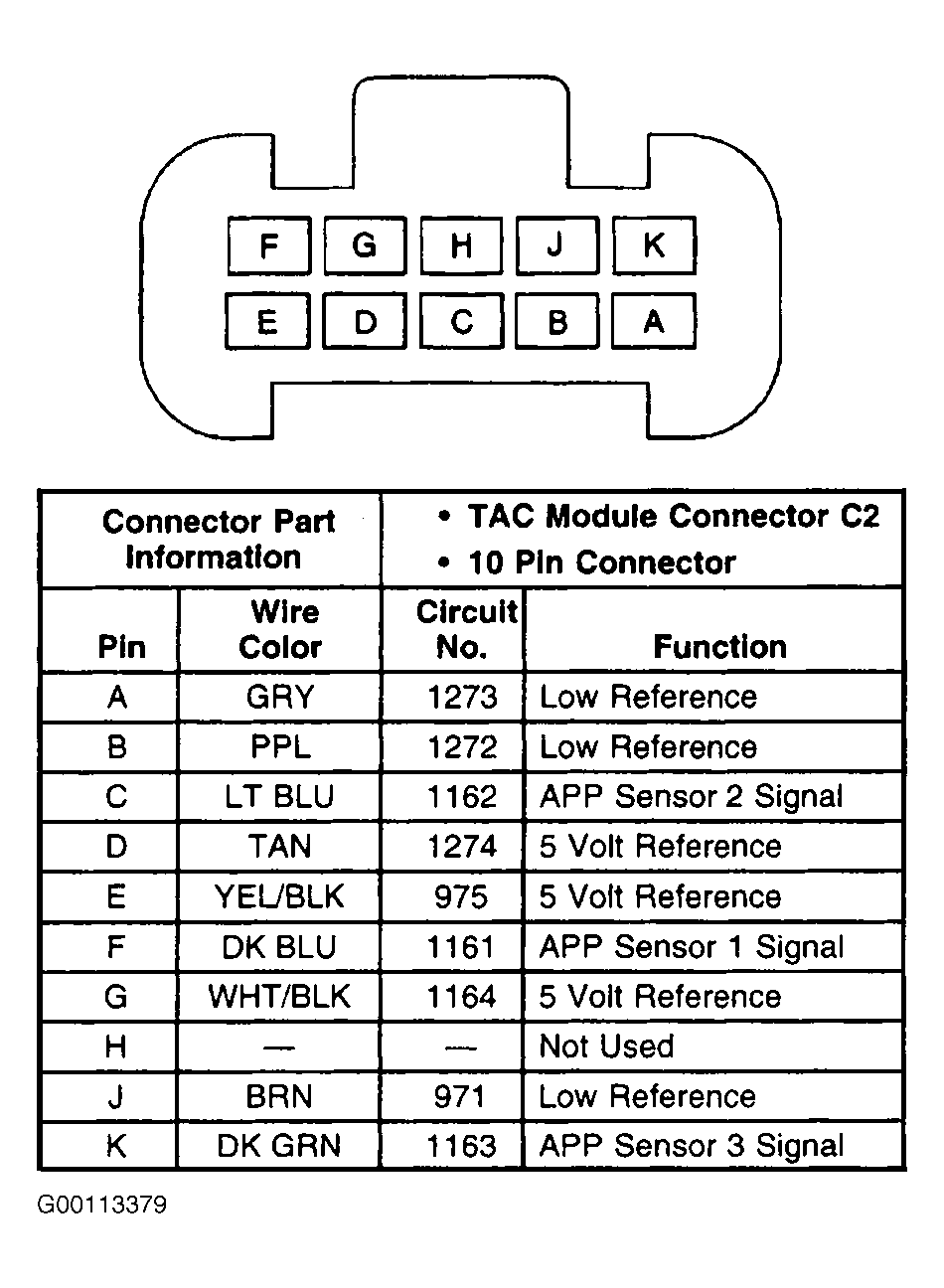

Fig 1: Identifying Throttle Actuator Control Module Connector End View C2
G00113379Courtesy of GENERAL MOTORS CORP.
