Inverting Driver Module Connector End View

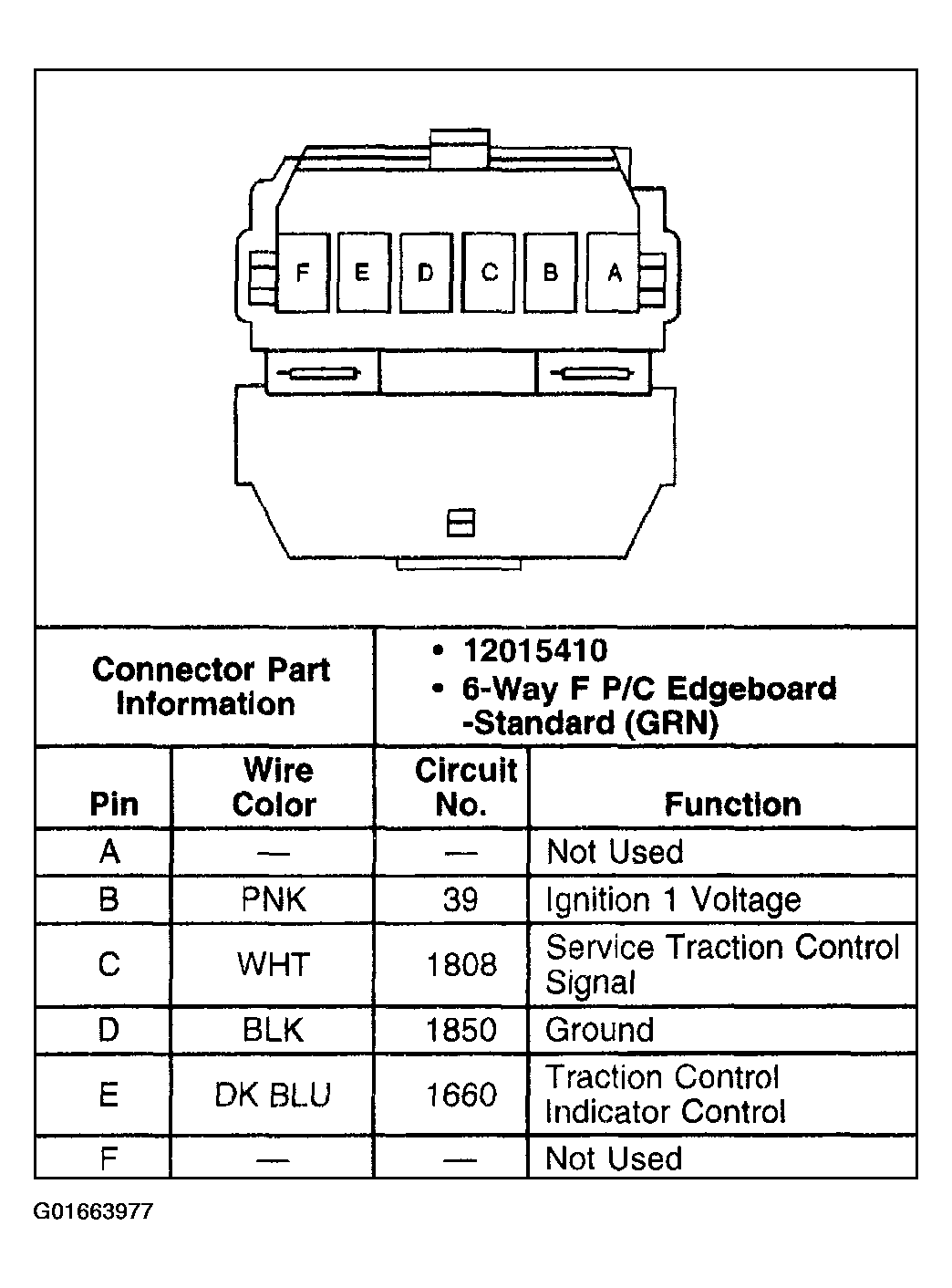

Fig 1: Inverting Driver Module Connector End View

G01663977

Courtesy of GENERAL MOTORS CORP.
