Fuel Level Specifications

The values in the table are approximate values based on information obtained from properly operating vehicles. Actual results may vary slightly.

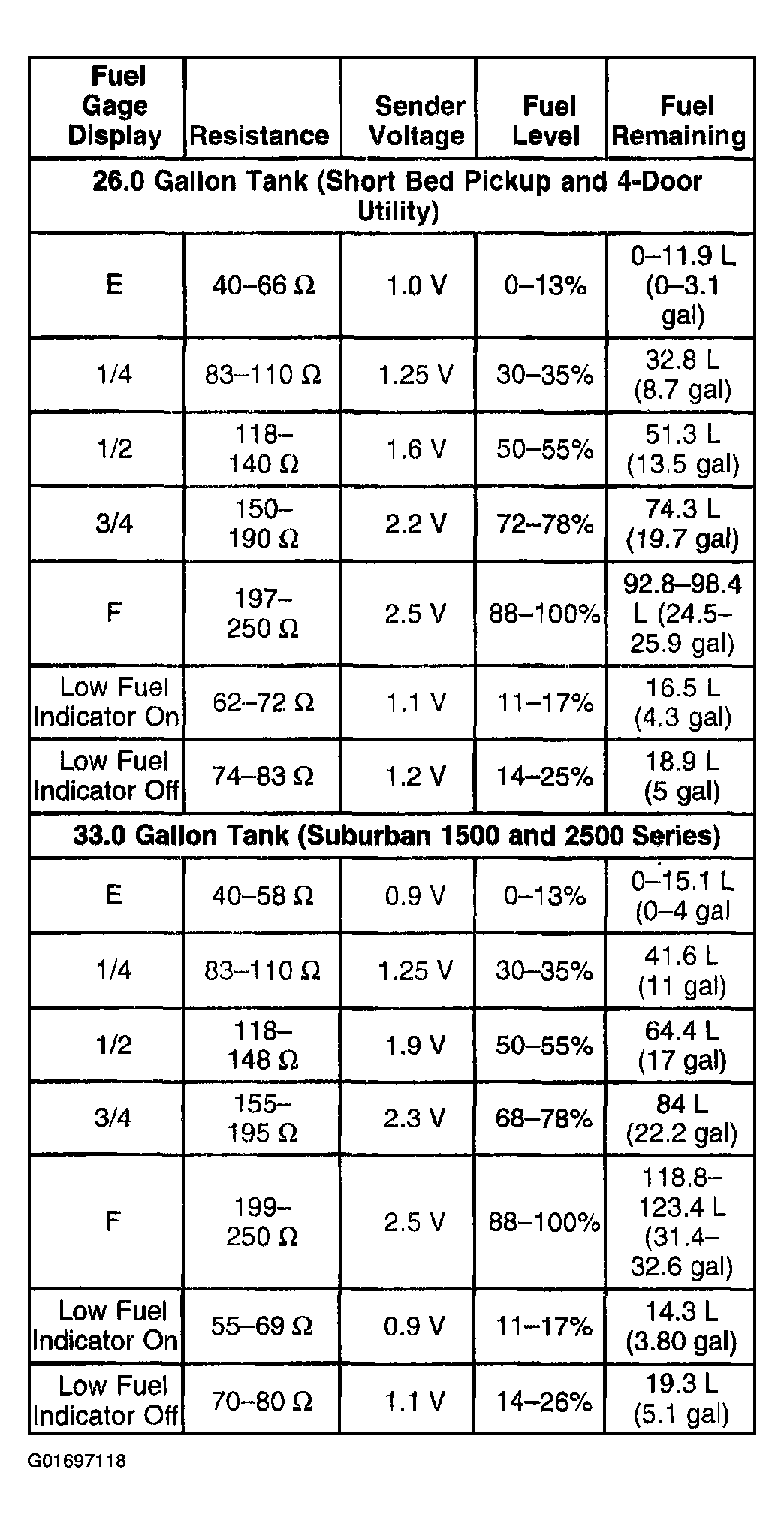

Fig 1: Fuel Level Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

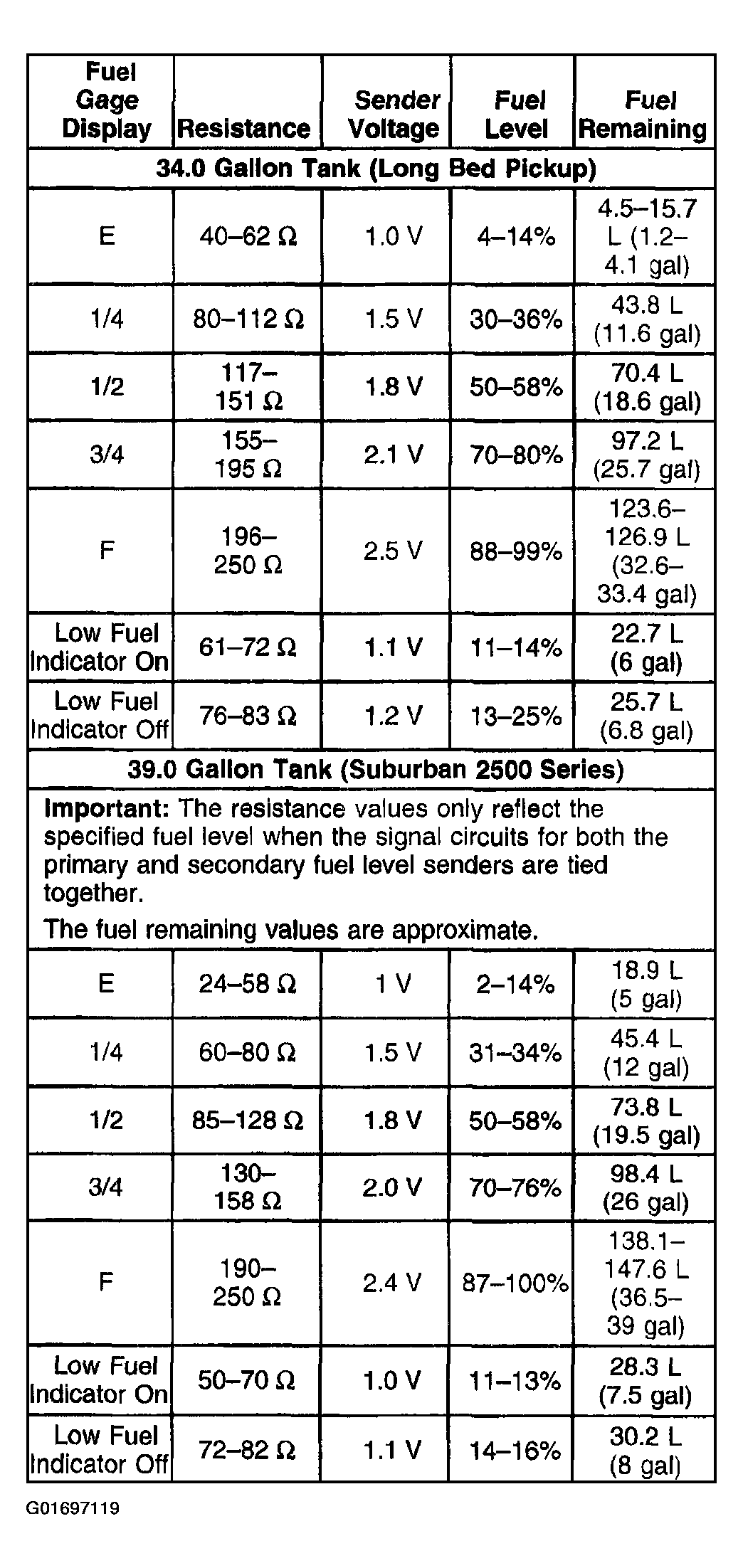

Fig 2: Fuel Level Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
