Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear bumper onto the vehicle.
Install the rear trailer hitch to bumper bolts (1), if equipped.

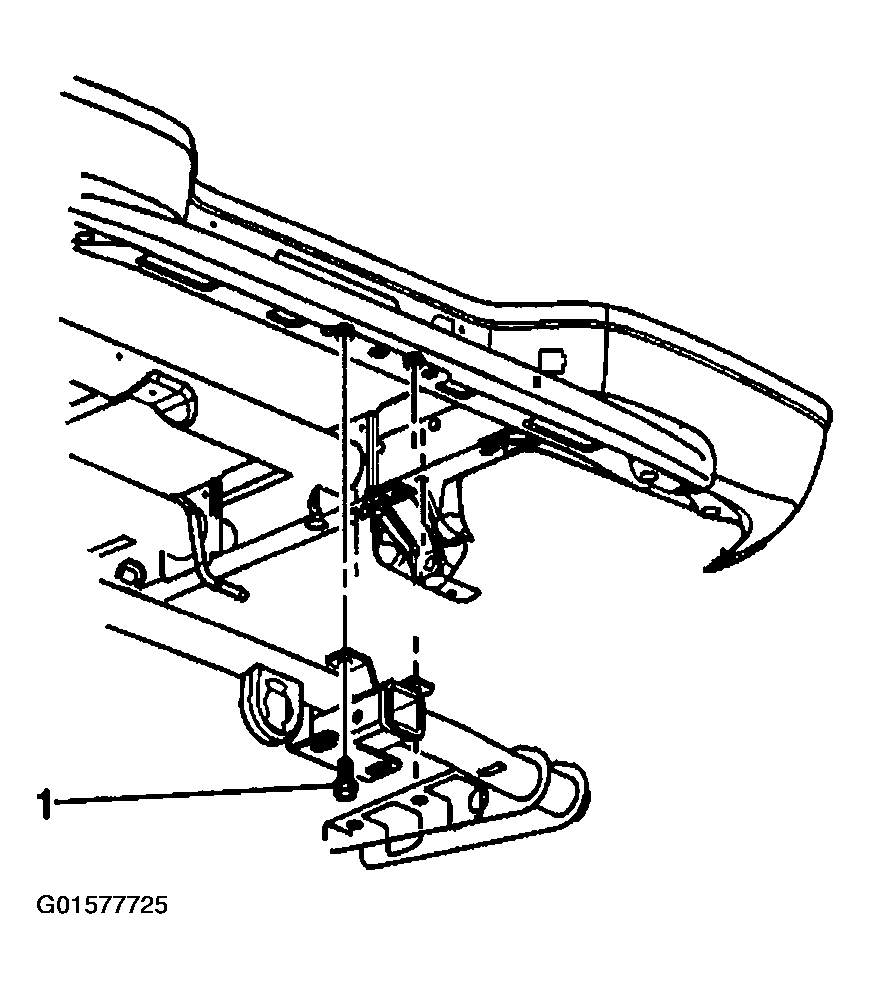

Fig 1: Rear Trailer Hitch To Bumper Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the impact bar nut (1).
Tighten

Tighten the impact bar nut (1) to 50 N.m (37 lb ft).
Install the plate nuts (2).
Tighten

Tighten the plate nuts (2) to 90 N.m (66 lb ft).

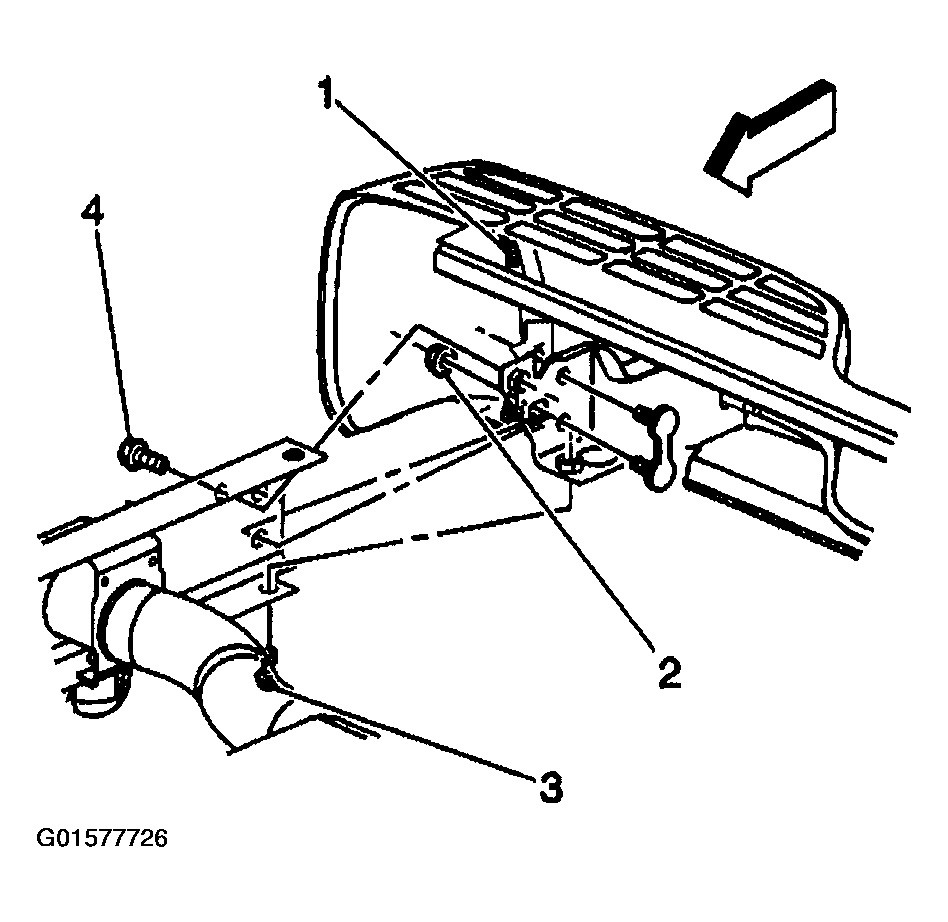

Fig 2: Installing Impact Bar Nut & Plate Nuts
Courtesy of GENERAL MOTORS CORP.
Install the lower frame rail to bracket bolt (3).
Tighten

Tighten the lower frame rail to bracket bolt (3) to 100 N.m (74 lb ft).
Install the side frame rail to bracket bolt (4).
Tighten

Tighten the side frame rail to bracket bolt (4) to 40 N.m (30 lb ft).
Install the bumper step pad. Refer to Step Pad Replacement-Rear Bumper .
Install the license plate lamp harness.

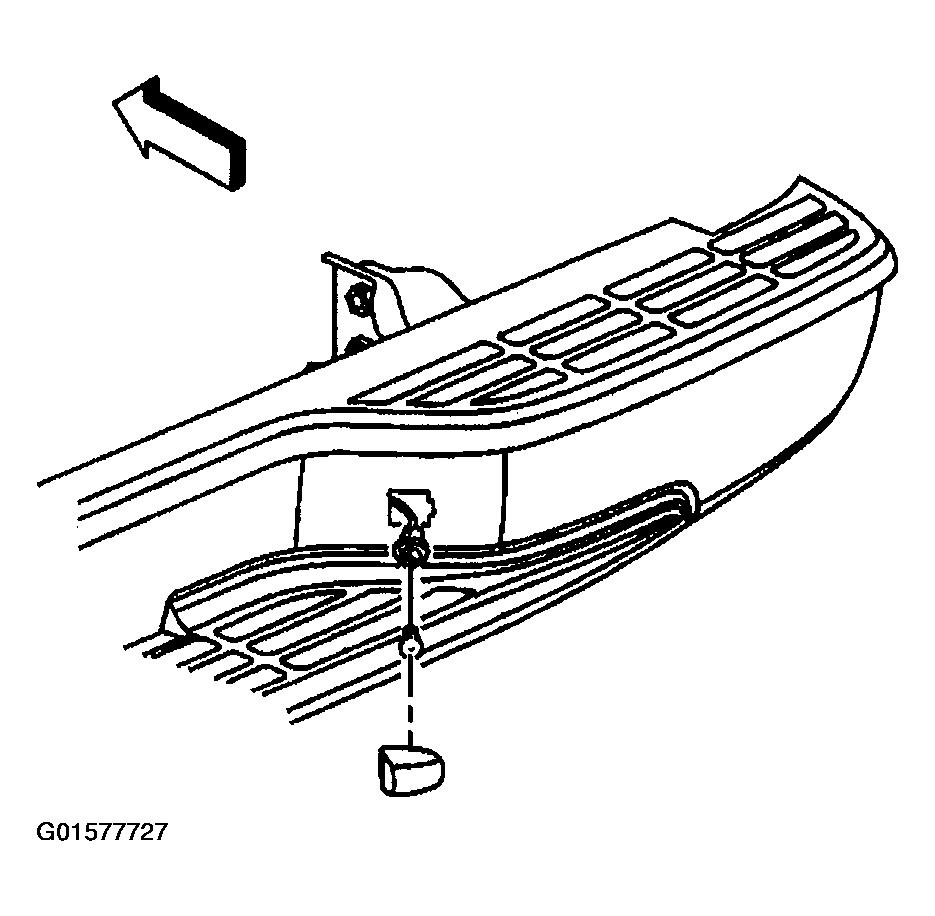

Fig 3: Installing License Plate Lamp Harness
Courtesy of GENERAL MOTORS CORP.
