Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bumper. Refer to Bumper Replacement-Rear   .
  2. Remove the side molding push-pins.
  3. Release the step pad from the bumper by prying up on the step pad.
  4. Remove the step pad.

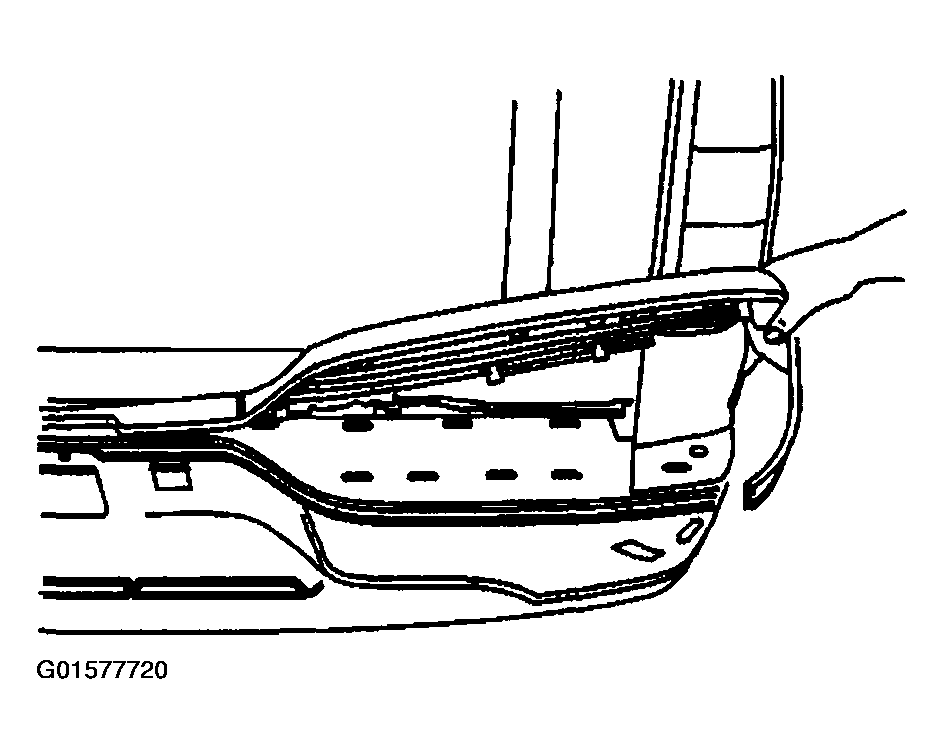

    Fig 1: Removing Rear Bumper Step Pad
    G01577720Courtesy of GENERAL MOTORS CORP.
