Automatic Level Control Suspension Component Views

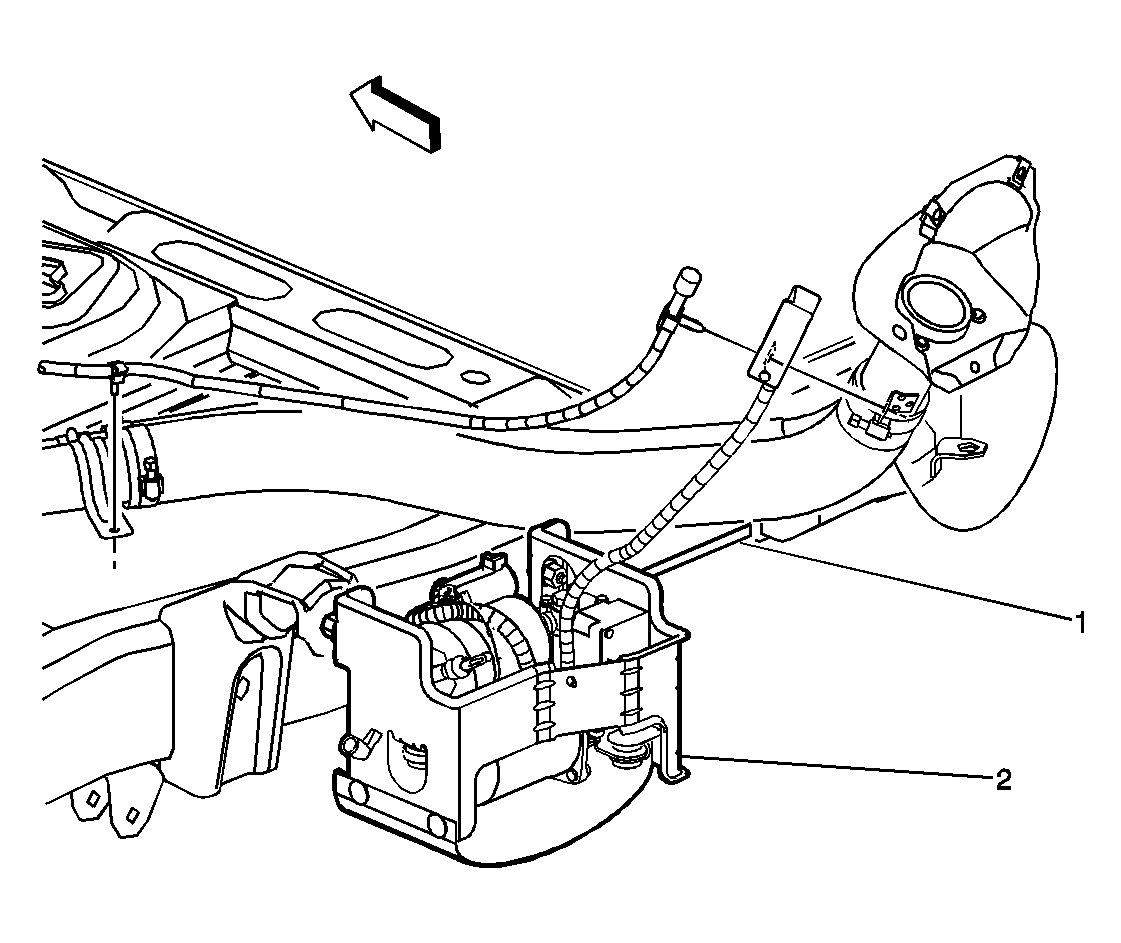

Fig 1: Rear Suspension Components - Automatic Level Control
GM746560Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Crossmember Frame
2 Automatic Level Control Compressor
