Installation Procedure

  1. Snap the jounce bumper to the mounting cup (4WD 15 Series and RWD 25 Series).

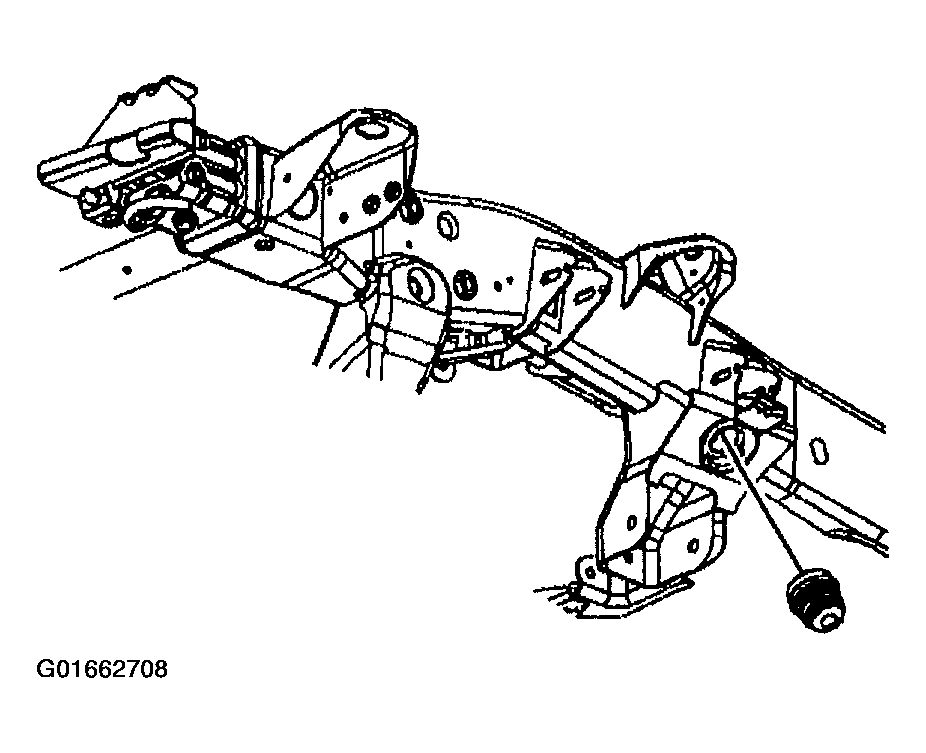

    Fig 1: Snapping Jounce Bumper (4WD 15 Series & RWD 25 Series)
    G01662708Courtesy of GENERAL MOTORS CORP.
  2. Install the jounce bumper (4WD 25 Series and RWD 15 Series).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the nut to the jounce bumper stud.

    Tighten

    Tighten the nut to 30 N.m (22 lb ft).

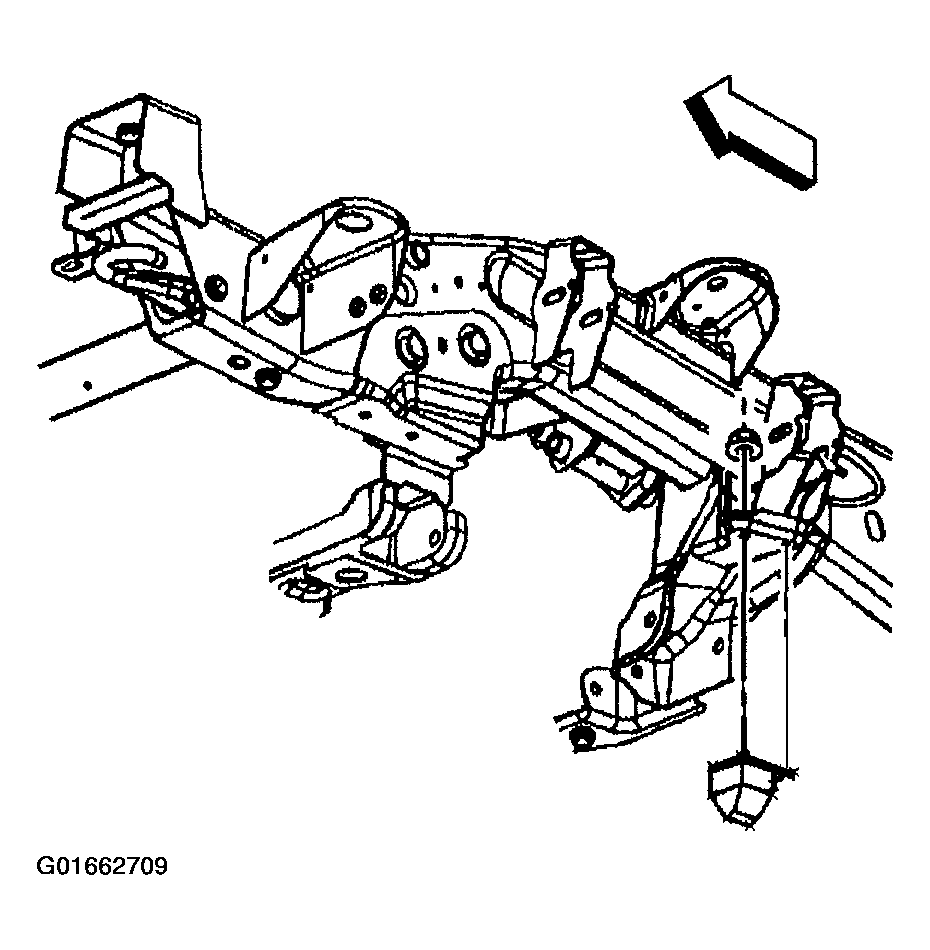

    4. Fig 2: Installing Nut From Jounce Bumper Stud (4WD 25 Series & RWD 15 Series)
    G01662709Courtesy of GENERAL MOTORS CORP.
  4. Remove the safety stands.
  5. Lower the vehicle.
