Body Control Module Connector End Views

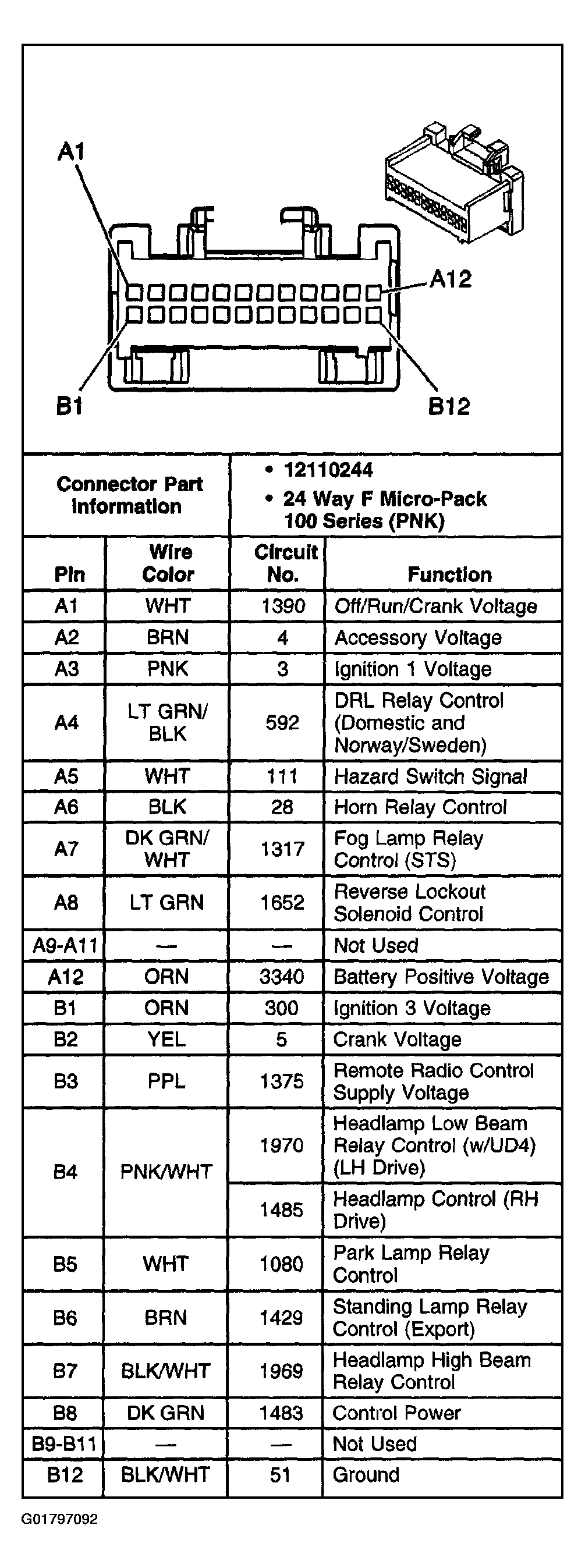

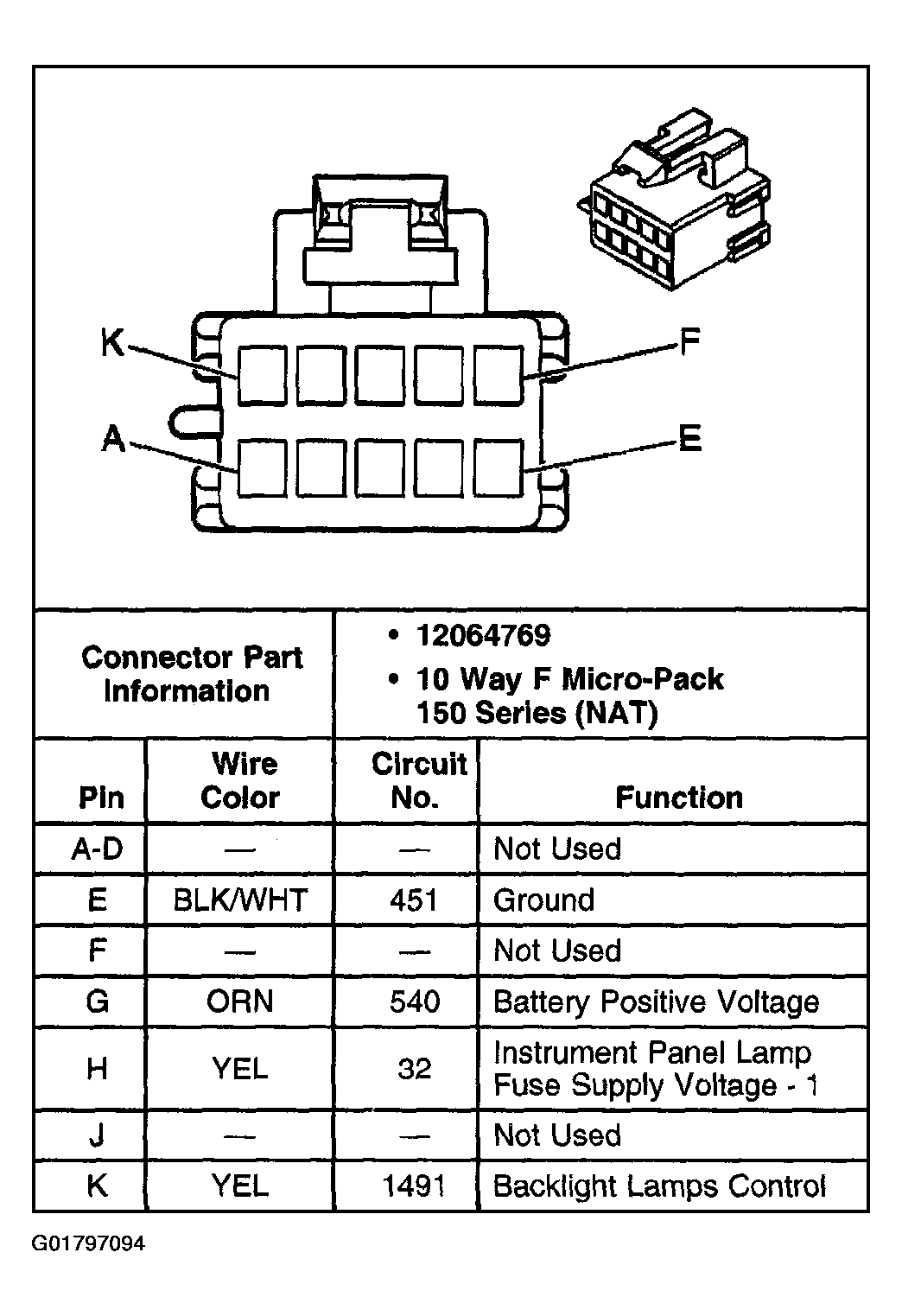

Fig 1: Dash Integration Module (DIM) C1

Courtesy of GENERAL MOTORS CORP.

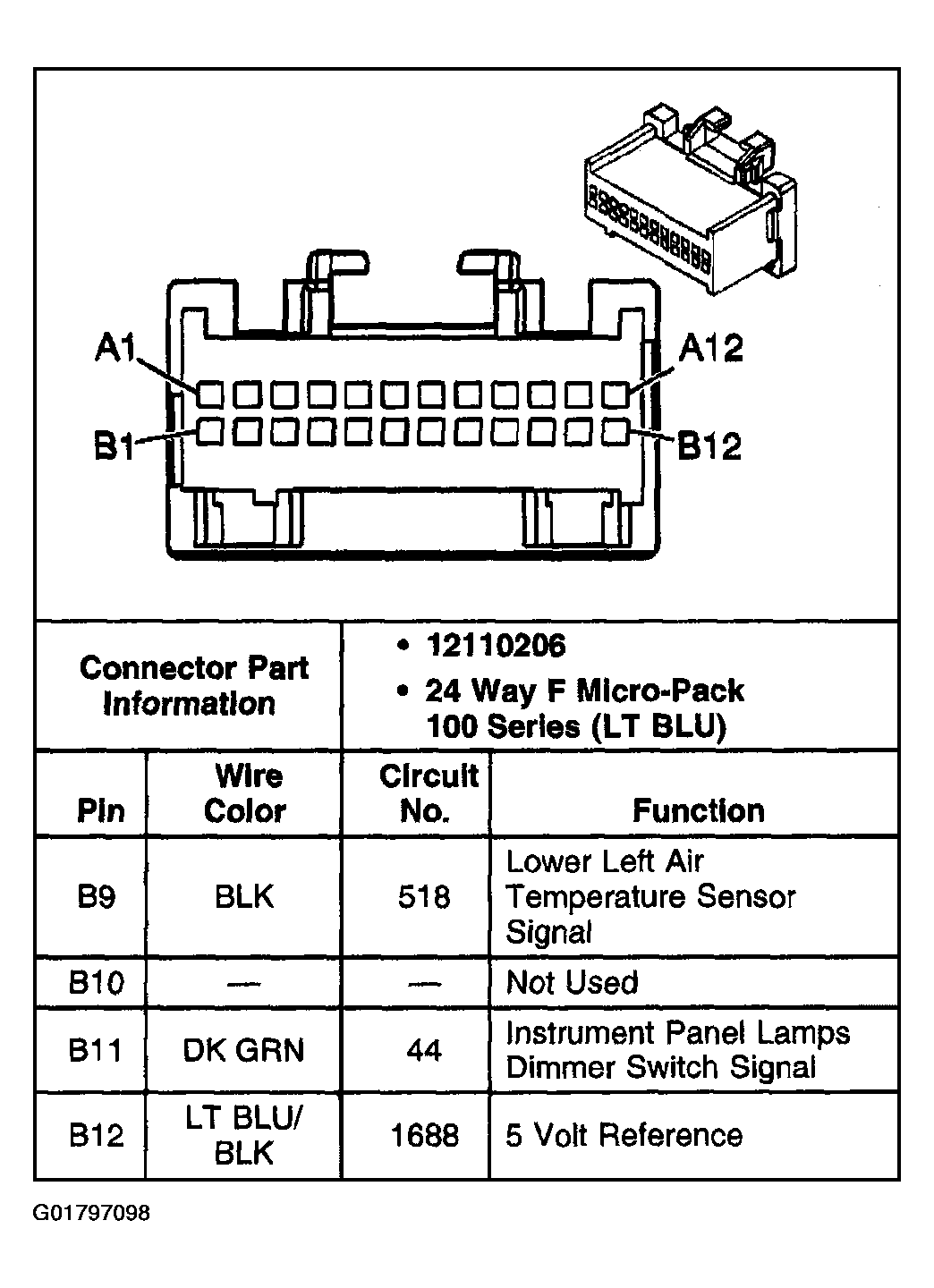

Fig 2: Dash Integration Module (DIM) C2

Courtesy of GENERAL MOTORS CORP.

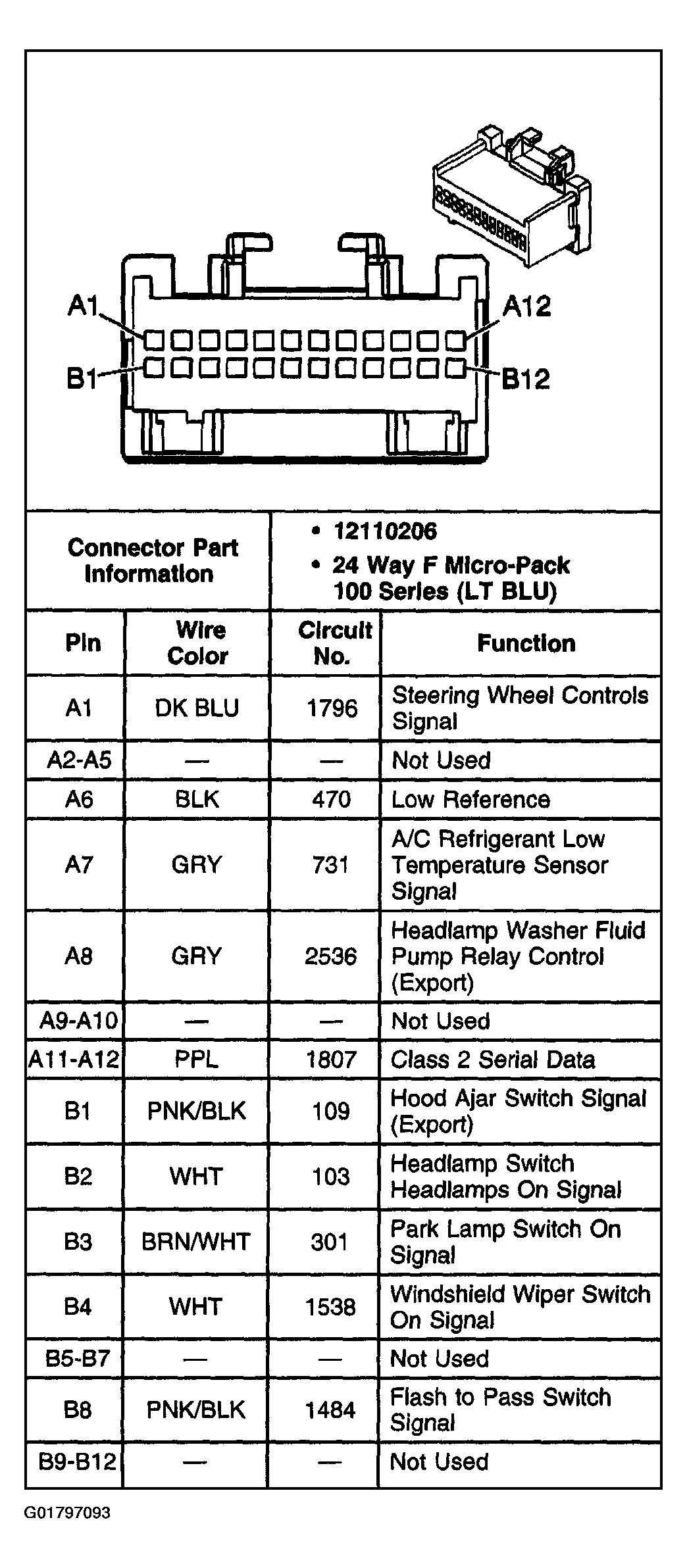

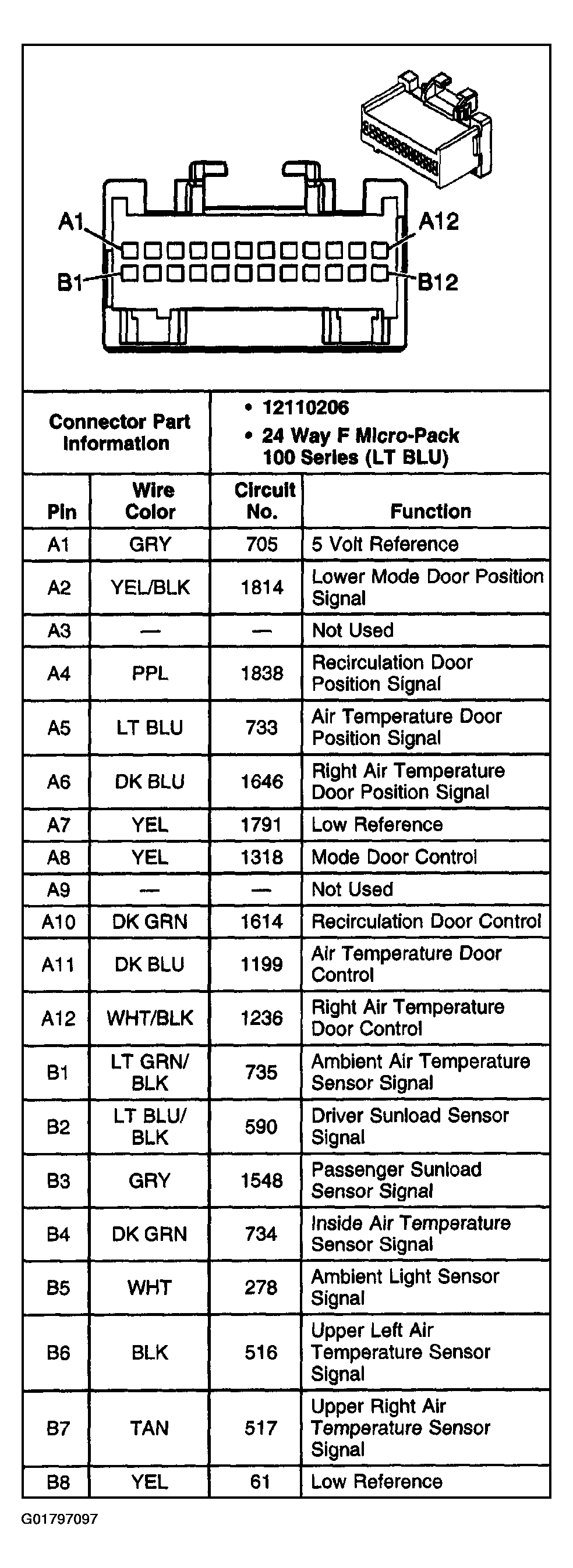

Fig 3: Dash Integration Module (DIM) C3

Courtesy of GENERAL MOTORS CORP.

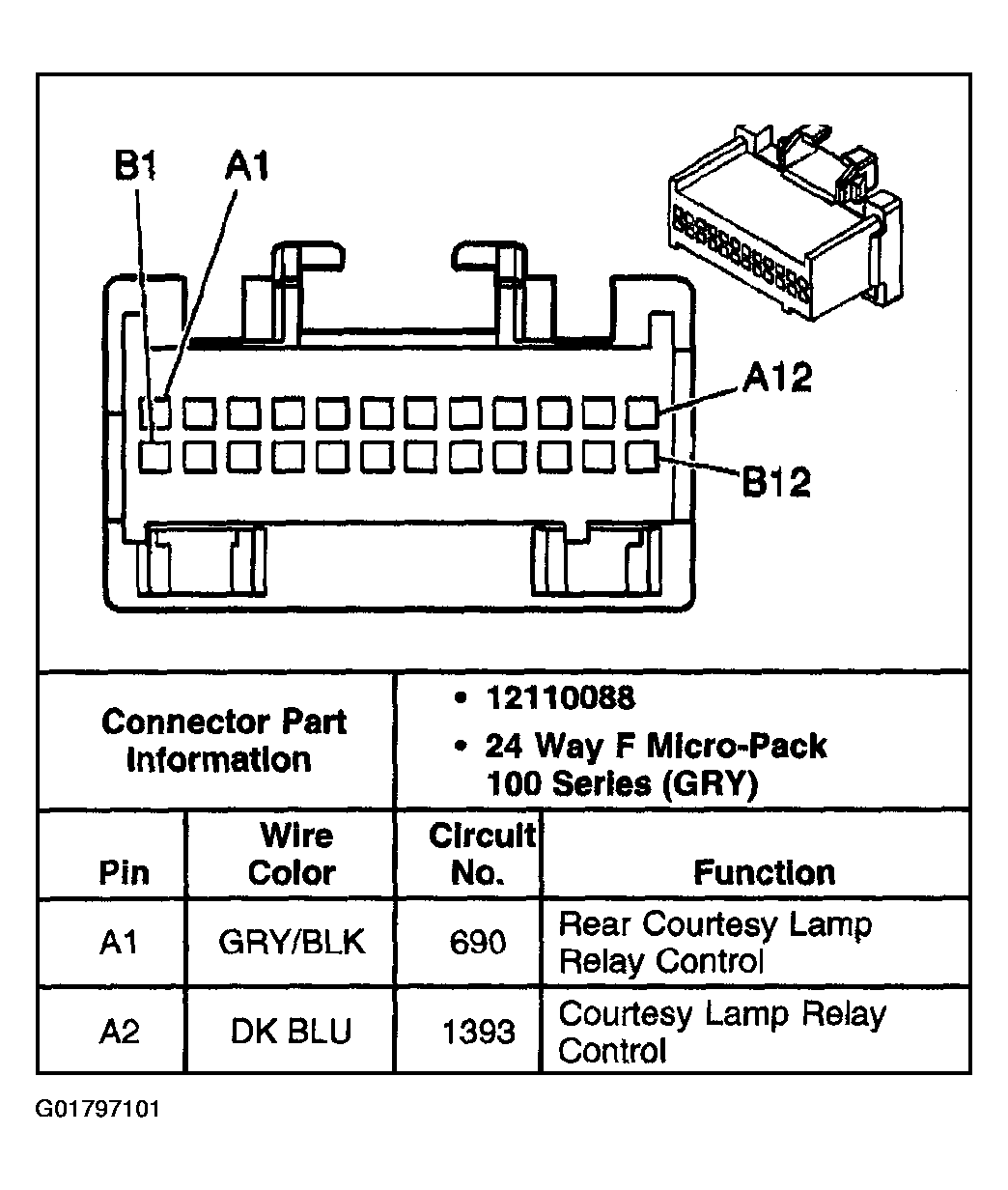

Fig 4: Instrument Panel Integration Module (IPM) C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

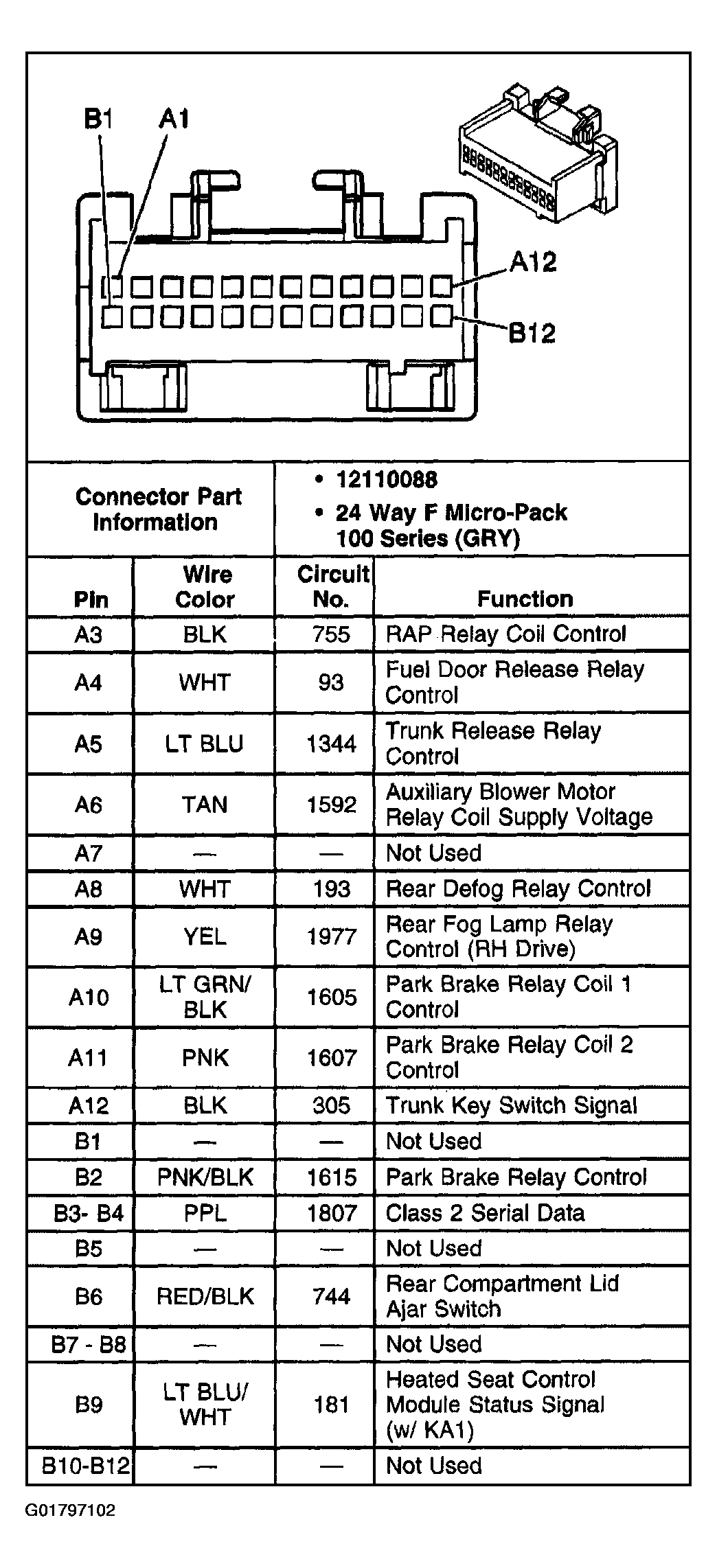

Fig 5: Instrument Panel Integration Module (IPM) C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

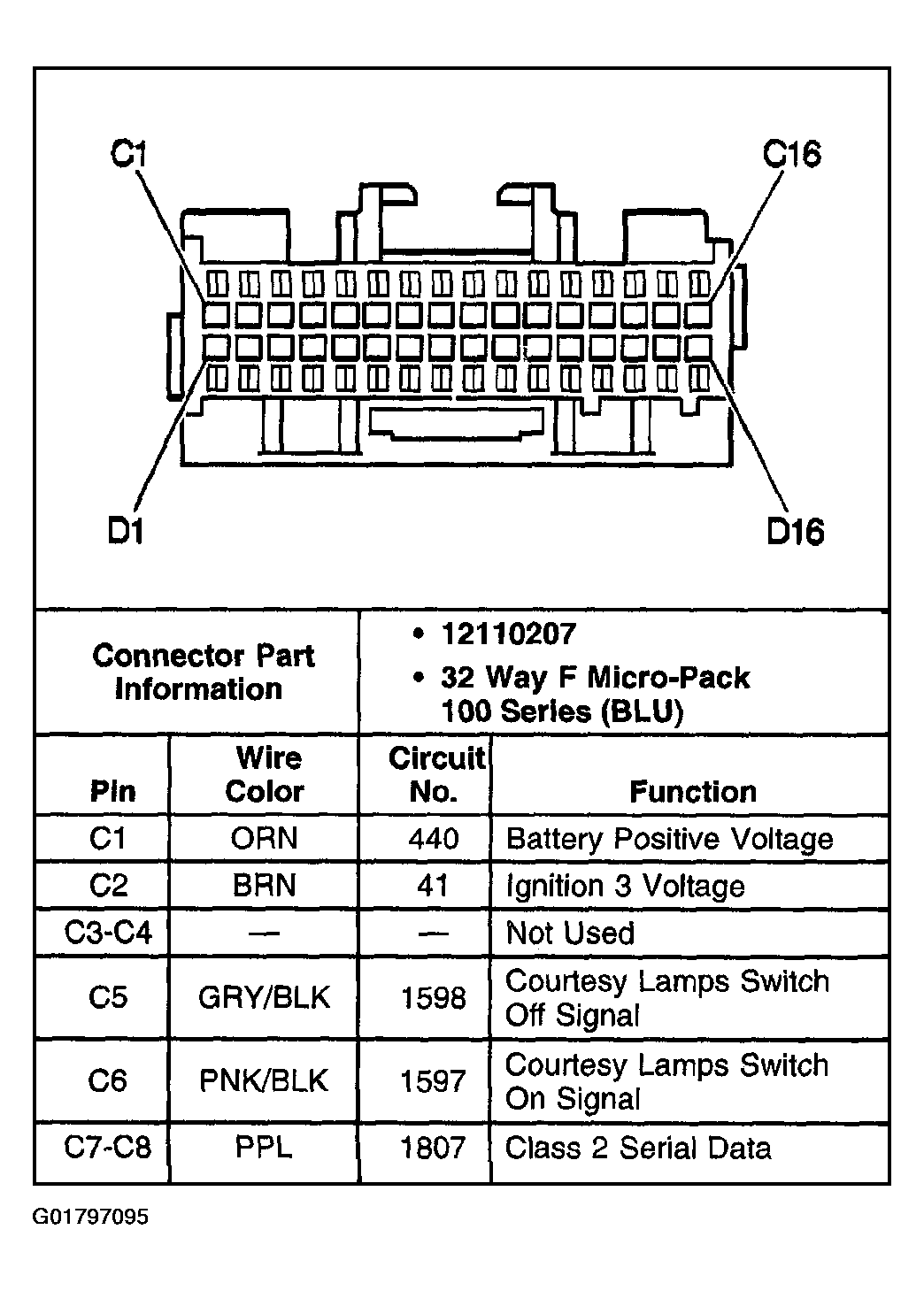

Fig 6: Instrument Panel Integration Module (IPM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

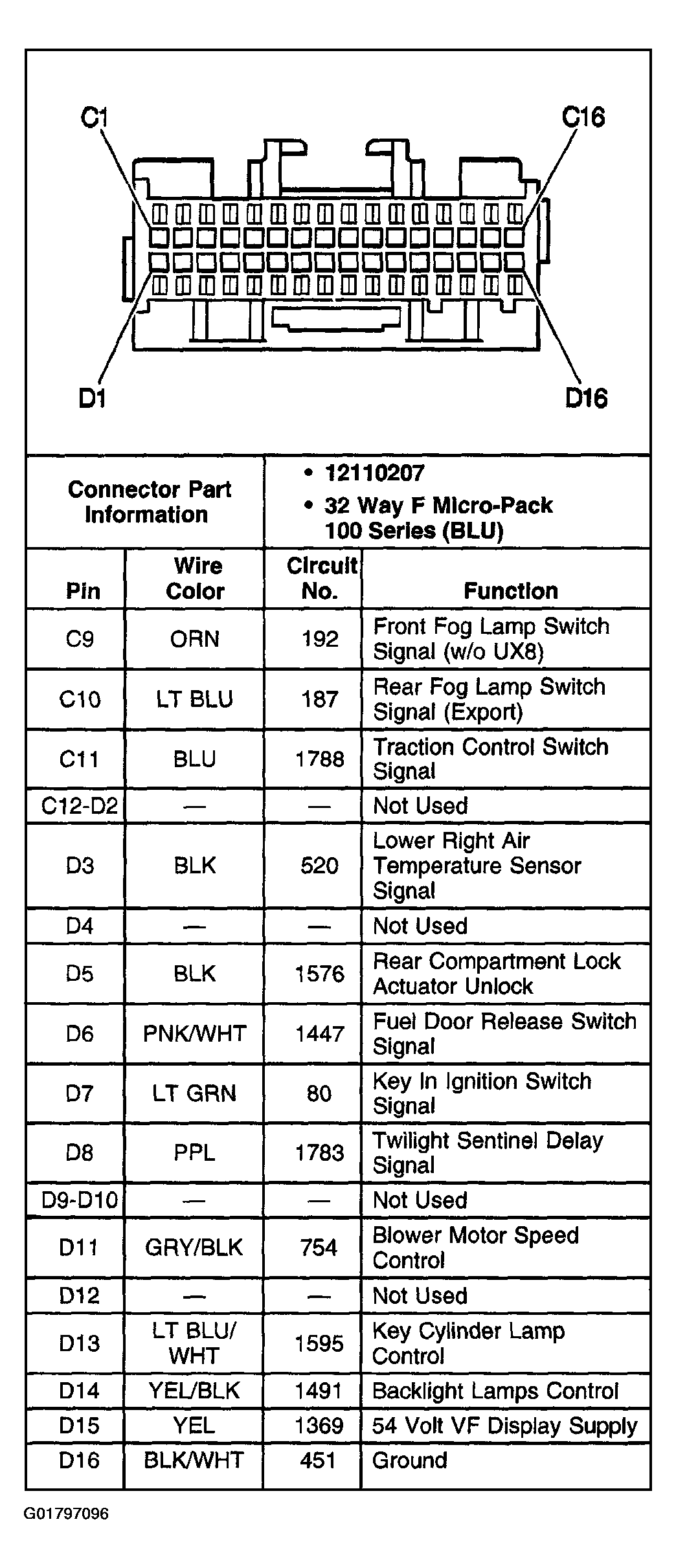

Fig 7: Instrument Panel Integration Module (IPM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

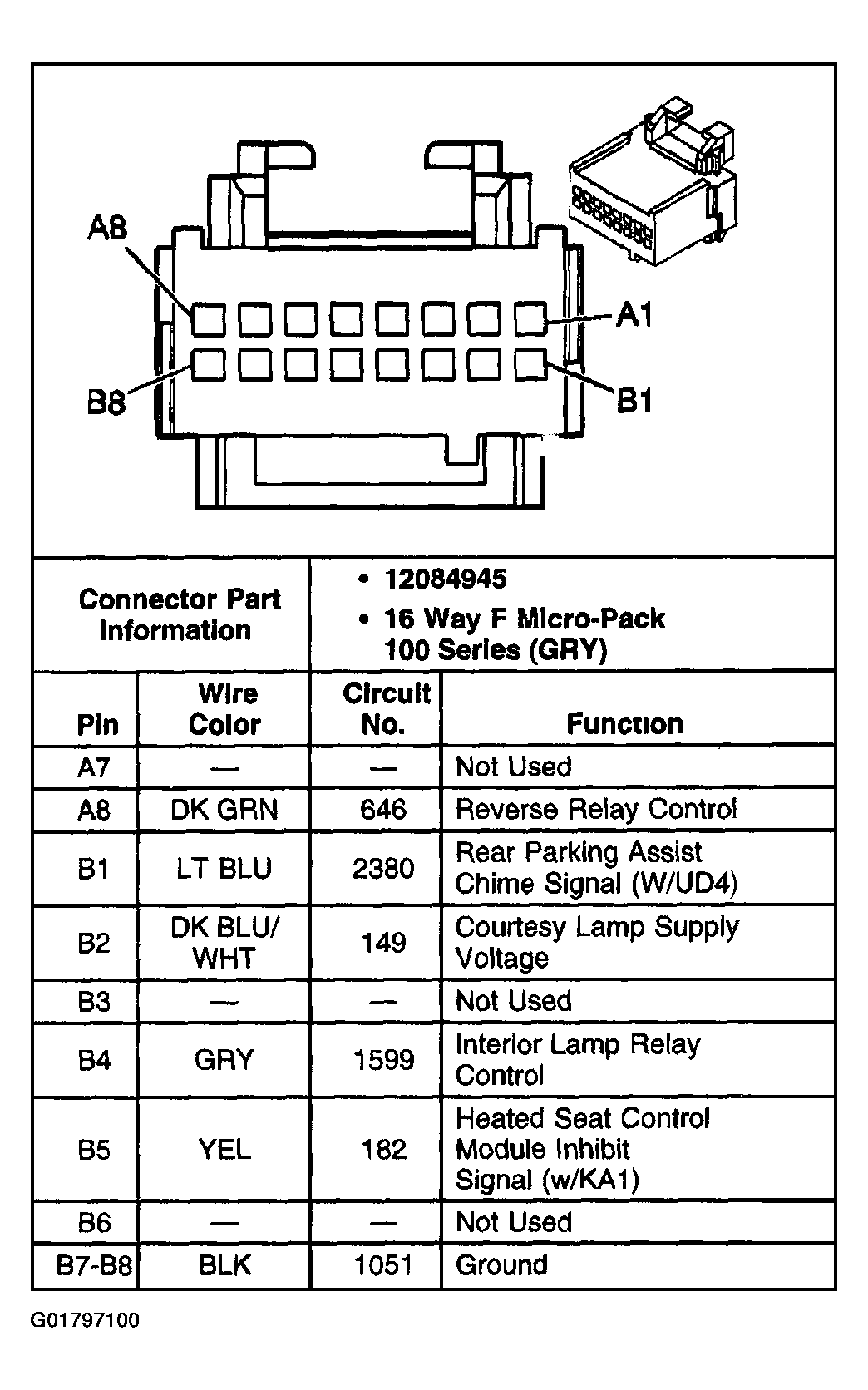

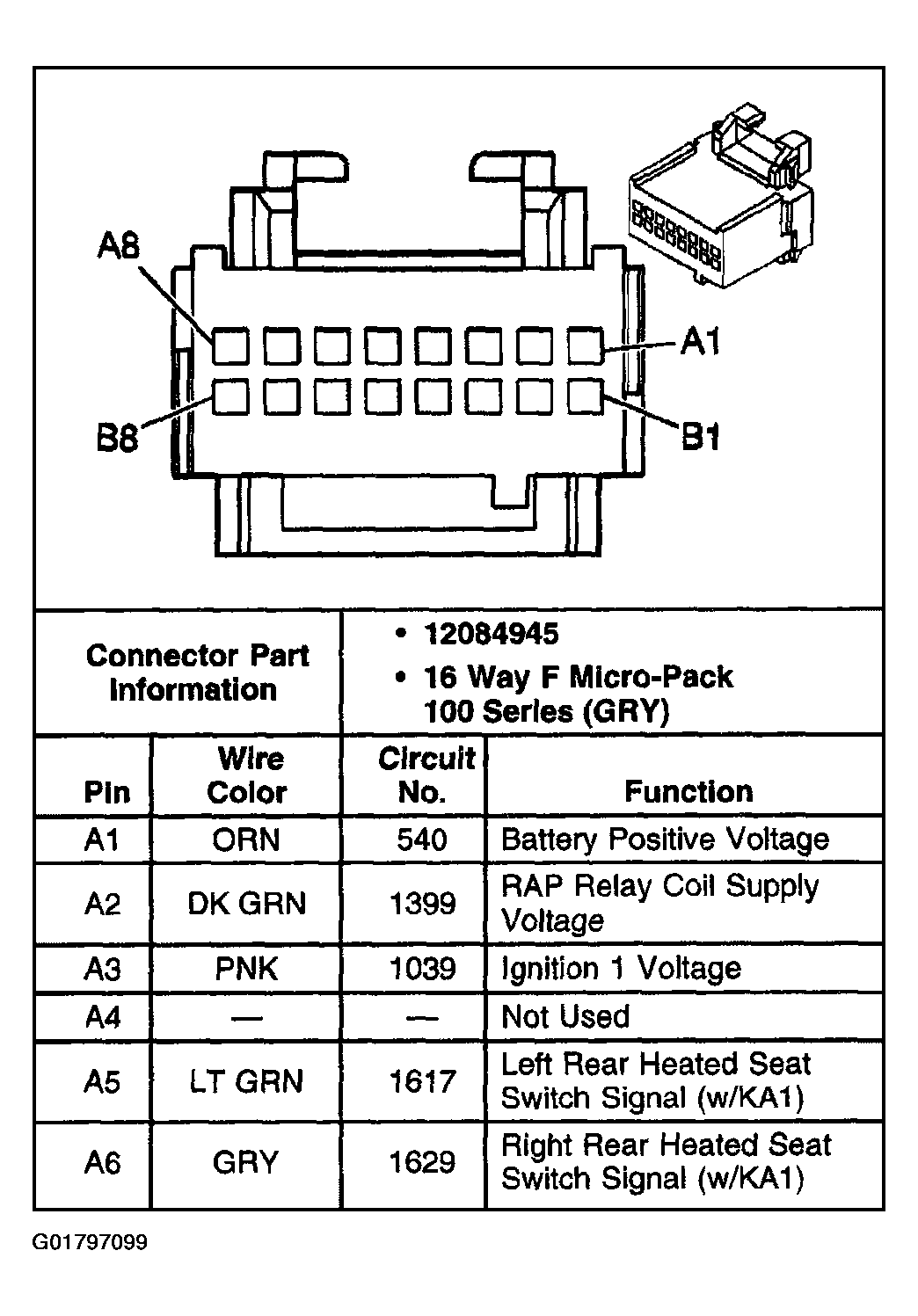

Fig 8: Rear Integration Module (RIM) C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Rear Integration Module (RIM) C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Rear Integration Module (RIM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Rear Integration Module (RIM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
