Cadillac
>>
2002
>>
Seville SLS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System
>>
Component Locator
>>
Keyless Entry Component Views
Keyless Entry Component Views

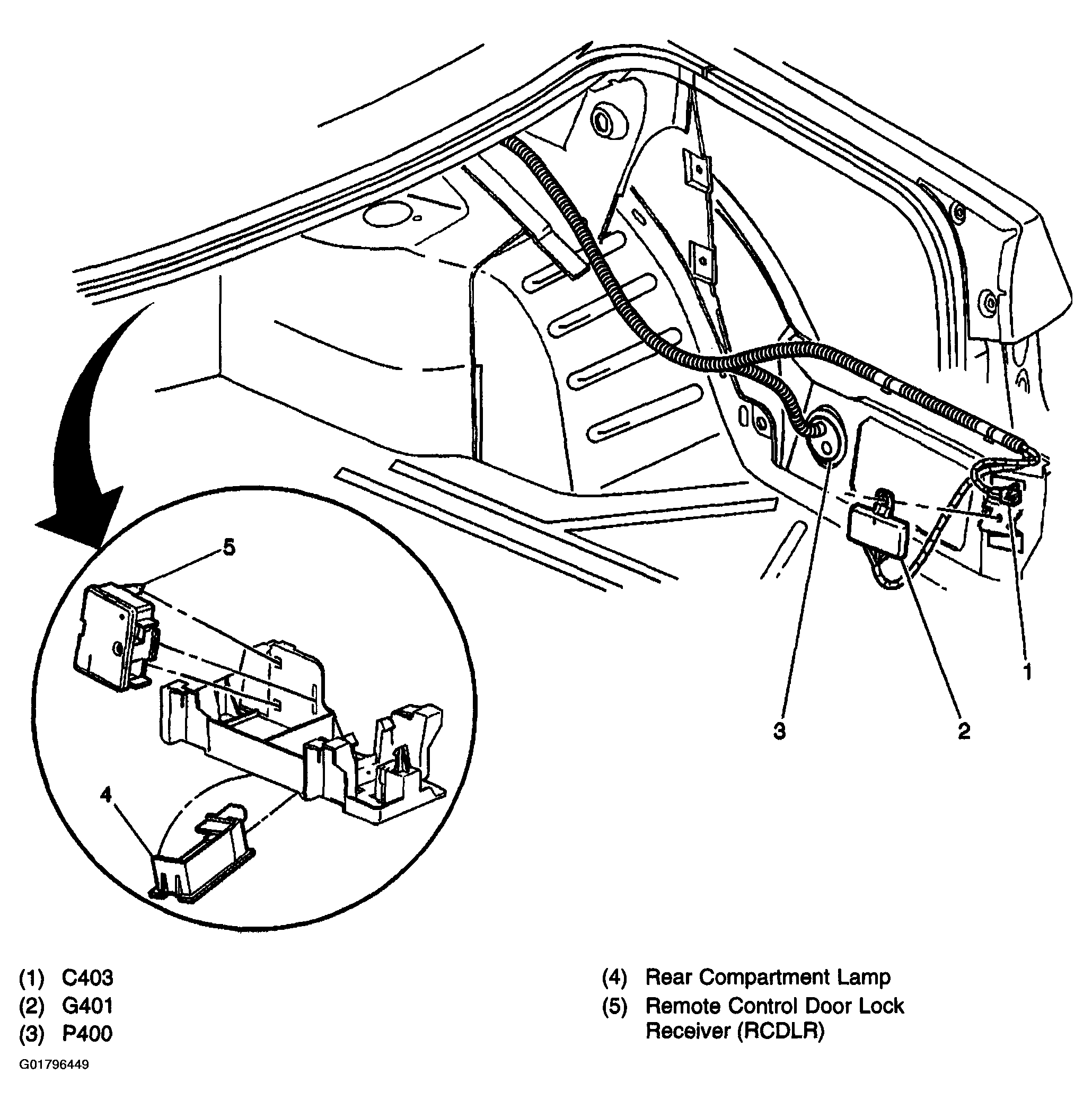

Fig 1: Locating RCDLR, Rear Comp Lamp, C403, G401 and P400
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
