Home >> Cadillac >> 2002 >> Seville SLS >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Repair Instructions >> Lateral Accelerometer Replacement >> Removal Procedure

Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  3. Remove the 2 lateral accelerometer sensor mounting nuts.
  4. Disconnect the lateral accelerometer sensor electrical connector (2).
  5. Remove the lateral accelerometer sensor (1) from the mounting studs.

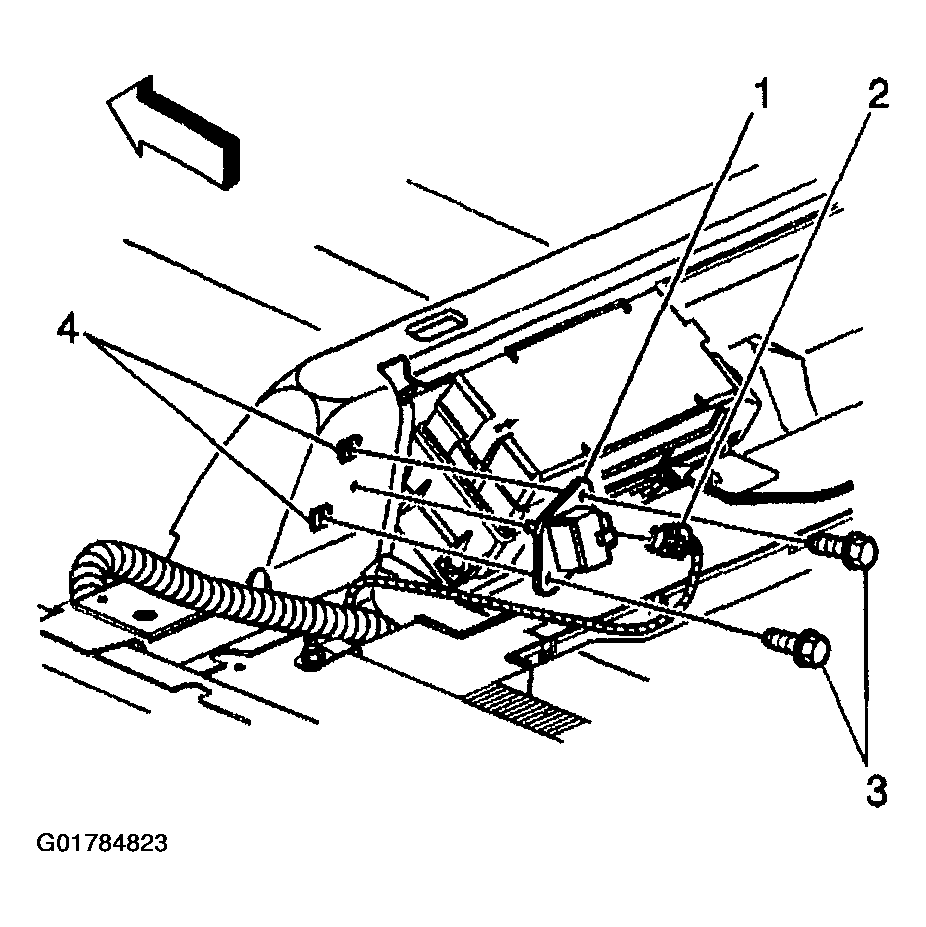

Fig 1: Removing Lateral Accelerometer Sensor
G01784823Courtesy of GENERAL MOTORS CORP.
