Home >> Cadillac >> 2002 >> Seville SLS >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Repair Instructions >> Traction Control Switch Replacement >> Removal Procedure

Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the console trim plate (1). Refer to TRIM PLATE REPLACEMENT - CONSOLE .
  3. Remove the traction control switch mounting screws.
  4. Remove the traction control switch (2) from the trim plate.

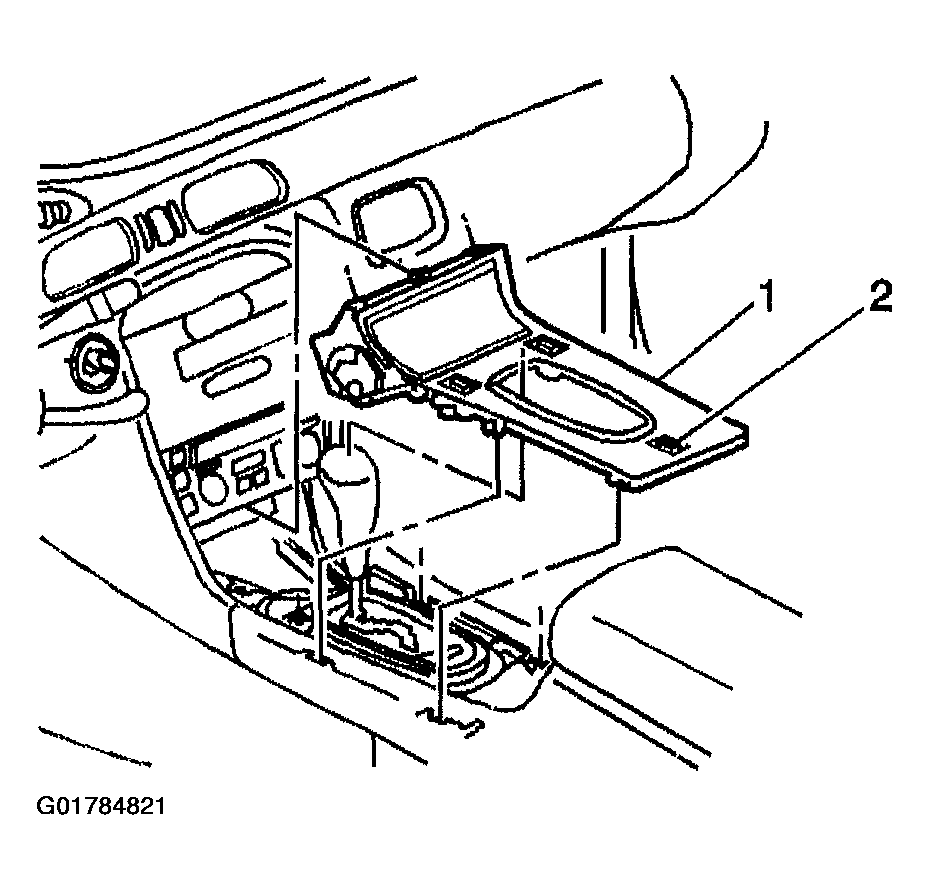

Fig 1: Removing Traction Control Switch
G01784821Courtesy of GENERAL MOTORS CORP.
